Introduction

Evaporation boat sources are used in thermal evaporation systems and suitable for depositing a wide variety of metals, alloys, and materials. The evaporation boat sources are available of tungsten, tantalum, and molybdenum and in different thicknesses to ensure compatibility with a range of power sources. Benefits are ease of use, repeatability, low cost, long life, high evaporation rates with larger amounts of materials. The trough or dimple in the boats is to be loaded with small material pieces which make relatively good contact with the evaporation boat source. The evaporation boat sources are designed to form the hot zone in the middle (where the trough or dimple is); some evaporation boats include an isolated hot zone with truncated connection lugs. The evaporation boat sources can be loaded with more material than a coiled evaporation filament or basket. Evaporation boats can be used for upwards evaporation only. If wetting or alloying with the metal evaporation boats is expected, consider using the Aluminum oxide coated boats or select a suitable crucible with a crucible heater. Evaporation boat sources are suitable for:

  • Thin film thermal evaporation processes for metalising surfaces
  • Production cycles with small to large amounts of evaporant
  • A wide variety of materials
  • Medium and high rated power sources
  • R & D and product development applications
  • Sample preparation applications

Overview

Order information RD Mathis metal evaporation boat sources.


*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Evaporation boat S1, raised middle part with 3mm deep trough, 102mm L x 19mm W
Evaporation boat S1, raised middle part with 3mm deep trough, 102mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S1W-1 Evaporation source S1, 0.13mm T Tungsten, 2.25 Volts, 101 Amps, 227 Watts, 1800⁰ C Temp
Qty:

pkg/5 €68,00
72-S1W-2 Evaporation source S1, 0.25mm T Tungsten, 1.79 Volts, 144 Amps, 258 Watts, 1800⁰ C Temp
Qty:

pkg/5 €98,30
72-S1W-3 Evaporation source S1, 0.38mm T Tungsten, 1.50 Volts, 184 Amps, 276 Watts, 1800⁰ C Temp
Qty:

pkg/5 €109,60
72-S1Ta-1 Evaporation source S1, 0.13mm T Tantalum, 2.72 Volts, 64 Amps, 174 Watts, 1600⁰ C Temp
Qty:

pkg/5 €179,60
72-S1Ta-2 Evaporation source S1, 0.25mm T Tantalum, 1.91 Volts, 96 Amps, 183 Watts, 1600⁰ C Temp
Qty:

pkg/5 €226,80
72-S1Mo-1 Evaporation source S1, 0.13mm T Molybdenum, 1.29 Volts, 63 Amps, 81 Watts, 1400⁰ C Temp
Qty:

pkg/5 €56,70
72-S1Mo-2 Evaporation source S1, 0.25mm T Molybdenum, 0.96 Volts, 96 Amps, 92 Watts, 1400⁰ C Temp
Qty:

pkg/5 €65,20

Evaporation boat S2A, raised middle part with 3mm deep dimple, 89mm L x 12.7mm W
Evaporation boat S2A, raised middle part with 3mm deep dimple, 89mm L x 12.7mm W
Product # Unit Price* Add to Quote / Order
72-S2AW-1 Evaporation source S2A, 0.13mm T Tungsten, 3.85 Volts, 140 Amps, 539 Watts, 1800⁰ C Temp
Qty:

pkg/5 €47,30
72-S2AW-2 Evaporation source S2A, 0.25mm T Tungsten, 2.57 Volts, 185 Amps, 475 Watts, 1800⁰ C Temp
Qty:

pkg/5 €68,00
72-S2AW-3 Evaporation source S2A, 0.38mm T Tungsten, 2.20 Volts, 242 Amps, 532 Watts, 1800⁰ C Temp
Qty:

pkg/5 €87,90
72-S2ATa-1 Evaporation source S2A, 0.13mm T Tantalum, 3.37 Volts, 100 Amps, 337 Watts, 1600⁰ C Temp
Qty:

pkg/5 €88,80
72-S2ATa-2 Evaporation source S2A, 0.25mm T Tantalum, 2.27 Volts, 133 Amps, 302 Watts, 1600⁰ C Temp
Qty:

pkg/5 €141,80
72-S2AMo-1 Evaporation source S2A, 0.13mm T Molybdenum, 1.72 Volts, 86 Amps, 148 Watts, 1400⁰ C Temp
Qty:

pkg/5 €34,00
72-S2AMo-2 Evaporation source S2A, 0.25mm T Molybdenum, 1.13 Volts, 130 Amps, 147 Watts, 1400⁰ C Temp
Qty:

pkg/5 €40,60

Evaporation boat S2B, lowered middle part with 3mm deep dimple, 89mm L x 12.7mm W
Evaporation boat S2B, lowered middle part with 3mm deep dimple, 89mm L x 12.7mm W
Product # Unit Price* Add to Quote / Order
72-S2BW-1 Evaporation source S2B, 0.13mm T Tungsten, 3.87 Volts, 140 Amps, 542 Watts, 1800⁰ C Temp
Qty:

pkg/5 €47,30
72-S2BW-2 Evaporation source S2B, 0.25mm T Tungsten, 2.58 Volts, 187 Amps, 482 Watts, 1800⁰ C Temp
Qty:

pkg/5 €68,00
72-S2BW-3 Evaporation source S2B, 0.38mm T Tungsten, 2.06 Volts, 245 Amps, 505 Watts, 1800⁰ C Temp
Qty:

pkg/5 €87,90
72-S2BTa-1 Evaporation source S2B, 0.13mm T Tantalum, 3.42 Volts, 97 Amps, 332 Watts, 1600⁰ C Temp
Qty:

pkg/5 €94,50
72-S2BTa-2 Evaporation source S2B, 0.25mm T Tantalum, 2.33 Volts, 130 Amps, 303 Watts, 1600⁰ C Temp
Qty:

pkg/5 €141,80
72-S2BMo-1 Evaporation source S2B, 0.13mm T Molybdenum, 1.15 Volts, 119 Amps, 137 Watts, 1400⁰ C Temp
Qty:

pkg/5 €34,00
72-S2BMo-2 Evaporation source S2B, 0.25mm T Molybdenum, 1.10 Volts, 131 Amps, 144 Watts, 1400⁰ C Temp
Qty:

pkg/5 €40,60

Evaporation boat S3, lowered middle part with 19x6.3x3mm trough, 89mm L x 19mm W
Evaporation boat S3, lowered middle part with 19x6.3x3mm trough, 89mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S3W-1 Evaporation source S3, 0.13mm T Tungsten, 1.95 Volts, 100 Amps, 195 Watts, 1800⁰ C Temp
Qty:

pkg/5 €59,50
72-S3W-2 Evaporation source S3, 0.25mm T Tungsten, 1.47 Volts, 158 Amps, 232 Watts, 1800⁰ C Temp
Qty:

pkg/5 €79,40
72-S3W-3 Evaporation source S3, 0.38mm T Tungsten, 1.96 Volts, 130 Amps, 255 Watts, 1800⁰ C Temp
Qty:

pkg/5 €92,60
72-S3Ta-1 Evaporation source S3, 0.13mm T Tantalum, 2.04 Volts, 64 Amps, 131 Watts, 1600⁰ C Temp
Qty:

pkg/5 €119,10
72-S3Ta-2 Evaporation source S3, 0.25mm T Tantalum, 1.44 Volts, 92 Amps, 132 Watts, 1600⁰ C Temp
Qty:

pkg/5 €160,70
72-S3Mo-1 Evaporation source S3, 0.13mm T Molybdenum, 0.98 Volts, 64 Amps, 63 Watts, 1400⁰ C Temp
Qty:

pkg/5 €44,40
72-S3Mo-2 Evaporation source S3, 0.25mm T Molybdenum, 0.77 Volts, 105 Amps, 79 Watts, 1400⁰ C Temp
Qty:

pkg/5 €55,80

Evaporation boat S4, lowered middle part with 38x6.3x3mm trough, 102mm L x 19mm W
Evaporation boat S4, lowered middle part with 38x6.3x3mm trough, 102mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S4W-1 Evaporation source S4, 0.13mm T Tungsten, 2.76 Volts, 96 Amps, 265 Watts, 1800⁰ C Temp
Qty:

pkg/5 €65,20
72-S4W-2 Evaporation source S4, 0.25mm T Tungsten, 2.03 Volts, 138 Amps, 280 Watts, 1800⁰ C Temp
Qty:

pkg/5 €93,60
72-S4W-3 Evaporation source S4, 0.38mm T Tungsten, 1.51 Volts, 191 Amps, 288 Watts, 1800⁰ C Temp
Qty:

pkg/5 €110,60
72-S4Ta-1 Evaporation source S4, 0.13mm T Tantalum, 2.62 Volts, 64 Amps, 168 Watts, 1600⁰ C Temp
Qty:

pkg/5 €151,20
72-S4Ta-2 Evaporation source S4, 0.25mm T Tantalum, 1.83 Volts, 93 Amps, 170 Watts, 1600⁰ C Temp
Qty:

pkg/5 €207,90
72-S4Mo-1 Evaporation source S4, 0.13mm T Molybdenum, 1.31 Volts, 63 Amps, 83 Watts, 1400⁰ C Temp
Qty:

pkg/5 €47,30
72-S4Mo-2 Evaporation source S4, 0.25mm T Molybdenum, 0.97 Volts, 93 Amps, 90 Watts, 1400⁰ C Temp
Qty:

pkg/5 €66,20

Evaporation boat S5, folded, vertical with 9.5x 9.5mm opening, 102mm L x 12.7mm H
Evaporation boat S5, folded, vertical with 9.5x 9.5mm opening, 102mm L x 12.7mm H
Product # Unit Price* Add to Quote / Order
72-S5W-1 Evaporation source S5, 0.13mm T Tungsten, 3.18 Volts, 199 Amps, 633 Watts, 1800⁰ C Temp
Qty:

pkg/5 €73,70
72-S5Ta-1 Evaporation source S5, 0.13mm T Tantalum, 3.29 Volts, 149 Amps, 490 Watts, 1600⁰ C Temp
Qty:

pkg/5 €160,70
72-S5Ta-2 Evaporation source S5, 0.25mm T Tantalum, 2.09 Volts, 220Amps, 460 Watts, 1600⁰ C Temp
Qty:

pkg/5 €264,60
72-S5Mo-1 Evaporation source S5, 0.13mm T Molybdenum, 1.59 Volts, 133 Amps, 211 Watts, 1400⁰ C Temp
Qty:

pkg/5 €66,20
72-S5Mo-2 Evaporation source S5, 0.25mm T Molybdenum, 1.02 Volts, 208 Amps, 212 Watts, 1400⁰ C Temp
Qty:

pkg/5 €78,40

Evaporation boat S6 with 25.4 x 16 x 3mm trough, 76mm L x 19mm W
Evaporation boat S6 with 25.4 x 16 x 3mm trough, 76mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S6W-1 Evaporation source S6, 0.13mm T Tungsten, 3.04 Volts, 199 Amps, 605 Watts, 1800⁰ C Temp
Qty:

pkg/5 €52,90
72-S6W-2 Evaporation source S6, 0.25mm T Tungsten, 2.14 Volts, 263 Amps, 563 Watts, 1800⁰ C Temp
Qty:

pkg/5 €70,90
72-S6Ta-1 Evaporation source S6, 0.13mm T Tantalum, 2.77 Volts, 133 Amps, 368 Watts, 1600⁰ C Temp
Qty:

pkg/5 €113,40
72-S6Ta-2 Evaporation source S6, 0.25mm T Tantalum, 2.00 Volts, 186 Amps, 372 Watts, 1600⁰ C Temp
Qty:

pkg/5 €179,60
72-S6Mo-1 Evaporation source S6, 0.13mm T Molybdenum, 1.46 Volts, 123 Amps, 180 Watts, 1400⁰ C Temp
Qty:

pkg/5 €43,50
72-S6Mo-2 Evaporation source S6, 0.25mm T Molybdenum, 0.99 Volts, 181 Amps, 179 Watts, 1400⁰ C Temp
Qty:

pkg/5 €54,80

Evaporation boat S7 with Ø11x3mm dimple, 76mm L x 19mm W
Evaporation boat S7 with Ø11x3mm dimple, 76mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S7W-1 Evaporation source S7, 0.13mm T Tungsten, 2.49 Volts, 181 Amps, 451 Watts, 1800⁰ C Temp
Qty:

pkg/5 €52,90
72-S7W-2 Evaporation source S7, 0.25mm T Tungsten, 1.92 Volts, 258 Amps, 495 Watts, 1800⁰ C Temp
Qty:

pkg/5 €71,80
72-S7Ta-1 Evaporation source S7, 0.13mm T Tantalum, 2.48 Volts, 138 Amps, 342 Watts, 1600⁰ C Temp
Qty:

pkg/5 €122,90
72-S7Ta-2 Evaporation source S7, 0.25mm T Tantalum, 1.80 Volts, 155 Amps, 279 Watts, 1600⁰ C Temp
Qty:

pkg/5 €179,60
72-S7Mo-1 Evaporation source S7, 0.13mm T Molybdenum, 1.21 Volts, 108 Amps, 131 Watts, 1400⁰ C Temp
Qty:

pkg/5 €44,40
72-S7Mo-2 Evaporation source S7, 0.25mm T Molybdenum, 0.96 Volts, 180 Amps, 173 Watts, 1400⁰ C Temp
Qty:

pkg/5 €58,60

Evaporation boat S8A with Ø11x3mm dimple, 102mm L x 12.7mm W
Evaporation boat S8A with Ø11x3mm dimple, 102mm L x 12.7mm W
Product # Unit Price* Add to Quote / Order
72-S8AW-1 Evaporation source S8A, 0.13mm T Tungsten, 4.96 Volts, 136 Amps, 675 Watts, 1800⁰ C Temp
Qty:

pkg/5 €48,50
72-S8AW-2 Evaporation source S8A, 0.25mm T Tungsten, 3.11 Volts, 185 Amps, 575 Watts, 1800⁰ C Temp
Qty:

pkg/5 €65,20
72-S8AW-3 Evaporation source S8A, 0.38mm T Tungsten, 2.37 Volts, 234 Amps, 555 Watts, 1800⁰ C Temp
Qty:

pkg/5 €73,70
72-S8ATa-1 Evaporation source S8A, 0.13mm T Tantalum, 4.44 Volts, 92 Amps, 408 Watts, 1600⁰ C Temp
Qty:

pkg/5 €114,30
72-S8ATa-2 Evaporation source S8A, 0.25mm T Tantalum, 2.92 Volts, 129 Amps, 377 Watts, 1600⁰ C Temp
Qty:

pkg/5 €151,20
72-S8AMo-1 Evaporation source S8A, 0.13mm T Molybdenum, 1.95 Volts, 78 Amps, 152 Watts, 1400⁰ C Temp
Qty:

pkg/5 €45,40
72-S8AMo-2 Evaporation source S8A, 0.25mm T Molybdenum, 1.33 Volts, 112 Amps, 149 Watts, 1400⁰ C Temp
Qty:

pkg/5 €58,60

Evaporation boat S8B with Ø16x4.8mm dimple, 102mm L x 19mm W
Evaporation boat S8B with Ø16x4.8mm dimple, 102mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S8BW-1 Evaporation source S8B, 0.13mm T Tungsten, 3.71 Volts, 204 Amps, 757 Watts, 1800⁰ C Temp
Qty:

pkg/5 €58,60
72-S8BW-2 Evaporation source S8B, 0.25mm T Tungsten, 2.85 Volts, 292 Amps, 832 Watts, 1800⁰ C Temp
Qty:

pkg/5 €78,40
72-S8BW-3 Evaporation source S8B, 0.38mm T Tungsten, 2.24 Volts, 374 Amps, 838 Watts, 1800⁰ C Temp
Qty:

pkg/5 €93,60
72-S8BTa-1 Evaporation source S8B, 0.13mm T Tantalum, 4.44 Volts, 139 Amps, 617 Watts, 1600⁰ C Temp
Qty:

pkg/5 €198,50
72-S8BTa-2 Evaporation source S8B, 0.25mm T Tantalum, 2.86 Volts, 190 Amps, 543 Watts, 1600⁰ C Temp
Qty:

pkg/5 €302,40
72-S8BMo-1 Evaporation source S8B, 0.13mm T Molybdenum, 1.92 Volts, 123 Amps, 236 Watts, 1400⁰ C Temp
Qty:

pkg/5 €48,20
72-S8BMo-2 Evaporation source S8B, 0.25mm T Molybdenum, 1.40 Volts, 170 Amps, 238 Watts, 1400⁰ C Temp
Qty:

pkg/5 €60,50

Evaporation boat S8C with Ø16x4.8mm dimple, 102mm L x 25.4mm W
Evaporation boat S8C with Ø16x4.8mm dimple, 102mm L x 25.4mm W
Product # Unit Price* Add to Quote / Order
72-S8CW-2 Evaporation source S8C, 0.25mm T Tungsten, 2.99 Volts, 387 Amps, 1157 Watts, 1800⁰ C Temp
Qty:

pkg/5 €103,00
72-S8CTa-3 Evaporation source S8C, 0.38mm T Tantalum, 2.37 Volts, 337 Amps, 799 Watts, 1600⁰ C Temp
Qty:

pkg/5 €255,20
72-S8CTa-2 Evaporation source S8C, 0.25mm T Tantalum, 2.97 Volts, 276 Amps, 820 Watts, 1600⁰ C Temp
Qty:

pkg/5 €330,80
72-S8CMo-2 Evaporation source S8C, 0.25mm T Molybdenum, 1.27 Volts, 241 Amps, 306 Watts, 1400⁰ C Temp
Qty:

pkg/5 €61,40
72-S8CMo-3 Evaporation source S8C, 0.38mm T Molybdenum, 1.07 Volts, 300 Amps, 321 Watts, 1400⁰ C Temp
Qty:

pkg/5 €74,70

Evaporation boat S8D with Ø19x6.3mm dimple, 102mm L x 25.4mm W, isolated hot zone
Evaporation boat S8D with Ø19x6.3mm dimple, 102mm L x 25.4mm W, isolated hot zone
Product # Unit Price* Add to Quote / Order
72-S8DW-2 Evaporation source S8D, 0.25mm T Tungsten, 2.94 Volts, 378 Amps, 1111 Watts, 1800⁰ C Temp
Qty:

pkg/5 €103,00
72-S8DTa-2 Evaporation source S8D, 0.25mm T Tantalum, 2.97 Volts, 262 Amps, 778 Watts, 1600⁰ C Temp
Qty:

pkg/5 €264,60
72-S8DTa-3 Evaporation source S8D, 0.38mm T Tantalum, 2.37 Volts, 325 Amps, 770 Watts, 1600⁰ C Temp
Qty:

pkg/5 €340,20
72-S8DMo-2 Evaporation source S8D, 0.25mm T Molybdenum, 1.27 Volts, 241Amps, 306 Watts, 1400⁰ C Temp
Qty:

pkg/5 €60,50
72-S8DMo-3 Evaporation source S8D, 0.38mm T Molybdenum, 1.11 Volts, 300 Amps, 333 Watts, 1400⁰ C Temp
Qty:

pkg/5 €79,40

Evaporation boat S9A with Ø16x3mm dimple, 102mm L x 12.7mm W
Evaporation boat S9A with Ø16x3mm dimple, 102mm L x 12.7mm W
Product # Unit Price* Add to Quote / Order
72-S9AW-1 Evaporation source S9A, 0.13mm T Tungsten, 3.95 Volts, 185 Amps, 731 Watts, 1800⁰ C Temp
Qty:

pkg/5 €42,50
72-S9AW-2 Evaporation source S9A, 0.25mm T Tungsten, 2.84 Volts, 194 Amps, 551 Watts, 1800⁰ C Temp
Qty:

pkg/5 €53,90
72-S9AW-3 Evaporation source S9A, 0.38mm T Tungsten, 2.29 Volts, 253 Amps, 579 Watts, 1800⁰ C Temp
Qty:

pkg/5 €71,50
72-S9ATa-1 Evaporation source S9A, 0.13mm T Tantalum, 3.80 Volts, 93 Amps, 353 Watts, 1600⁰ C Temp
Qty:

pkg/5 €94,50
72-S9ATa-2 Evaporation source S9A, 0.25mm T Tantalum, 2.69 Volts, 135 Amps, 363 Watts, 1600⁰ C Temp
Qty:

pkg/5 €132,30
72-S9AMo-1 Evaporation source S9A, 0.13mm T Molybdenum, 1.70 Volts, 87 Amps, 148 Watts, 1400⁰ C Temp
Qty:

pkg/5 €36,90
72-S9AMo-2 Evaporation source S9A, 0.25mm T Molybdenum, 1.25 Volts, 121 Amps, 151 Watts, 1400⁰ C Temp
Qty:

pkg/5 €42,50

Evaporation boat S9B with Ø16x4.8mm dimple, 102mm L x 19mm W
Evaporation boat S9B with Ø16x4.8mm dimple, 102mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S9BW-1 Evaporation source S9B, 0.13mm T Tungsten, 3.50 Volts, 280 Amps, 980 Watts, 1800⁰ C Temp
Qty:

pkg/5 €53,90
72-S9BW-2 Evaporation source S9B, 0.25mm T Tungsten, 3.10 Volts, 325 Amps, 1008 Watts, 1800⁰ C Temp
Qty:

pkg/5 €75,60
72-S9BW-3 Evaporation source S9B, 0.38mm T Tungsten, 2.76 Volts, 386 Amps, 1065 Watts, 1800⁰ C Temp
Qty:

pkg/5 €88,80
72-S9BTa-1 Evaporation source S9B, 0.13mm T Tantalum, 4.43 Volts, 146 Amps, 647 Watts, 1600⁰ C Temp
Qty:

pkg/5 €160,70
72-S9BTa-2 Evaporation source S9B, 0.25mm T Tantalum, 2.98 Volts, 207 Amps, 617 Watts, 1600⁰ C Temp
Qty:

pkg/5 €245,70
72-S9BMo-1 Evaporation source S9B, 0.13mm T Molybdenum, 2.01 Volts, 132 Amps, 265 Watts, 1400⁰ C Temp
Qty:

pkg/5 €43,50
72-S9BMo-2 Evaporation source S9B, 0.25mm T Molybdenum, 1.30 Volts, 186 Amps, 242 Watts, 1400⁰ C Temp
Qty:

pkg/5 €52,00

Evaporation boat S9C with Ø16x4.8mm dimple, 102mm L x 25.4mm W
Evaporation boat S9C with Ø16x4.8mm dimple, 102mm L x 25.4mm W
Product # Unit Price* Add to Quote / Order
72-S9CW-2 Evaporation source S9C, 0.25mm T Tungsten, 3.08 Volts, 407 Amps, 1254 Watts, 1800⁰ C Temp
Qty:

pkg/5 €91,70
72-S9CTa-2 Evaporation source S9C, 0.25mm T Tantalum, 3.27 Volts, 281 Amps, 919 Watts, 1600⁰ C Temp
Qty:

pkg/5 €236,30
72-S9CTa-3 Evaporation source S9C, 0.38mm T Tantalum, 2.31 Volts, 333 Amps, 769 Watts, 1600⁰ C Temp
Qty:

pkg/5 €311,90
72-S9CMo-2 Evaporation source S9C, 0.25mm T Molybdenum, 1.36 Volts, 257 Amps, 350 Watts, 1400⁰ C Temp
Qty:

pkg/5 €60,50
72-S9CMo-3 Evaporation source S9C, 0.38mm T Molybdenum, 1.09 Volts, 315 Amps, 343 Watts, 1400⁰ C Temp
Qty:

pkg/5 €65,20

Evaporation boat S9D with Ø19x6.3mm dimple, 102mm L x 25.4mm W
Evaporation boat S9D with Ø19x6.3mm dimple, 102mm L x 25.4mm W
Product # Unit Price* Add to Quote / Order
72-S9DW-2 Evaporation source S9D, 0.25mm T Tungsten, 3.06 Volts, 411 Amps, 1258 Watts, 1800⁰ C Temp
Qty:

pkg/5 €93,60
72-S9DTa-2 Evaporation source S9D, 0.25mm T Tantalum, 2.89 Volts, 262 Amps, 757 Watts, 1600⁰ C Temp
Qty:

pkg/5 €245,70
72-S9DTa-3 Evaporation source S9D, 0.38mm T Tantalum, 2.35 Volts, 333 Amps, 783 Watts, 1600⁰ C Temp
Qty:

pkg/5 €340,20
72-S9DTa-4 Evaporation source S9D, 0.51mm T Tantalum, 1.86 Volts, 431 Amps, 802 Watts, 1600⁰ C Temp
Qty:

pkg/5 €529,20
72-S9DMo-2 Evaporation source S9D, 0.25mm T Molybdenum, 1.34 Volts, 260 Amps, 348 Watts, 1400⁰ C Temp
Qty:

pkg/5 €59,50
72-S9DMo-3 Evaporation source S9D, 0.38mm T Molybdenum, 1.12 Volts, 318 Amps, 356 Watts, 1400⁰ C Temp
Qty:

pkg/5 €68,00

Evaporation boat S9E with Ø25,4x6,3mm dimple, 102mm L x 32mm W
Evaporation boat S9E with Ø25,4x6,3mm dimple, 102mm L x 32mm W
Product # Unit Price* Add to Quote / Order
72-S9EW-2 Evaporation source S9E, 0.25mm T Tungsten, 3.21 Volts, 525 Amps, 1685 Watts, 1800⁰ C Temp
Qty:

pkg/5 €114,30
72-S9ETa-2 Evaporation source S9E, 0.25mm T Tantalum, 2.97 Volts, 340 Amps, 1010 Watts, 1600⁰ C Temp
Qty:

pkg/5 €283,50
72-S9ETa-3 Evaporation source S9E, 0.38mm T Tantalum, 2.00 Volts, 366 Amps, 732 Watts, 1600⁰ C Temp
Qty:

pkg/5 €378,00
72-S9ETa-4 Evaporation source S9E, 0.51mm T Tantalum, 1.93 Volts, 539 Amps, 1040 Watts, 1600⁰ C Temp
Qty:

pkg/5 €604,80
72-S9EMo-2 Evaporation source S9E, 0.25mm T Molybdenum, 1.36 Volts, 316 Amps, 430 Watts, 1400⁰ C Temp
Qty:

pkg/5 €65,20
72-S9EMo-3 Evaporation source S9E, 0.38mm T Molybdenum, 1.12 Volts, 417 Amps, 467 Watts, 1400⁰ C Temp
Qty:

pkg/5 €74,70

Evaporation boat S9F with Ø38x6.3mm dimple, 102mm L x 51mm W
Evaporation boat S9F with Ø38x6.3mm dimple, 102mm L x 51mm W
Product # Unit Price* Add to Quote / Order
72-S9FW-2 Evaporation source S9F, 0.25mm T Tungsten, 3.31 Volts, 811 Amps, 2684 Watts, 1800⁰ C Temp
Qty:

pkg/5 €187,10
72-S9FTa-2 Evaporation source S9F, 0.25mm T Tantalum, 3.12 Volts, 601 Amps, 1875 Watts, 1600⁰ C Temp
Qty:

pkg/5 €491,40
72-S9FTa-3 Evaporation source S9F, 0.38mm T Tantalum, 2.70 Volts, 721 Amps, 1947 Watts, 1600⁰ C Temp
Qty:

pkg/5 €642,60
72-S9FTa-4 Evaporation source S9F, 0.51mm T Tantalum, 2.50 Volts, 948 Amps, 2370 Watts, 1600⁰ C Temp
Qty:

pkg/5 €1001,70
72-S9FMo-2 Evaporation source S9F, 0.25mm T Molybdenum, 1.61 Volts, 559 Amps, 900 Watts, 1400⁰ C Temp
Qty:

pkg/5 €104,00
72-S9FMo-3 Evaporation source S9F, 0.38mm T Molybdenum, 1.44 Volts, 682 Amps, 982 Watts, 1400⁰ C Temp
Qty:

pkg/5 €124,70

Evaporation boat S10 with 16mm W x 3mm D trough, 102mm L x 25.4mm W
Evaporation boat S10 with 16mm W x 3mm D trough, 102mm L x 25.4mm W
Product # Unit Price* Add to Quote / Order
72-S10W-1 Evaporation source S10, 0.13mm T Tungsten, 4.4 Volts, 267 Amps, 1175 Watts, 1800⁰ C Temp
Qty:

pkg/5 €71,80
72-S10W-2 Evaporation source S10, 0.25mm T Tungsten, 3.35 Volts, 381 Amps, 1276 Watts, 1800⁰ C Temp
Qty:

pkg/5 €103,00
72-S10Ta-1 Evaporation source S10, 0.13mm T Tantalum, 4.26 Volts, 193 Amps, 822 Watts, 1600⁰ C Temp
Qty:

pkg/5 €179,60
72-S10Ta-2 Evaporation source S10, 0.25mm T Tantalum, 4.24 Volts, 194 Amps, 823 Watts, 1600⁰ C Temp
Qty:

pkg/5 €274,10
72-S10Mo-1 Evaporation source S10, 0.13mm T Molybdenum, 2.03 Volts, 170 Amps, 345 Watts, 1400⁰ C Temp
Qty:

pkg/5 €66,20
72-S10Mo-2 Evaporation source S10, 0.25mm T Molybdenum, 1.34 Volts, 247 Amps, 331 Watts, 1400⁰ C Temp
Qty:

pkg/5 €72,80

Evaporation boat S11 with Ø12.7mmx 3mm D dimple, 102mm L x 25.4mm W
Evaporation boat S11 with Ø12.7mmx 3mm D dimple, 102mm L x 25.4mm W
Product # Unit Price* Add to Quote / Order
72-S11W-1 Evaporation source S11, 0.13mm T Tungsten, 3.94 Volts, 261 Amps, 1028 Watts, 1800⁰ C Temp
Qty:

pkg/5 €71,80
72-S11W-2 Evaporation source S11, 0.25mm T Tungsten, 3.03 Volts, 372 Amps, 1127 Watts, 1800⁰ C Temp
Qty:

pkg/5 €103,00
72-S11Ta-1 Evaporation source S11, 0.13mm T Tantalum, 4.10 Volts, 180 Amps, 738 Watts, 1600⁰ C Temp
Qty:

pkg/5 €179,60
72-S11Ta-2 Evaporation source S11, 0.25mm T Tantalum, 2.86 Volts, 262 Amps, 749 Watts, 1600⁰ C Temp
Qty:

pkg/5 €274,10
72-S11Mo-1 Evaporation source S11, 0.13mm T Molybdenum, 1.95 Volts, 165 Amps, 322 Watts, 1400⁰ C Temp
Qty:

pkg/5 €66,20
72-S11Mo-2 Evaporation source S11, 0.25mm T Molybdenum, 1.29 Volts, 236 Amps, 304 Watts, 1400⁰ C Temp
Qty:

pkg/5 €72,80

Evaporation boat S12A, folded, vertical with 76 x 9.5mm trough, 102mm L x 9.5mm H
Evaporation boat S12A, folded, vertical with 76 x 9.5mm trough, 102mm L x 9.5mm H
Product # Unit Price* Add to Quote / Order
72-S12ATa-1 Evaporation source S12A, 0.13mm T Tantalum, 2.97 Volts, 197 Amps, 585 Watts, 1600⁰ C Temp
Qty:

pkg/5 €85,10
72-S12ATa-2 Evaporation source S12A, 0.25mm T Tantalum, 2.22 Volts, 273 Amps, 606 Watts, 1600⁰ C Temp
Qty:

pkg/5 €118,10
72-S12AMo-1 Evaporation source S12A, 0.13mm T Molybdenum, 1.46 Volts, 181 Amps, 264 Watts, 1400⁰ C Temp
Qty:

pkg/5 €72,30
72-S12AMo-2 Evaporation source S12A, 0.25mm T Molybdenum, 1.11 Volts, 267 Amps, 296 Watts, 1400⁰ C Temp
Qty:

pkg/5 €118,10

Evaporation boat S12B, folded, vertical with 38 x 9.5mm trough, 64mm L x 9.5mm H
Evaporation boat S12B, folded, vertical with 38 x 9.5mm trough, 64mm L x 9.5mm H
Product # Unit Price* Add to Quote / Order
72-S12BTa-1 Evaporation source S12B, 0.13mm T Tantalum, 1.82 Volts, 203 Amps, 369 Watts, 1600⁰ C Temp
Qty:

pkg/5 €198,50
72-S12BTa-2 Evaporation source S12B, 0.25mm T Tantalum, 1.48 Volts, 298 Amps, 441 Watts, 1600⁰ C Temp
Qty:

pkg/5 €264,60
72-S12BMo-1 Evaporation source S12B, 0.13mm T Molybdenum, 0.96 Volts, 196 Amps, 188 Watts, 1400⁰ C Temp
Qty:

pkg/5 €77,50
72-S12BMo-2 Evaporation source S12B, 0.25mm T Molybdenum, 0.78 Volts, 320 Amps, 250 Watts, 1400⁰ C Temp
Qty:

pkg/5 €101,10

Evaporation boat S13, folded, horizontal with 64 x 9.5mm trough, 102mm L x 9.5mm W
Evaporation boat S13, folded, horizontal with 64 x 9.5mm trough, 102mm L x 9.5mm W
Product # Unit Price* Add to Quote / Order
72-S13W-1 Evaporation source S13, 0.13mm T Tungsten, 3.04 Volts, 149 Amps, 543 Watts, 1800⁰ C Temp
Qty:

pkg/5 €92,60
72-S13Ta-1 Evaporation source S13, 0.13mm T Tantalum, 2.87 Volts, 110 Amps, 316 Watts, 1600⁰ C Temp
Qty:

pkg/5 €176,70
72-S13Ta-2 Evaporation source S13, 0.25mm T Tantalum, 1.92 Volts, 158 Amps, 303 Watts, 1600⁰ C Temp
Qty:

pkg/5 €274,10
72-S13Mo-1 Evaporation source S13, 0.13mm T Molybdenum, 1.32 Volts, 106 Amps, 140 Watts, 1400⁰ C Temp
Qty:

pkg/5 €83,20
72-S13Mo-2 Evaporation source S13, 0.25mm T Molybdenum, 0.97 Volts, 156 Amps, 151 Watts, 1400⁰ C Temp
Qty:

pkg/5 €92,60

Evaporation boat S14, folded, vertical with 76 x 12.7mm trough, 102mm L x 12.7mm H
Evaporation boat S14, folded, vertical with 76 x 12.7mm trough, 102mm L x 12.7mm H
Product # Unit Price* Add to Quote / Order
72-S14W-1 Evaporation source S14, 0.13mm T Tungsten, 4.21 Volts, 283 Amps, 1191 Watts, 1800⁰ C Temp
Qty:

pkg/5 €78,40
72-S14W-2 Evaporation source S14, 0.25mm T Tungsten, 2.52 Volts, 402 Amps, 1013 Watts, 1800⁰ C Temp
Qty:

pkg/5 €110,60
72-S14W-3 Evaporation source S14, 0.38mm T Tungsten,2.40 Volts, 459 Amps, 1102 Watts, 1800⁰ C Temp
Qty:

pkg/5 €121,90
72-S14Ta-1 Evaporation source S14, 0.13mm T Tantalum, 3.92 Volts, 179 Amps, 702 Watts, 1600⁰ C Temp
Qty:

pkg/5 €170,10
72-S14Ta-2 Evaporation source S14, 0.25mm T Tantalum, 2.53 Volts, 259 Amps, 655 Watts, 1600⁰ C Temp
Qty:

pkg/5 €274,10
72-S14Mo-1 Evaporation source S14, 0.13mm T Molybdenum, 1.71 Volts, 170 Amps, 291 Watts, 1400⁰ C Temp
Qty:

pkg/5 €60,50
72-S14Mo-2 Evaporation source S14, 0.25mm T Molybdenum, 1.19 Volts, 240 Amps,286 Watts, 1400⁰ C Temp
Qty:

pkg/5 €75,60

Evaporation boat S15, folded, vertical with 51 x 6.3mm trough, 102mm L x 6.3mm H
Evaporation boat S15, folded, vertical with 51 x 6.3mm trough, 102mm L x 6.3mm H
Product # Unit Price* Add to Quote / Order
72-S15W-1 Evaporation source S15, 0.13mm T Tungsten, 4.08 Volts, 144 Amps, 588 Watts, 1800⁰ C Temp
Qty:

pkg/5 €56,70
72-S15W-2 Evaporation source S15, 0.25mm T Tungsten, 3.04 Volts, 200 Amps, 608 Watts, 1800⁰ C Temp
Qty:

pkg/5 €81,30
72-S15W-3 Evaporation source S15, 0.38mm T Tungsten, 2.23 Volts, 249 Amps, 555 Watts, 1800⁰ C Temp
Qty:

pkg/5 €88,80
72-S15Ta-1 Evaporation source S15, 0.13mm T Tantalum, 3.80 Volts, 90 Amps, 342 Watts, 1600⁰ C Temp
Qty:

pkg/5 €132,30
72-S15Ta-2 Evaporation source S15, 0.25mm T Tantalum, 2.86 Volts, 133 Amps, 380 Watts, 1600⁰ C Temp
Qty:

pkg/5 €179,60
72-S15Mo-1 Evaporation source S15, 0.13mm T Molybdenum, 1.76 Volts, 86 Amps, 151 Watts, 1400⁰ C Temp
Qty:

pkg/5 €48,20
72-S15Mo-2 Evaporation source S15, 0.25mm T Molybdenum, 1.23 Volts, 129 Amps, 159 Watts, 1400⁰ C Temp
Qty:

pkg/5 €71,80

Evaporation boat S16, folded, vertical with 28 x 4.8mm trough, 48mm L x 4.8mm H
Evaporation boat S16, folded, vertical with 28 x 4.8mm trough, 48mm L x 4.8mm H
Product # Unit Price* Add to Quote / Order
72-S16W-1 Evaporation source S16, 0.13mm T Tungsten, 1.58 Volts, 110 Amps, 174 Watts, 1800⁰ C Temp
Qty:

pkg/5 €32,10
72-S16W-2 Evaporation source S16, 0.25mm T Tungsten, 1.10 Volts, 143 Amps, 159 Watts, 1800⁰ C Temp
Qty:

pkg/5 €35,90
72-S16Ta-1 Evaporation source S16, 0.13mm T Tantalum, 1.49 Volts, 65 Amps, 97 Watts, 1600⁰ C Temp
Qty:

pkg/5 €75,60
72-S16Ta-2 Evaporation source S16, 0.25mm T Tantalum, 1.17 Volts, 115 Amps, 135 Watts, 1600⁰ C Temp
Qty:

pkg/5 €94,50
72-S16Mo-1 Evaporation source S16, 0.13mm T Molybdenum, 0.87 Volts, 73 Amps, 64 Watts, 1400⁰ C Temp
Qty:

pkg/5 €43,50
72-S16Mo-2 Evaporation source S16, 0.25mm T Molybdenum, 0.72 Volts, 131 Amps, 94 Watts, 1400⁰ C Temp
Qty:

pkg/5 €45,40

Evaporation boat S17A, folded, vertical, closed with Ø3mm opening, 76mm L x 6,3mm H
Evaporation boat S17A, folded, vertical, closed with Ø3mm opening, 76mm L x 6,3mm H
Product # Unit Price* Add to Quote / Order
72-S17ATa-1 Evaporation source S17A, 0.13mm T Tantalum, 2.15 Volts, 158 Amps, 340 Watts, 1600⁰ C Temp
Qty:

pkg/5 €245,70
72-S17ATa-2 Evaporation source S17A, 0.25mm T Tantalum, 1.40 Volts, 183 Amps, 256 Watts, 1600⁰ C Temp
Qty:

pkg/5 €302,40

Evaporation boat S17B, folded, horizontal, closed with Ø3mm opening, 76mm L x 6,3mm W
Evaporation boat S17B, folded, horizontal, closed with Ø3mm opening, 76mm L x 6,3mm W
Product # Unit Price* Add to Quote / Order
72-S17BTa-1 Evaporation source S17B, 0.13mm T Tantalum, 1.93 Volts, 125 Amps, 241 Watts, 1600⁰ C Temp
Qty:

pkg/5 €245,70
72-S17BTa-2 Evaporation source S17B, 0.25mm T Tantalum, 1.43 Volts, 187 Amps, 267 Watts, 1600⁰ C Temp
Qty:

pkg/5 €302,40

Evaporation boat S18, solid with 51 x 9.5mm cavity, 102mm L x 12.7mm W x 6.3mm H
Evaporation boat S18, solid with 51 x 9.5mm cavity, 102mm L x 12.7mm W x 6.3mm H
Product # Unit Price* Add to Quote / Order
72-S18Ta Evaporation source S18, solid Tantalum,
Qty:

each €1020,60
72-S18C Evaporation source S18, solid Graphite, 11.35 Volts, 317 Amps, 3598 Watts, 2000⁰ C Temp
Qty:

each €88,80
72-S18BN Evaporation source S18, solid Borium Nitride,
Qty:

each €232,50

Evaporation boat S19A, Z-type vertical sublimation tube Ø6.3mm ID, 38 x 38mm
Evaporation boat S19A, Z-type vertical sublimation tube Ø6.3mm ID, 38 x 38mm
Product # Unit Price* Add to Quote / Order
72-S19ATa Evaporation source S19A, Tantalum, 1.71 Volts, 130 Amps, 222 Watts, 1600° C Temp
Qty:

pkg/5 €378,00

Evaporation boat S19B, Z-type vertical sublimation tube Ø6.3mm ID, 38 x 38mm
Evaporation boat S19B, Z-type vertical sublimation tube Ø6.3mm ID, 38 x 38mm
Product # Unit Price* Add to Quote / Order
72-S19BTa Evaporation source S19B, Tantalum, 1.83 Volts, 134 Amps, 245 Watts, 1600° C Temp
Qty:

pkg/5 €415,80

Evaporation boat S19C, vertical sublimation tube Ø6.3mm ID, 76mm L x 38mm H
Evaporation boat S19C, vertical sublimation tube Ø6.3mm ID, 76mm L x 38mm H
Product # Unit Price* Add to Quote / Order
72-S19CTa Evaporation source S19C, Tantalum, 2.64 Volts, 132 Amps, 348 Watts, 1600° C Temp
Qty:

pkg/5 €444,20

Evaporation boat S20A with 38x12.7x3mm trough, 102mm L x 12.7mm W
Evaporation boat S20A with 38x12.7x3mm trough, 102mm L x 12.7mm W
Product # Unit Price* Add to Quote / Order
72-S20AW-1 Evaporation source S20A, 0.13mm T Tungsten, 3.95 Volts, 140 Amps, 553 Watts, 1800⁰ C Temp
Qty:

pkg/5 €45,40
72-S20AW-2 Evaporation source S20A, 0.25mm T Tungsten, 2.90 Volts, 196 Amps, 568 Watts, 1800⁰ C Temp
Qty:

pkg/5 €58,60
72-S20AW-3 Evaporation source S20A, 0.38mm T Tungsten, 2.10 Volts, 250 Amps, 525 Watts, 1800⁰ C Temp
Qty:

pkg/5 €70,90
72-S20ATa-1 Evaporation source S20A, 0.13mm T Tantalum, 3.40 Volts, 94 Amps, 320 Watts, 1600⁰ C Temp
Qty:

pkg/5 €113,40
72-S20ATa-2 Evaporation source S20A, 0.25mm T Tantalum, 2.61 Volts, 129 Amps, 337 Watts, 1600⁰ C Temp
Qty:

pkg/5 €170,10
72-S20AMo-1 Evaporation source S20A, 0.13mm T Molybdenum, 1.84 Volts, 81 Amps, 149 Watts, 1400⁰ C Temp
Qty:

pkg/5 €43,50
72-S20AMo-2 Evaporation source S20A, 0.25mm T Molybdenum, 1.27 Volts, 129 Amps, 164 Watts, 1400⁰ C Temp
Qty:

pkg/5 €46,30

Evaporation boat S21 with 38x12.7x3mm trough, 102mm L x 19mm W, isolated hot-zone
Evaporation boat S21 with 38x12.7x3mm trough, 102mm L x 19mm W, isolated hot-zone
Product # Unit Price* Add to Quote / Order
72-S21W-1 Evaporation source S21, 0.13mm T Tungsten, 3.26 Volts, 144 Amps, 469 Watts, 1800⁰ C Temp
Qty:

pkg/5 €68,00
72-S21W-2 Evaporation source S21, 0.25mm T Tungsten, 3.28 Volts, 300 Amps, 984 Watts, 1800⁰ C Temp
Qty:

pkg/5 €102,10
72-S21Ta-1 Evaporation source S21, 0.13mm T Tantalum, 4.50 Volts, 138 Amps, 621 Watts, 1600⁰ C Temp
Qty:

pkg/5 €198,50
72-S21Ta-2 Evaporation source S21, 0.25mm T Tantalum, 4.50 Volts, 138 Amps, 621 Watts, 1600⁰ C Temp
Qty:

pkg/5 €224,90
72-S21Mo-1 Evaporation source S21, 0.13mm T Molybdenum, 2.11 Volts, 123 Amps, 260 Watts, 1400⁰ C Temp
Qty:

pkg/5 €69,00
72-S21Mo-2 Evaporation source S21, 0.25mm T Molybdenum, 1.47 Volts, 184 Amps, 270 Watts, 1400⁰ C Temp
Qty:

pkg/5 €67,50

Evaporation boat S22 with 25.4x16x3mm trough, 76mm L x 19mm W, isolated hot-zone
Evaporation boat S22 with 25.4x16x3mm trough, 76mm L x 19mm W, isolated hot-zone
Product # Unit Price* Add to Quote / Order
72-S22W-1 Evaporation source S22, 0.13mm T Tungsten, 3.32 Volts, 198 Amps, 657 Watts, 1800⁰ C Temp
Qty:

pkg/5 €62,40
72-S22W-2 Evaporation source S22, 0.25mm T Tungsten, 2.55 Volts, 283 Amps, 722 Watts, 1800⁰ C Temp
Qty:

pkg/5 €84,10
72-S22Ta-1 Evaporation source S22, 0.13mm T Tantalum, 2.94 Volts, 150 Amps, 441 Watts, 1600⁰ C Temp
Qty:

pkg/5 €132,30
72-S22Ta-2 Evaporation source S22, 0.25mm T Tantalum, 2.28 Volts, 209 Amps, 477 Watts, 1600⁰ C Temp
Qty:

pkg/5 €179,60
72-S22Mo-1 Evaporation source S22, 0.13mm T Molybdenum, 1.54 Volts, 122 Amps, 188 Watts, 1400⁰ C Temp
Qty:

pkg/5 €60,50
72-S22Mo-2 Evaporation source S22, 0.25mm T Molybdenum, 1.09 Volts, 190 Amps, 207 Watts, 1400⁰ C Temp
Qty:

pkg/5 €75,60

Evaporation boat S23 with 25mm L closed trough and offset Ø6.3mm opening, 76mm L x 19mm W, isolated hot-zone
Evaporation boat S23 with 25mm L closed trough and offset Ø6.3mm opening, 76mm L x 19mm W, isolated hot-zone
Product # Unit Price* Add to Quote / Order
72-S23W-2 Evaporation source S23, 0.25mm T Tungsten, 1.50 Volts, 375 Amps, 562 Watts, 1800⁰ C Temp
Qty:

pkg/5 €166,30
72-S23Ta-2 Evaporation source S23, 0.25mm T Tantalum, 1.68 Volts, 295 Amps, 496 Watts, 1600⁰ C Temp
Qty:

pkg/5 €349,70
72-S23Mo-2 Evaporation source S23, 0.25mm T Molybdenum, 0.88 Volts, 301 Amps, 265 Watts, 1400⁰ C Temp
Qty:

pkg/5 €156,90

Evaporation boat S24 with 25mm L closed trough and central Ø6.3mm opening, 76mm L x 19mm W, isolated hot-zone
Evaporation boat S24 with 25mm L closed trough and central Ø6.3mm opening, 76mm L x 19mm W, isolated hot-zone
Product # Unit Price* Add to Quote / Order
72-S24W-1 Evaporation source S24, 0.13mm T Tungsten, 2.21 Volts, 256 Amps, 566 Watts, 1800⁰ C Temp
Qty:

pkg/5 €121,90
72-S24W-2 Evaporation source S24, 0.25mm T Tungsten, 1.70 Volts, 386 Amps, 656 Watts, 1800⁰ C Temp
Qty:

pkg/5 €176,70
72-S24Ta-1 Evaporation source S24, 0.13mm T Tantalum, 2.28 Volts, 190 Amps, 433 Watts, 1600⁰ C Temp
Qty:

pkg/5 €236,30
72-S24Ta-2 Evaporation source S24, 0.25mm T Tantalum, 1.77 Volts, 329 Amps, 582 Watts, 1600⁰ C Temp
Qty:

pkg/5 €368,60
72-S24Mo-1 Evaporation source S24, 0.13mm T Molybdenum, 1.24 Volts, 202 Amps, 250 Watts, 1400⁰ C Temp
Qty:

pkg/5 €135,10
72-S24Mo-2 Evaporation source S24, 0.25mm T Molybdenum, 0.83 Volts, 297 Amps, 247 Watts, 1400⁰ C Temp
Qty:

pkg/5 €169,20

Evaporation boat S25 with 25mm L closed trough and offset Ø6.3mm opening, 102mm L x 19mm W, isolated hot-zone
Evaporation boat S25 with 25mm L closed trough and offset Ø6.3mm opening, 102mm L x 19mm W, isolated hot-zone
Product # Unit Price* Add to Quote / Order
72-S25W-2 Evaporation source S25, 0.25mm T Tungsten, 2.30 Volts, 375Amps, 862 Watts, 1800⁰ C Temp
Qty:

pkg/5 €198,50
72-S25Ta-2 Evaporation source S25, 0.25mm T Tantalum, 2.16 Volts, 272 Amps, 588 Watts, 1600⁰ C Temp
Qty:

pkg/5 €406,40
72-S25Mo-2 Evaporation source S25, 0.25mm T Molybdenum, 1.14 Volts, 300 Amps, 342 Watts, 1400⁰ C Temp
Qty:

pkg/5 €151,20

Evaporation boat S26 with 25mm L closed trough and central Ø6.3mm opening, 102mm L x 19mm W, isolated hot-zone
Evaporation boat S26 with 25mm L closed trough and central Ø6.3mm opening, 102mm L x 19mm W, isolated hot-zone
Product # Unit Price* Add to Quote / Order
72-S26W-2 Evaporation source S26, 0.25mm T Tungsten, 2.14 Volts, 383 Amps, 820 Watts, 1800⁰ C Temp
Qty:

pkg/5 €207,90
72-S26Ta-2 Evaporation source S26, 0.25mm T Tantalum, 2.40 Volts, 293 Amps, 703 Watts, 1600⁰ C Temp
Qty:

pkg/5 €415,80
72-S26Mo-2 Evaporation source S26, 0.25mm T Molybdenum, 1.10 Volts, 278 Amps, 306 Watts, 1400⁰ C Temp
Qty:

pkg/5 €151,20

Evaporation boat S27
Evaporation boat S27
Product # Unit Price* Add to Quote / Order
72-S27W-1 Evaporation source S27, 0.13mm T Tungsten, 2.22 Volts, 134 Amps, 297 Watts, 1800⁰ C Temp
Qty:

pkg/5 €88,80
72-S27W-2 Evaporation source S27, 0.25mm T Tungsten, 1.57 Volts, 185 Amps, 290 Watts, 1800⁰ C Temp
Qty:

pkg/5 €121,90
72-S27Ta-1 Evaporation source S27, 0.13mm T Tantalum, 2.09 Volts, 99 Amps, 207 Watts, 1600⁰ C Temp
Qty:

pkg/5 €179,60
72-S27Ta-2 Evaporation source S27, 0.25mm T Tantalum, 1.48 Volts, 137 Amps, 203 Watts, 1600⁰ C Temp
Qty:

pkg/5 €274,10
72-S27Mo-1 Evaporation source S27, 0.13mm T Molybdenum, 0.94 Volts, 94 Amps, 88 Watts, 1400⁰ C Temp
Qty:

pkg/5 €79,40
72-S27Mo-2 Evaporation source S27, 0.25mm T Molybdenum, 0.75 Volts, 148 Amps, 111 Watts, 1400⁰ C Temp
Qty:

pkg/5 €89,80

Evaporation boat S28 with dual Ø12.7x3mm dimple, 102mm L x 12.7mm W
Evaporation boat S28 with dual Ø12.7x3mm dimple, 102mm L x 12.7mm W
Product # Unit Price* Add to Quote / Order
72-S28W-1 Evaporation source S28, 0.13mm T Tungsten, 3.81 Volts, 131 Amps, 499 Watts, 1800⁰ C Temp
Qty:

pkg/5 €39,70
72-S28W-2 Evaporation source S28, 0.25mm T Tungsten, 2.93 Volts, 187 Amps, 548 Watts, 1800⁰ C Temp
Qty:

pkg/5 €58,60
72-S28Ta-1 Evaporation source S28, 0.13mm T Tantalum, 3.74 Volts, 92 Amps, 344 Watts, 1600⁰ C Temp
Qty:

pkg/5 €104,00
72-S28Ta-2 Evaporation source S28, 0.25mm T Tantalum, 2.69 Volts, 132 Amps, 355 Watts, 1600⁰ C Temp
Qty:

pkg/5 €132,30
72-S28Mo-1 Evaporation source S28, 0.13mm T Molybdenum, 1.92 Volts, 86 Amps, 165 Watts, 1400⁰ C Temp
Qty:

pkg/5 €45,40
72-S28Mo-2 Evaporation source S28, 0.25mm T Molybdenum, 1.27 Volts, 127 Amps, 161 Watts, 1400⁰ C Temp
Qty:

pkg/5 €54,80

Evaporation boat S29 with Ø25.4 x 6.3mm dimple, 102mm L x 30mm W, isolated hot-zone
Evaporation boat S29 with Ø25.4 x 6.3mm dimple, 102mm L x 30mm W, isolated hot-zone
Product # Unit Price* Add to Quote / Order
72-S29W-1 Evaporation source S29, 0.13mm T Tungsten, 4.29 Volts, 316 Amps, 1356 Watts, 1800⁰ C Temp
Qty:

pkg/5 €86,90
72-S29W-2 Evaporation source S29, 0.25mm T Tungsten, 3.30 Volts, 451 Amps, 1488 Watts, 1800⁰ C Temp
Qty:

pkg/5 €143,60
72-S29Ta-1 Evaporation source S29, 0.13mm T Tantalum, 4.50 Volts, 221 Amps, 994 Watts, 1600⁰ C Temp
Qty:

pkg/5 €245,70
72-S29Ta-2 Evaporation source S29, 0.13mm T Tantalum, 3.36 Volts, 322 Amps, 1082 Watts, 1600⁰ C Temp
Qty:

pkg/5 €378,00
72-S29Ta-3 Evaporation source S29, 0.38mm T Tantalum, 2.56 Volts, 406 Amps, 1039 Watts, 1600⁰ C Temp
Qty:

pkg/5 €472,50
72-S29Mo-1 Evaporation source S29, 0.13mm T Molybdenum, 2.10 Volts, 198 Amps, 416 Watts, 1400⁰ C Temp
Qty:

pkg/5 €472,50
72-S29Mo-2 Evaporation source S29, 0.25mm T Molybdenum, 1.43 Volts, 281 Amps, 402 Watts, 1400⁰ C Temp
Qty:

pkg/5 €99,20

Evaporation boat S30A with larger volume closed trough and central opening, 76mm L x 19mm W
Evaporation boat S30A with larger volume closed trough and central opening, 76mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S30AW-1 Evaporation source S30A, 0.13mm T Tungsten, 2.60 Volts, 400 Amps, 1040 Watts, 1800⁰ C Temp
Qty:

pkg/5 €245,70
72-S30AW-2 Evaporation source S30A, 0.25mm T Tungsten, 1.50 Volts, 444 Amps, 666 Watts, 1800⁰ C Temp
Qty:

pkg/5 €264,60
72-S30ATa-1 Evaporation source S30A, 0.13mm T Tantalum, 2.60 Volts, 400 Amps, 1040 Watts, 1600⁰ C Temp
Qty:

pkg/5 €378,00
72-S30ATa-2 Evaporation source S30A, 0.25mm T Tantalum, 1.44 Volts, 296 Amps, 427 Watts, 1600⁰ C Temp
Qty:

pkg/5 €463,10

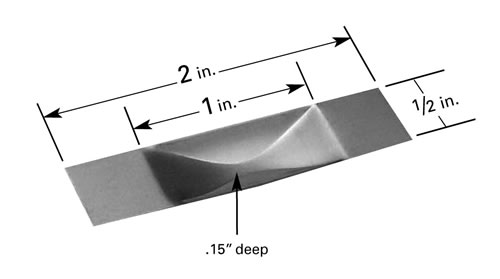

Evaporation boat S31A with 25.4 x 12.7 x 3,8mm trough, 51mm L x 12.7mm W
Evaporation boat S31A with 25.4 x 12.7 x 3,8mm trough, 51mm L x 12.7mm W
Product # Unit Price* Add to Quote / Order
72-S31AW-1 Evaporation source S31A, 0.13mm T Tungsten, 2.00 Volts, 166 Amps, 332 Watts, 1800⁰ C Temp
Qty:

pkg/5 €42,50
72-S31AW-2 Evaporation source S31A, 0.25mm T Tungsten, 1.63 Volts, 214 Amps, 349 Watts, 1800⁰ C Temp
Qty:

pkg/5 €46,30
72-S31AW-3 Evaporation source S31A, 0.38mm T Tungsten, 1.40 Volts, 261 Amps, 365 Watts, 1800⁰ C Temp
Qty:

pkg/5 €51,00
72-S31ATa-1 Evaporation source S31A, 0.13mm T Tantalum, 1.24 Volts, 83 Amps, 103 Watts, 1600⁰ C Temp
Qty:

pkg/5 €75,60
72-S31ATa-2 Evaporation source S31A, 0.25mm T Tantalum, 0.98 Volts, 119 Amps, 117 Watts, 1600⁰ C Temp
Qty:

pkg/5 €113,40
72-S31ATa-3 Evaporation source S31A, 0.38mm T Tantalum, 1.07 Volts, 155 Amps, 166 Watts, 1600⁰ C Temp
Qty:

pkg/5 €160,70
72-S31AMo-1 Evaporation source S31A, 0.13mm T Molybdenum, 0.66 Volts, 75 Amps, 50 Watts, 1400⁰ C Temp
Qty:

pkg/5 €43,50
72-S31AMo-2 Evaporation source S31A, 0.25mm T Molybdenum, 0.53 Volts, 129 Amps, 68 Watts, 1400⁰ C Temp
Qty:

pkg/5 €46,30
72-S31AMo-3 Evaporation source S31A, 0.38mm T Molybdenum, 0.55 Volts, 173 Amps, 95 Watts, 1400⁰ C Temp
Qty:

pkg/5 €52,00

Tungsten crucible heater strip for C1 and C9 crucible, 102mm L x 30mm W
Tungsten crucible heater strip for C1 and C9 crucible, 102mm L x 30mm W
Product # Unit Price* Add to Quote / Order
72-S32W-2 Evaporation source S32, 0.25mm T Tungsten, 2.38 Volts, 738 Amps, 1756 Watts, 2000⁰ C Temp
Qty:

pkg/5 €330,80

Tungsten crucible heater strip for C1 crucible, raised middle part,  76mm L x 32mm W
Tungsten crucible heater strip for C1 crucible, raised middle part, 76mm L x 32mm W
Product # Unit Price* Add to Quote / Order
72-S32AW-2 Evaporation source S32A, 0.25mm T Tungsten, 2.36 Volts, 740 Amps, 1746 Watts, 2000⁰ C Temp
Qty:

pkg/5 €406,40

Cover-strip for 19mm wide evaporation boats , 8 x Ø3mm holes, 102mm L x 19mm W
Cover-strip for 19mm wide evaporation boats , 8 x Ø3mm holes, 102mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S33W-1 Evaporation source S33, 0.13mm T Tungsten, 3.26 Volts, 144 Amps, 469 Watts, 1800⁰ C Temp
Qty:

pkg/5 €151,20
72-S33Ta-1 Evaporation source S33, 0.13mm T Tantalum, 94 Volts, 150 Amps, 307 Watts, 1600⁰ C Temp
Qty:

pkg/5 €245,70
72-S33Mo-1 Evaporation source S33, 0.13mm T Molybdenum, 1.46 Volts, 94 Amps, 137 Watts, 1400⁰ C Temp
Qty:

pkg/5 €113,40

Evaporation boat S34, raised middle part with 25.4 x 3 mm deep trough, 102mm L x 25.4mm W
Evaporation boat S34, raised middle part with 25.4 x 3 mm deep trough, 102mm L x 25.4mm W
Product # Unit Price* Add to Quote / Order
72-S34W-1 Evaporation source S34, 0.13mm T Tungsten, 3.46 Volts, 181 Amps, 626 Watts, 1800⁰ C Temp
Qty:

pkg/5 €86,90
72-S34W-2 Evaporation source S34, 0.25mm T Tungsten, 2.66 Volts, 259 Amps, 689 Watts, 1800⁰ C Temp
Qty:

pkg/5 €118,10
72-S34Ta-1 Evaporation source S34, 0.13mm T Tantalum, 3.82 Volts, 135 Amps, 516 Watts, 1600⁰ C Temp
Qty:

pkg/5 €245,70
72-S34Ta-2 Evaporation source S34, 0.25mm T Tantalum, 2.75 Volts, 177 Amps, 487 Watts, 1600⁰ C Temp
Qty:

pkg/5 €330,80
72-S34Mo-1 Evaporation source S34, 0.13mm T Molybdenum, 1.70 Volts, 123 Amps, 209 Watts, 1400⁰ C Temp
Qty:

pkg/5 €77,50
72-S34Mo-2 Evaporation source S34, 0.25mm T Molybdenum, 1.25 Volts, 169 Amps, 211 Watts, 1400⁰ C Temp
Qty:

pkg/5 €88,80

Evaporation boat S35, raised middle part with 25.4 x 12.7 x 2.4 mm trough, 82.5mm L x 12.7mm W
Evaporation boat S35, raised middle part with 25.4 x 12.7 x 2.4 mm trough, 82.5mm L x 12.7mm W
Product # Unit Price* Add to Quote / Order
72-S35W-1 Evaporation source S35, 0.13mm T Tungsten, 3.37 Volts, 140 Amps, 472 Watts, 1800⁰ C Temp
Qty:

pkg/5 €47,30
72-S35W-2 Evaporation source S35, 0.25mm T Tungsten, 2.26 Volts, 207 Amps, 468 Watts, 1800⁰ C Temp
Qty:

pkg/5 €59,50
72-S35Ta-1 Evaporation source S35, 0.13mm T Tantalum, 3.10 Volts, 91 Amps, 282 Watts, 1600⁰ C Temp
Qty:

pkg/5 €104,00
72-S35Ta-2 Evaporation source S35, 0.25mm T Tantalum, 2.13 Volts, 134 Amps, 285 Watts, 1600⁰ C Temp
Qty:

pkg/5 €132,30
72-S35Mo-1 Evaporation source S35, 0.13mm T Molybdenum, 1.44 Volts, 87 Amps, 125 Watts, 1400⁰ C Temp
Qty:

pkg/5 €36,90
72-S35Mo-2 Evaporation source S35, 0.25mm T Molybdenum, 1.05 Volts, 124 Amps, 130 Watts, 1400⁰ C Temp
Qty:

pkg/5 €41,60

Evaporation boat S36, raised middle part with 54 x 25.4 x 2.4 mm trough, 102mm L x 25.4mm W
Evaporation boat S36, raised middle part with 54 x 25.4 x 2.4 mm trough, 102mm L x 25.4mm W
Product # Unit Price* Add to Quote / Order
72-S36W-2 Evaporation source S36, 0.25mm T Tungsten, 3.01 Volts, 391 Amps, 1177 Watts, 1800⁰ C Temp
Qty:

pkg/5 €100,20
72-S36Ta-2 Evaporation source S36, 0.25mm T Tantalum, 2.98 Volts, 250 Amps, 745 Watts, 1600⁰ C Temp
Qty:

pkg/5 €283,50
72-S36Ta-3 Evaporation source S36, 0.38mm T Tantalum, 2.27 Volts, 322 Amps, 731 Watts, 1600⁰ C Temp
Qty:

pkg/5 €340,20
72-S36Mo-2 Evaporation source S36, 0.25mm T Molybdenum, 1.33 Volts, 251 Amps, 334 Watts, 1400⁰ C Temp
Qty:

pkg/5 €79,40

Evaporation boat S37, lowered middle part with Ø25.4 x 6.3mm dimple, 89mm L x 30mm W
Evaporation boat S37, lowered middle part with Ø25.4 x 6.3mm dimple, 89mm L x 30mm W
Product # Unit Price* Add to Quote / Order
72-S37Ta-1 Evaporation source S37, 0.13mm T Tantalum, 4.26 Volts, 222 Amps, 946 Watts, 1600⁰ C Temp
Qty:

pkg/5 €217,40
72-S37Ta-2 Evaporation source S37, 0.25mm T Tantalum, 3.21 Volts, 319 Amps, 1024 Watts, 1600⁰ C Temp
Qty:

pkg/5 €283,50
72-S37Mo-1 Evaporation source S37, 0.13mm T Molybdenum, 1.84 Volts, 201 Amps, 370 Watts, 1400⁰ C Temp
Qty:

pkg/5 €75,60
72-S37Mo-2 Evaporation source S37, 0.25mm T Molybdenum, 1.30 Volts, 289 Amps, 376 Watts, 1400⁰ C Temp
Qty:

pkg/5 €80,30

Evaporation boat S38, raised middle part with 32 x 14 x 3mm trough, 89mm L x 19mm W
Evaporation boat S38, raised middle part with 32 x 14 x 3mm trough, 89mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S38W-1 Evaporation source S38, 0.13mm T Tungsten, 3.98 Volts, 169 Amps, 673 Watts, 1800⁰ C Temp
Qty:

pkg/5 €67,10
72-S38W-2 Evaporation source S38, 0.25mm T Tungsten, 2.77 Volts, 254 Amps, 704 Watts, 1800⁰ C Temp
Qty:

pkg/5 €90,70
72-S38Ta-1 Evaporation source S38, 0.13mm T Tantalum, 4.01 Volts, 114 Amps, 457 Watts, 1600⁰ C Temp
Qty:

pkg/5 €170,10
72-S38Ta-2 Evaporation source S38, 0.25mm T Tantalum, 2.70 Volts, 197 Amps, 532 Watts, 1600⁰ C Temp
Qty:

pkg/5 €274,10
72-S38Mo-1 Evaporation source S38, 0.13mm T Molybdenum, 1.77 Volts, 114 Amps, 202 Watts, 1400⁰ C Temp
Qty:

pkg/5 €74,70
72-S38Mo-2 Evaporation source S38, 0.25mm T Molybdenum, 1.26 Volts, 164 Amps, 207 Watts, 1400⁰ C Temp
Qty:

pkg/5 €85,10

Evaporation boat S39 with Ø9.5 x 4.8mm dimple, 76mm L x 14mm W
Evaporation boat S39 with Ø9.5 x 4.8mm dimple, 76mm L x 14mm W
Product # Unit Price* Add to Quote / Order
72-S39Ta-1 Evaporation source S39, 0.13mm T Tantalum, 2.72 Volts, 106 Amps, 288 Watts, 1600⁰ C Temp
Qty:

pkg/5 €122,90
72-S39Ta-2 Evaporation source S39, 0.25mm T Tantalum, 1.95 Volts, 165 Amps, 322 Watts, 1600⁰ C Temp
Qty:

pkg/5 €160,70
72-S39Mo-1 Evaporation source S39, 0.13mm T Molybdenum, 1.32 Volts, 100 Amps, 132 Watts, 1400⁰ C Temp
Qty:

pkg/5 €28,40
72-S39Mo-2 Evaporation source S39, 0.25mm T Molybdenum, 0.90 Volts, 157.95 Amps, 141.68 Watts, 1400⁰ C Temp
Qty:

pkg/5 €52,00

Evaporation boat S40, lowered middle part with Ø12.7 x 4.8mm dimple, 89mm L x 19mm W
Evaporation boat S40, lowered middle part with Ø12.7 x 4.8mm dimple, 89mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S40W-1 Evaporation source S40, 0.13mm T Tungsten, 2.71 Volts, 155 Amps, 420 Watts, 1800⁰ C Temp
Qty:

pkg/5 €68,00
72-S40Ta-1 Evaporation source S40, 0.13mm T Tantalum, 2.61 Volts, 120 Amps, 313 Watts, 1600⁰ C Temp
Qty:

pkg/5 €170,10
72-S40Ta-2 Evaporation source S40, 0.25mm T Tantalum, 2.01 Volts, 156 Amps, 314 Watts, 1600⁰ C Temp
Qty:

pkg/5 €217,40
72-S40Mo-1 Evaporation source S40, 0.13mm T Molybdenum, 1.39 Volts, 105 Amps, 146 Watts, 1400⁰ C Temp
Qty:

pkg/5 €59,50
72-S40Mo-2 Evaporation source S40, 0.25mm T Molybdenum, 0.92 Volts, 149.42 Amps, 138.16 Watts, 1400⁰ C Temp
Qty:

pkg/5 €74,70

Evaporation boat S42, lowered middle part with Ø19 x 6.3mm dimple, 102mm L x 25.4mm W
Evaporation boat S42, lowered middle part with Ø19 x 6.3mm dimple, 102mm L x 25.4mm W
Product # Unit Price* Add to Quote / Order
72-S42W-1 Evaporation source S42, 0.13mm T Tungsten, 3.67 Volts, 155 Amps, 690 Watts, 1800⁰ C Temp
Qty:

pkg/5 €89,80
72-S42W-2 Evaporation source S42, 0.25mm T Tungsten, 2.82 Volts, 269 Amps, 759 Watts, 1800⁰ C Temp
Qty:

pkg/5 €133,20
72-S42W-3 Evaporation source S42, 0.38mm T Tungsten, 2.57 Volts, 508 Amps, 1306 Watts, 1800⁰ C Temp
Qty:

pkg/5 €143,60
72-S42Ta-2 Evaporation source S42, 0.25mm T Tantalum, 3.35 Volts, 281 Amps, 941 Watts, 1600⁰ C Temp
Qty:

pkg/5 €283,50
72-S42Ta-3 Evaporation source S42, 0.38mm T Tantalum, 2.61 Volts, 328 Amps, 856 Watts, 1600⁰ C Temp
Qty:

pkg/5 €368,60
72-S42Mo-2 Evaporation source S42, 0.25mm T Molybdenum, 1.58 Volts, 249 Amps, 393 Watts, 1400⁰ C Temp
Qty:

pkg/5 €73,70
72-S42Mo-3 Evaporation source S42, 0.38mm T Molybdenum, 1.27 Volts, 310 Amps, 394 Watts, 1400⁰ C Temp
Qty:

pkg/5 €92,60

Evaporation boat S43, lowered middle part with Ø25.4 x 6.3mm dimple, 102mm L x 32mm W
Evaporation boat S43, lowered middle part with Ø25.4 x 6.3mm dimple, 102mm L x 32mm W
Product # Unit Price* Add to Quote / Order
72-S43W-1 Evaporation source S43, 0.13mm T Tungsten, 4.59 Volts, 372 Amps, 1707 Watts, 1800⁰ C Temp
Qty:

pkg/5 €103,00
72-S43W-2 Evaporation source S43, 0.25mm T Tungsten, 3.53 Volts, 531 Amps, 1874 Watts, 1800⁰ C Temp
Qty:

pkg/5 €140,80
72-S43W-3 Evaporation source S43, 0.38mm T Tungsten, 2.91 Volts, 654 Amps, 1903Watts, 1800⁰ C Temp
Qty:

pkg/5 €155,00
72-S43Ta-2 Evaporation source S43, 0.25mm T Tantalum, 3.48 Volts, 338 Amps, 1176 Watts, 1600⁰ C Temp
Qty:

pkg/5 €321,30
72-S43Ta-3 Evaporation source S43, 0.38mm T Tantalum, 2.83 Volts, 416 Amps, 1177 Watts, 1600⁰ C Temp
Qty:

pkg/5 €500,90
72-S43Mo-2 Evaporation source S43, 0.25mm T Molybdenum, 1.52 Volts, 317 Amps, 482 Watts, 1400⁰ C Temp
Qty:

pkg/5 €75,60
72-S43Mo-3 Evaporation source S43, 0.38mm T Molybdenum, 1.22 Volts, 389 Amps, 475 Watts, 1400⁰ C Temp
Qty:

pkg/5 €98,30

Evaporation boat S44, lowered middle part with 32mm L x 3mm deep trough, 102mm L x 19mm W
Evaporation boat S44, lowered middle part with 32mm L x 3mm deep trough, 102mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S44W-1 Evaporation source S44, 0.13mm T Tungsten, 3.73 Volts, 182 Amps, 679 Watts, 1800⁰ C Temp
Qty:

pkg/5 €75,60
72-S44W-2 Evaporation source S44, 0.25mm T Tungsten, 2.87 Volts, 260 Amps, 746 Watts, 1800⁰ C Temp
Qty:

pkg/5 €102,10
72-S44W-3 Evaporation source S44, 0.38mm T Tungsten, 2.31 Volts, 327 Amps, 755 Watts, 1800⁰ C Temp
Qty:

pkg/5 €120,00
72-S44Ta-1 Evaporation source S44, 0.13mm T Tantalum, 3.80 Volts, 115 Amps, 437 Watts, 1600⁰ C Temp
Qty:

pkg/5 €207,90
72-S44Ta-2 Evaporation source S44, 0.25mm T Tantalum, 2.90 Volts, 178 Amps, 516 Watts, 1600⁰ C Temp
Qty:

pkg/5 €217,40
72-S44Ta-3 Evaporation source S44, 0.38mm T Tantalum, 2.38 Volts, 220 Amps, 524 Watts, 1600⁰ C Temp
Qty:

pkg/5 €311,90
72-S44Mo-1 Evaporation source S44, 0.13mm T Molybdenum, 2.05 Volts, 117 Amps, 240 Watts, 1400⁰ C Temp
Qty:

pkg/5 €71,80
72-S44Mo-2 Evaporation source S44, 0.25mm T Molybdenum, 1.33 Volts, 170 Amps, 226 Watts, 1400⁰ C Temp
Qty:

pkg/5 €82,20
72-S44Mo-3 Evaporation source S44, 0.38mm T Molybdenum, 1.06 Volts, 207 Amps, 219 Watts, 1400⁰ C Temp
Qty:

pkg/5 €101,10

Evaporation boat S45, lowered middle part with 56 x 25.4 x 3mm trough, 102mm L x 25.4mm W
Evaporation boat S45, lowered middle part with 56 x 25.4 x 3mm trough, 102mm L x 25.4mm W
Product # Unit Price* Add to Quote / Order
72-S45W-1 Evaporation source S45, 0.13mm T Tungsten, 4.41 Volts, 276 Amps, 1217 Watts, 1800⁰ C Temp
Qty:

pkg/5 €92,60
72-S45W-2 Evaporation source S45, 0.25mm T Tungsten, 3.39 Volts ,394 Amps, 1336 Watts, 1800⁰ C Temp
Qty:

pkg/5 €122,90
72-S45W-3 Evaporation source S45, 0.38mm T Tungsten, 2.72 Volts , 503 Amps, 1368 Watts, 1800⁰ C Temp
Qty:

pkg/5 €141,80
72-S45Ta-1 Evaporation source S45, 0.13mm T Tantalum, 4.60 Volts, 189 Amps, 869 Watts, 1600⁰ C Temp
Qty:

pkg/5 €245,70
72-S45Ta-2 Evaporation source S45, 0.25mm T Tantalum, 3.16 Volts, 257 Amps, 812 Watts, 1600⁰ C Temp
Qty:

pkg/5 €264,60
72-S45Ta-3 Evaporation source S45, 0.38mm T Tantalum, 2.55 Volts, 320 Amps, 816 Watts, 1600⁰ C Temp
Qty:

pkg/5 €491,40
72-S45Mo-1 Evaporation source S45, 0.13mm T Molybdenum, 2.11 Volts, 176 Amps, 371 Watts, 1400⁰ C Temp
Qty:

pkg/5 €71,80
72-S45Mo-2 Evaporation source S45, 0.25mm T Molybdenum, 1.45 Volts, 249 Amps, 361 Watts, 1400⁰ C Temp
Qty:

pkg/5 €85,10
72-S45Mo-3 Evaporation source S45, 0.38mm T Molybdenum, 1.29 Volts, 310 Amps, 400 Watts, 1400⁰ C Temp
Qty:

pkg/5 €98,30

Evaporation boat S46 with 28 x 30 x 1.6mm trough, 102mm L x 30mm W
Evaporation boat S46 with 28 x 30 x 1.6mm trough, 102mm L x 30mm W
Product # Unit Price* Add to Quote / Order
72-S46W-1 Evaporation source S46, 0.13mm T Tungsten, 4.34 Volts, 340 Amps, 1476 Watts, 1800⁰ C Temp
Qty:

pkg/5 €94,50
72-S46W-2 Evaporation source S46, 0.25mm T Tungsten, 3.34 Volts, 485 Amps, 1620 Watts, 1800⁰ C Temp
Qty:

pkg/5 €132,30
72-S46Ta-1 Evaporation source S46, 0.13mm T Tantalum, 4.87 Volts, 221 Amps, 1076 Watts, 1600⁰ C Temp
Qty:

pkg/5 €274,10
72-S46Ta-2 Evaporation source S46, 0.25mm T Tantalum, 3.20 Volts, 306 Amps, 979 Watts, 1600⁰ C Temp
Qty:

pkg/5 €415,80
72-S46Mo-1 Evaporation source S46, 0.13mm T Molybdenum, 2.10 Volts, 207 Amps, 435 Watts, 1400⁰ C Temp
Qty:

pkg/5 €87,90
72-S46Mo-2 Evaporation source S46, 0.25mm T Molybdenum, 1.49 Volts, 293 Amps, 437 Watts, 1400⁰ C Temp
Qty:

pkg/5 €104,00

Evaporation boat S47 with 60 x 14 x 3mm trough, 102mm L x 14mm W
Evaporation boat S47 with 60 x 14 x 3mm trough, 102mm L x 14mm W
Product # Unit Price* Add to Quote / Order
72-S47W-2 Evaporation source S47, 0.25mm T Tungsten, 2.87 Volts, 212 Amps, 608 Watts, 1800⁰ C Temp
Qty:

pkg/5 €59,50
72-S47W-3 Evaporation source S47, 0.38mm T Tungsten, 2.18 Volts, 287 Amps, 626 Watts, 1800⁰ C Temp
Qty:

pkg/5 €65,20
72-S47W-4 Evaporation source S47, 0.51mm T Tungsten, 2.00 Volts, 333 Amps, 666 Watts, 1800⁰ C Temp
Qty:

pkg/5 €74,70
72-S47Ta-2 Evaporation source S47, 0.25mm T Tantalum, 2.59 Volts, 144 Amps, 373 Watts, 1600⁰ C Temp
Qty:

pkg/5 €170,10
72-S47Ta-3 Evaporation source S47, 0.38mm T Tantalum, 2.06 Volts, 190 Amps, 391 Watts, 1600⁰ C Temp
Qty:

pkg/5 €245,70
72-S47Ta-4 Evaporation source S47, 0.51mm T Tantalum, 1.91 Volts, 210 Amps, 401 Watts, 1600⁰ C Temp
Qty:

pkg/5 €283,50
72-S47Mo-2 Evaporation source S47, 0.25mm T Molybdenum, 1.18 Volts, 142 Amps, 168 Watts, 1400⁰ C Temp
Qty:

pkg/5 €46,30
72-S47Mo-3 Evaporation source S47, 0.38mm T Molybdenum, 1.00 Volts, 179 Amps, 179 Watts, 1400⁰ C Temp
Qty:

pkg/5 €51,00

Evaporation boat S48 with 51 x 8 x 1.6mm trough, 98mm L x 8mm W
Evaporation boat S48 with 51 x 8 x 1.6mm trough, 98mm L x 8mm W
Product # Unit Price* Add to Quote / Order
72-S48W-1 Evaporation source S48, 0.13mm T Tungsten, 3.67 Volts, 81 Amps, 297 Watts, 1800⁰ C Temp
Qty:

pkg/5 €54,80
72-S48W-2 Evaporation source S48, 0.25mm T Tungsten, 2.82 Volts, 115 Amps, 324 Watts, 1800⁰ C Temp
Qty:

pkg/5 €58,60
72-S48Ta-2 Evaporation source S48, 0.25mm T Tantalum, 2.41 Volts, 81 Amps, 195 Watts, 1600⁰ C Temp
Qty:

pkg/5 €104,00
72-S48Mo-2 Evaporation source S48, 0.25mm T Molybdenum, 1.24 Volts, 75 Amps, 75 Watts, 1400⁰ C Temp
Qty:

pkg/5 €45,40

Evaporation boat S49 with 40 x 25 x 6.3 mm trough, 89mm L x 29mm W
Evaporation boat S49 with 40 x 25 x 6.3 mm trough, 89mm L x 29mm W
Product # Unit Price* Add to Quote / Order
72-S49W-2 Evaporation source S49, 0.25mm T Tungsten, 2.82 Volts, 269 Amps, 759 Watts, 1800⁰ C Temp
Qty:

pkg/5 €359,10
72-S49W-3 Evaporation source S49, 0.38mm T Tungsten, 2.57 Volts, 508 Amps, 1306 Watts, 1800⁰ C Temp
Qty:

pkg/5 €378,00
72-S49W-4 Evaporation source S49, 0.51mm T Tungsten, 1.97 Volts, 726 Amps, 1430 Watts, 1800⁰ C Temp
Qty:

pkg/5 €396,90
72-S49Ta-2 Evaporation source S49, 0.25mm T Tantalum, 3.35 Volts, 281 Amps, 941 Watts, 1600⁰ C Temp
Qty:

pkg/5 €453,60
72-S49Ta-3 Evaporation source S49, 0.38mm T Tantalum, 2.61 Volts, 328 Amps, 856 Watts, 1600⁰ C Temp
Qty:

pkg/5 €538,70
72-S49Ta-4 Evaporation source S49, 0.51mm T Tantalum, 2.35 Volts, 401 Amps, 942 Watts, 1600⁰ C Temp
Qty:

pkg/5 €633,20
72-S49Mo-2 Evaporation source S49, 0.25mm T Molybdenum, 1.58 Volts, 249 Amps, 393 Watts, 1400⁰ C Temp
Qty:

pkg/5 €189,00
72-S49Mo-3 Evaporation source S49, 0.38mm T Molybdenum, 1.27 Volts, 310 Amps, 394 Watts, 1400⁰ C Temp
Qty:

pkg/5 €207,90

Evaporation boat S50 with 40 x 25 x 6.3 mm trough, 102mm L x 29mm W
Evaporation boat S50 with 40 x 25 x 6.3 mm trough, 102mm L x 29mm W
Product # Unit Price* Add to Quote / Order
72-S50W-2 Evaporation source S50, 0.25mm T Tungsten, 1.36 Volts, 316 Amps, 430 Watts, 1800⁰ C Temp
Qty:

pkg/5 €368,60
72-S50W-3 Evaporation source S50, 0.38mm T Tungsten, 1.15 Volts, 386 Amps, 442 Watts, 1800⁰ C Temp
Qty:

pkg/5 €387,50
72-S50W-4 Evaporation source S50, 0.51mm T Tungsten, 0.95 Volts, 451 Amps, 428 Watts, 1800⁰ C Temp
Qty:

pkg/5 €406,40
72-S50Ta-2 Evaporation source S50, 0.25mm T Tantalum, 2.97 Volts, 340 Amps, 1010 Watts, 1600⁰ C Temp
Qty:

pkg/5 €463,10
72-S50Ta-3 Evaporation source S50, 0.38mm T Tantalum, 2 Volts, 366 Amps, 732 Watts, 1600⁰ C Temp
Qty:

pkg/5 €548,10
72-S50Ta-4 Evaporation source S50, 0.51mm T Tantalum, 2.08 Volts, 485 Amps, 1009 Watts, 1600⁰ C Temp
Qty:

pkg/5 €642,60
72-S50Mo-2 Evaporation source S50, 0.25mm T Molybdenum, 1.36 Volts, 316 Amps, 430 Watts, 1400⁰ C Temp
Qty:

pkg/5 €198,50
72-S50Mo-3 Evaporation source S50, 0.38mm T Molybdenum, 1.12 Volts, 417 Amps, 467 Watts, 1400⁰ C Temp
Qty:

pkg/5 €217,40

Evaporation boat S52, lowered middle part with 47x22x6,3mm trough, 73mm L x 22mm W
Evaporation boat S52, lowered middle part with 47x22x6,3mm trough, 73mm L x 22mm W
Product # Unit Price* Add to Quote / Order
72-S52W-2 Evaporation source S52, 0.25mm T Tungsten, 3.1 Volts, 330 Amps, 1023 Watts, 1800⁰ C Temp
Qty:

pkg/5 €132,30
72-S52W-4 Evaporation source S52, 0.51mm T Tungsten, 2.6 Volts, 354 Amps, 920 Watts, 1800⁰ C Temp
Qty:

pkg/5 €179,60
72-S52W-5 Evaporation source S52, 0.64mm T Tungsten, 2.1 Volts, 457 Amps, 457 Watts, 1800⁰ C Temp
Qty:

pkg/5 €207,90
72-S52Ta-2 Evaporation source S52, 0.25mm T Tantalum, 2.9 Volts, 218 Amps, 632 Watts, 1600⁰ C Temp
Qty:

pkg/5 €245,70
72-S52Mo-2 Evaporation source S52, 0.25mm T Molybdenum, 1.3 Volts, 198 Amps, 257 Watts, 1400⁰ C Temp
Qty:

pkg/5 €132,30

Evaporation boat S51, raised middle part with closed dimple and opening to the side, 89mm L x 19mm W
Evaporation boat S51, raised middle part with closed dimple and opening to the side, 89mm L x 19mm W
Product # Unit Price* Add to Quote / Order
72-S51W-2 Evaporation source S51, 0.25mm T Tungsten, 2.2 Volts, 388 Amps, 854 Watts, 1800⁰ C Temp
Qty:

pkg/5 €207,90
72-S51Ta-2 Evaporation source S51, 0.25mm T Tantalum, 2.42 Volts, 295 Amps, 714 Watts, 1600⁰ C Temp
Qty:

pkg/5 €425,30
72-S51Mo-2 Evaporation source S51, 0.25mm T Molybdenum, 1.2 Volts, 280 Amps, 336 Watts, 1400⁰ C Temp
Qty:

pkg/5 €170,10

Evaporation boat S53 with 108 x 25 x 4 mm trough, 152mm L x 29mm W
Evaporation boat S53 with 108 x 25 x 4 mm trough, 152mm L x 29mm W
Product # Unit Price* Add to Quote / Order
72-S53W-2 Evaporation source S53, 0.25mm T Tungsten, 1.9 Volts, 320 Amps, 608 Watts, 1800⁰ C Temp
Qty:

pkg/5 €217,40
72-S53W-4 Evaporation source S53, 0.51mm T Tungsten, 1.1 Volts, 320 Amps, 506 Watts, 1800⁰ C Temp
Qty:

pkg/5 €311,90
72-S53Ta-2 Evaporation source S53, 0.25mm T Tantalum, 3.2 Volts, 345 Amps, 1104 Watts, 1600⁰ C Temp
Qty:

pkg/5 €330,80
72-S53Ta-4 Evaporation source S53, 0.51mm T Tantalum, 2.2 Volts, 495 Amps, 1089 Watts, 1600⁰ C Temp
Qty:

pkg/5 €671,00
72-S53Mo-2 Evaporation source S53, 0.25mm T Molybdenum, 1.45 Volts, 320 Amps, 464 Watts, 1400⁰ C Temp
Qty:

pkg/5 €94,50



SEM Supplies

TEM Supplies

Calibration

Sample Preparation

AFM / SPM

  Product Menu with Images
  SEM Sample Stubs
  Carbon Tabs
  Sample Stub Adapters
  SEM Stage Adapters
  SEM Sample Holders
  SEM Preparation Stands
  Filaments / Cathodes
  Silicon Finder Grid
  Gatan 3View Pins
  FEI Volumescope Pins
  SEM Stub Storage Boxes
  Phenom Supplies
  JEOL NeoScope Supplies
  Hitachi TM Series Supplies
  Field & Lab Sampler Kits
  FlowView liquid sample Kit

Instruments

  Acoustic Enclosures
  Cressington SEM coaters
  TEM Sample Prep
  Diaphragm Pump
  Rotary vacuum Pump
  Precision diamond saw
  TEM Grids
  TEM Support Films
  Silicon Nitride Films
  K-Kit Wet Cell Holder
  Graphene Films
  TEM Grid Boxes
  Cryo Grid Boxes
  TEM Sample Staining
  3mm Embedding Tubes
  Filaments/Cathodes
  Eyelash Manipulators

Cryo Supplies

  Cryo Grid Boxes
  Other Cryo Supplies

FIB Supplies

  FIB Lift-out Grids
  FIB Low Profile Stubs
  FIB Grid Holders
  FIB Pre-tilt Holders
  FIB Pre-tilt stubs
  FIB Grid Boxes
  SEM / FIB Magn. Calib.
  SEM Res. Test Spec.
  EDS / WDS Calibration
  TEM Calibration
  AFM / SPM Calibration
  LM Magn. Calibration

Vacuum Supplies

  Vacuum Gauges
  KF/NW Vacuum Parts
  KF/NW Vacuum Hoses
  ISO Vacuum flange parts
  Vacuum Oil and Grease
  Vacuum Sealant
  Diaphragm Pump
  Rotary vacuum Pump
  Vacuum Sample Storage
  Vacuum Pick-Up Pens

Sample Coating Supplies

  Sputter Targets
  Carbon Rods & Fibers
  Quartz QCM Crystals
  SEM Sample Coating Fluid

Evaporation Supplies

  Thermal Evaporation Sources
  Evaporation Materials
  Supports & Substrates
  SEM Preparation Stands
  Tweezers
  Probes & Picks
  Applicators & Swabs
  Plastic Transfer Pipettes
  Cutting Tools / Scissors
  Conductive Paint/Cement
  Conductive Tapes & Tabs
  Non-Conductive Adhesives
  Sample Storage
  Hand Tools
  Sorting Wire Mesh
  Preparation Surfaces
  Cleaning / Gloves
  Conductive Metal Powders
  Metallographic Sample Prep
  AFM/SPM Discs
  AFM/SPM Disc Pick-up Tool
  AFM/SPM Holders
  AFM/SPM Disc Storage
  Cantilever Tweezers
  AFM/SPM Discs Tweezers
  Nano-Tec Mica Discs
  HOPG Substrates

Light Microscopy

  Correlative Cover Slips
  Glass Microscope Slides
  Glass Cover Slips
  Quartz Microscope Slides
  Quartz Cover Slips
  Black Metal Slides
  Slide Storage Boxes
  LM Calibration
  Plastic Transfer Pipettes
  Optical Lens Tissue
  Glass Petri Dishes
  Digital Microscope
  PTFE Beakers
