EM-Tec KF / NW stainless steel thread adapters to BSPT, NPT and metric ISO thread
Adapters to widely used pipe threads


examples
EM-Tec stainless vacuum thread adapters


Introduction

The EM-Tec stainless vacuum thread adapters allow for connecting standard NW/KF vacuum hardware onto installed vacuum lines, pipes, fittings and machines. We offer three different types of KF/NW thread adapters:

  • BSPT (British Standard Pipe) thread. It is a tapered thread (BSPT) and the diameter or size is denoted by the letter R which relates to the internal pipe diameter. The flank angle is 55 degrees. BSPT (tapered) is not compatible with BSPP (G) thread.
  • NPT (National Pipe Taper) thread. NPT is defined by ANSI/ASME (American) standard B1.20.1. It is a tapered thread with a flank angle of 60 degrees. The diameter or size related to the internal diameter of the pipe. NPT thread is not compatible with BSP thread.
  • Metric thread is a fine parallel thread either M20 or M14 with a pitch of 1.5mm. It is an ISO metric thread with a flank angle of 60 degrees. The female metric thread adapters are used for connecting pressure gauges.


Ordering information for the EM-Tec stainless steel thread adapters to BSPT pipe thread

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec KF vacuum flange adapters to BSPT female thread, stainless steel EM-Tec KF vacuum flange adapters to BSPT female thread, stainless steel
Product # Unit Price* Add to Quote / Order
61-110061-1604 EM-Tec DN16KF adapter to 1/2inch BSPT female thread, 304 stainless steel
Qty:

each €14,50
61-110061-2508 EM-Tec DN25KF adapter to 1 inch BSPT female thread, 304 stainless steel
Qty:

each €16,50



EM-Tec DN-KF flange adapter with male BSPT thread, 304 stainless steel EM-Tec DN-KF flange adapter with male BSPT thread, 304 stainless steel
Product # Unit Price* Add to Quote / Order
61-110161-1604 EM-Tec DN16KF adapter to 1/2 inch BSPT male thread , 304 stainless steel
Qty:

each €19,50
61-110161-2508 EM-Tec DN25KF adapter to 1 inch BSPT male thread , 304 stainless steel
Qty:

each €19,50



Ordering information for the EM-Tec stainless steel thread adapters to NPT pipe thread

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec KF flange adapters with 1/8inch female NPT thread, aluminium EM-Tec KF flange adapters with 1/8inch female NPT thread, aluminium
Product # Unit Price* Add to Quote / Order
61-010003-16 DN16KF adapter to 1/8inch NPT female thread, aluminium
Qty:

each €20,00
61-010003-40 DN40KF adapter to 1/8inch NPT female thread, aluminium
Qty:

each €23,50

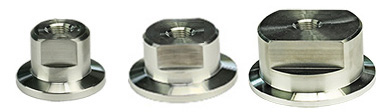

EM-Tec KF vacuum flange adapters to 1/8inch NPT female thread, stainless steel EM-Tec KF vacuum flange adapters to 1/8inch NPT female thread, stainless steel
Product # Unit Price* Add to Quote / Order
61-110003-16 DN16KF adapter to 1/8inch NPT female thread, 304 stainless steel
Qty:

each €26,75
61-110003-25 DN25KF adapter to 1/8inch NPT female thread, 304 stainless steel
Qty:

each €28,50
61-110003-40 DN40KF adapter to 1/8inch NPT female thread, 304 stainless steel
Qty:

each €35,00



EM-Tec KF vacuum flange adapters to 1/4 inch NPT female thread, 304 stainless steel EM-Tec KF vacuum flange adapters to 1/4 inch NPT female thread, 304 stainless steel
Product # Unit Price* Add to Quote / Order
61-110006-16 DN16KF adapter to 1/4 inch NPT female thread, 304 stainless steel
Qty:

each €28,75
61-110006-25 DN25KF adapter to 1/4 inch NPT female thread, 304 stainless steel
Qty:

each €32,50
61-110006-40 DN40KF adapter to 1/4 inch NPT female thread, 304 stainless steel
Qty:

each €38,50



EM-Tec KF vacuum flange adapters to 1/4inch NPT female thread, aluminium EM-Tec KF vacuum flange adapters to 1/4inch NPT female thread, aluminium
Product # Unit Price* Add to Quote / Order
61-010006-40 DN40KF adapter to 1/4inch NPT female thread, aluminium
Qty:

each €30,00



Ordering information for the EM-Tec stainless steel thread adapters to metric ISO thread

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec KF vacuum flange adapters to fine metric ISO female thread, 304 stainless steel EM-Tec KF vacuum flange adapters to fine metric ISO female thread, 304 stainless steel
Product # Unit Price* Add to Quote / Order
61-110060-1614 EM-Tec DN16KF adapter to ISO metric M14 x 1.5mm female thread, 304 stainless steel
Qty:

each €31,50
61-110060-1620 EM-Tec DN16KF adapter to ISO metric M20 x 1.5mm female thread, 304 stainless steel
Qty:

each €31,50
61-110060-2514 EM-Tec DN25KF adapter to ISO metric M14 x 1.5mm female thread, 304 stainless steel
Qty:

each €35,50
61-110060-2520 EM-Tec DN25KF adapter to ISO metric M20 x 1.5mm female thread, 304 stainless steel
Qty:

each €35,50



EM-Tec KF vacuum flange adapters to fine metric ISO male thread, 304 stainless steel EM-Tec KF vacuum flange adapters to fine metric ISO male thread, 304 stainless steel
Product # Unit Price* Add to Quote / Order
61-110160-1614 EM-Tec DN16KF adapter to ISO metric M14 x 1.5mm male thread, 304 stainless steel
Qty:

each €36,50
61-110160-2014 EM-Tec DN16KF adapter to ISO metric M20 x 1.5mm male thread, 304 stainless steel
Qty:

each €36,50
61-110160-2514 EM-Tec DN25KF adapter to ISO metric M14 x 1.5mm male thread, 304 stainless steel
Qty:

each €39,75
61-110160-2520 EM-Tec DN25KF adapter to ISO metric M20 x 1.5mm male thread, 304 stainless steel
Qty:

each €39,75
