EM-Tec metal wires and materials for vacuum evaporation
high purity materials for EM sample preparation


Examples:

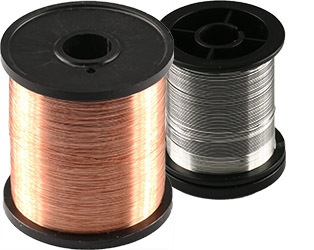

EM-Tec metal wires and materials for vacuum evaporation


Introduction

The EM-Tec high purity wires are especially selected for vacuum coating of EM samples. The wires can be easily cut to size and used in evaporation coils, boats or filaments. The small amount of material and the relatively large contact area with the evaporation sources enables evaporation with low power evaporation power supplies.
For shadowing applications used with TEM samples, the thin metal wire could be wound around the end of the carbon rods to simultaneously evaporate metal and carbon.
Due to the high melting temperature, the tungsten wires can also be used to make evaporation filaments to evaporate small amounts of other metals.


Available metal wires for vacuum deposition

Material

Symbol

Wire Diameter

Purity

Aluminium

Al

0.5 mm

99.9 %

Copper

Cu

0.2 mm

99.9%

Gold

Au

0.2mm

99.99%

Gold / Palladium, 60/40 wt% Au/Pd

Au / Pd

0.2 mm

99.99%

Gold / Palladium, 80/20 wt% Au/Pd

Au / Pd

0.2mm

99.99%

Palladium

Pd

0.2mm

99.95%

Platinum

Pt

0.2mm

99.95%

Platinum / Palladium, 80/20 Pt/Pd

Pt / Pd

0.2mm

99.95%

Platinum / Iridium, 95/5 wt% Pt/Ir

Pt / Ir

0.2mm

99.95%

Nichrome 60, 60/16/24 wt% Ni/Cr/Fe

Ni / Cr / Fe

0.25 mm

99.5%

Nichrome 80, 80/20 wt% Ni/Cr

Ni / Cr

0.25 mm

99.5%

Silver

Ag

0.2 mm

99.99%

Tungsten

W

0.1 / 0.2 / 0.5 mm

99.95%



Ordering Information for EM-Tec metal wires for vacuum evaporation

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Silver evaporation wire, 0.2mm diameter, 99.99% purity Silver evaporation wire, 0.2mm diameter, 99.99% purity
Product # Unit Price* Add to Quote / Order
70-AG0201 1 meter €12,90
Qty:

70-AG0203 3 meter €29,90
Qty:

70-AG0210 10 meter €79,90
Qty:



Aluminium evaporation wire, 0.5mm diameter, 99.9% purity Aluminium evaporation wire, 0.5mm diameter, 99.9% purity
Product # Unit Price* Add to Quote / Order
70-AL0575 75 meter €39,50
Qty:



Copper evaporation wire, 0.2mm diameter, 99.9% purity Copper evaporation wire, 0.2mm diameter, 99.9% purity
Product # Unit Price* Add to Quote / Order
70-CU0220 20 meter €9,90
Qty:



Gold/Palladium evaporation wire, 60/40 wt% Au/Pd, 0.2mm diameter, 99.99% purity Gold/Palladium evaporation wire, 60/40 wt% Au/Pd, 0.2mm diameter, 99.99% purity
Product # Unit Price* Add to Quote / Order
70-AP0201 1 meter €114,00
Qty:

70-AP0203 3 meter €260,00
Qty:

70-AP0210 10 meter €780,00
Qty:



Gold/Palladium evaporation wire, 80/20 wt% Au/Pd, 0.2mm diameter, 99.99% purity Gold/Palladium evaporation wire, 80/20 wt% Au/Pd, 0.2mm diameter, 99.99% purity
Product # Unit Price* Add to Quote / Order
70-AP0301 1 meter €114,00
Qty:

70-AP0303 3 meter €260,00
Qty:

70-AP0310 10 meter €780,00
Qty:



Gold evaporation wire, 0.2mm diameter, 99.99% purity Gold evaporation wire, 0.2mm diameter, 99.99% purity
Product # Unit Price* Add to Quote / Order
70-AU0201 1 meter €114,00
Qty:

70-AU0203 3 meter €260,00
Qty:

70-AU0210 10 meter €780,00
Qty:



Palladium evaporation wire, 0.2mm diameter, 99.99% purity Palladium evaporation wire, 0.2mm diameter, 99.99% purity
Product # Unit Price* Add to Quote / Order
70-PD0201 1 meter €114,00
Qty:

70-PD0203 3 meter €260,00
Qty:

70-PD0210 10 meter €780,00
Qty:



Platinum evaporation wire, 0.2mm diameter, 99.99% purity Platinum evaporation wire, 0.2mm diameter, 99.99% purity
Product # Unit Price* Add to Quote / Order
70-PT0201 1 meter €116,00
Qty:

70-PT0203 3 meter €265,00
Qty:

70-PT0210 10 meter €795,00
Qty:



Platinum/Iridium evaporation wire 95/5 wt% Pt/Ir, 0.2mm diameter, 99.99% purity Platinum/Iridium evaporation wire 95/5 wt% Pt/Ir, 0.2mm diameter, 99.99% purity
Product # Unit Price* Add to Quote / Order
70-PI0201 1 meter €118,00
Qty:

70-PI0203 3 meter €270,00
Qty:

70-PI0210 10 meter €800,00
Qty:



Platinum/Palladium evaporation wire, 80/20 wt% Pt/Pd, 0.2mm diameter, 99.99% purity Platinum/Palladium evaporation wire, 80/20 wt% Pt/Pd, 0.2mm diameter, 99.99% purity
Product # Unit Price* Add to Quote / Order
70-PP0201 1 meter €118,00
Qty:

70-PP0203 3 meter €270,00
Qty:

70-PP0210 10 meter €800,00
Qty:



Nichrome 60 evaporation/heating wire, 60/16/24 wt% Ni/Cr/Fe, 0.25mm diameter x 30 meter L, 99.5% purity Nichrome 60 evaporation/heating wire, 60/16/24 wt% Ni/Cr/Fe, 0.25mm diameter x 30 meter L, 99.5% purity
Product # Unit Price* Add to Quote / Order
70-NC0230 30 meter €11,50
Qty:



Nichrome 80 evaporation/heating wire, 80/20 wt% Ni/Cr, 0.25mm diameter x 20 meter L, 99.5% purity Nichrome 80 evaporation/heating wire, 80/20 wt% Ni/Cr, 0.25mm diameter x 20 meter L, 99.5% purity
Product # Unit Price* Add to Quote / Order
70-NC0220 20 meter €9,90
Qty:



Tungsten evaporation/heating wire, 0.1mm diameter x 20 meter L, 99.5% purity Tungsten evaporation/heating wire, 0.1mm diameter x 20 meter L, 99.5% purity
Product # Unit Price* Add to Quote / Order
70-WO0120 20 meter €37,50
Qty:



Tungsten evaporation/heating wire, 0.2mm diameter x 10 meter L, 99.5% purity Tungsten evaporation/heating wire, 0.2mm diameter x 10 meter L, 99.5% purity
Product # Unit Price* Add to Quote / Order
70-WO0210 10 meter €37,50
Qty:



Tungsten evaporation/heating wire, 0.5mm diameter x 5 meter L, 99.5% purity Tungsten evaporation/heating wire, 0.5mm diameter x 5 meter L, 99.5% purity
Product # Unit Price* Add to Quote / Order
70-WO0505 5 meter €37,50
Qty:
