Micro-Tec DS-150 low speed precision diamond saw
precision cutting and cross sectioning of hard, brittle and soft materials




Introduction

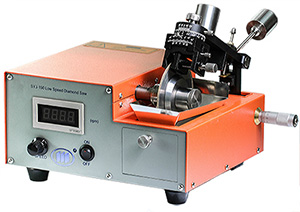

The Micro-Tec DS-150 low speed precision diamond sawis a valuable tool for cutting a wide variety of materials and composites. This precision saw is useful for cutting samples, embeddings and for making cross sections. The Micro-Tec DS-150 low speed precision diamond saw enables precise and deformation-free cutting of hard and brittle materials, fragile materials, soft materials and composite materials with reduced or low surface deformation. The wide selection of sample holders enables cutting virtually any sample shape. Together with mult-axis movements of the cutting arm holder precise thickness of the sample and cutting angle can be selected with great precision.

The samples are mounted on a sample holder which is attached to the front of the cutting arm. The load on the cutting wheel can be adjusted by adding the appropriate weight on the cutting arm and adjusting the counterbalancing weight. The sample position is selected by moving the cutting arm to the desired position and can be precisely adjusted (or precise thickness selected) by adjusting the micrometer. The auto shut-off switch is located at the back with an adjustable screw which can be adjusted depending on blade diameter and cutting thickness. The cutting speed can be adjusted to achieve optimum and deformation-free cutting whilst avoiding loading the cutting blade.

The Micro-Tec DS-150 precision low speed diamond has been designed to use diamond blades (sintered diamond), silicon-carbide and Al2O3 blades. The diamond blades are used for many applications including hard and brittle materials, ceramics and composites. The SiC and AlsO3 blades can be used for ferrous and non-ferrous softer metals.

As cutting coolant we suggest to use an oil-based coolant or an W10-30 grade motor oil. When oil based coolant is not permitted, a waterbased coolant can be used, but the instrument should be dried to avoid corrosion. For cutting porous and/or water soluble samples we suggest using isopropanol as cutting fluid (in a fume hood and regularly adding isopropanol due the high evaporation rate.


Specifications of the Micro-Tec DS-150 low speed precision diamond saw


Product

Micro-Tec DS-150

Max. cutting depth

32 mm (1-1/4 inch)

Cutting width

24 mm

Cutting width precision

0.01mm

Cutting speed

Variable 40 - 600 rpm

Cutting arm & holder adjustments

+/- 25mm on pivot axis
360 degrees rotation
+/- 18 degrees tilt

Balancing weights

Front: 105 / 239 / 344 gr
Back: 265 gr

Cutting blade size

Ø 76 – 102 mm (Ø 3 – 4 inch)

Arbor diameter

Ø 12.7 mm / ½ inch

Cutting blade types

Diamond, SiC & Al2O3

Service temperature

10 – 40 °C

Voltage

AC 230 / 115 V, switchable

Power

50 W

Dimensions (L x W x H)

330 x330 x 230 mm

Weight

12 kg



Features of the Micro-Tec DS-150 low speed precision diamond saw

  • Low impact cutting of samples for reduced surface deformation
  • Easy cutting weight adjustment
  • Robust cutting arm with precision bearing and multi-directional adjustments
  • Precise cutting width and angle adjustments
  • Cooling reservoir compatible with water based, oil-based and isopropanol based coolants
  • Wide selection of sample holders
  • Auto shut-off
  • Precise selection of cutting speed with digital speed display



Micro-Tec DS-155 right angle bracket for additional sample holders

The Micro-Tec DS-155 90 degrees bracket has been designed to make use of the wide selection of compatible sample holders for the Micro-Tec DS-150 diamond saw. The Micro-Tec DS-155 bracket inclueds a dovetail for quick connection to the cutting arm and an M4 screw to connect a wide selection of sample holders. This is also compatible with other brands of diamond saws such as the SYJ-150, SYJ-160, Smartcut 4005



Ordering information for the Micro-Tec DS-150 low speed precision diamond saw:

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Micro-Tec SYJ-150 precision low speed diamond saw, 115/230V Micro-Tec SYJ-150 precision low speed diamond saw, 115/230V
Product # Unit Price* Add to Quote / Order
19-030150 each €4650,00
Qty:



Micro-Tec DS-155 right angle bracket for additional sample holders Micro-Tec DS-155 right angle bracket for additional sample holders
Product # Unit Price* Add to Quote / Order
29-030155 each €495,00
Qty:



Micro-Tec DC-103 diamond wafering blade, Ø100 x 0.3mm for soft ceramics / minerals with 3-7 Mohs hardness Micro-Tec DC-103 diamond wafering blade, Ø100 x 0.3mm for soft ceramics / minerals with 3-7 Mohs hardness
Product # Unit Price* Add to Quote / Order
29-030103 each €24,50
Qty:



Ordering information for sample holders compatible with the Micro-Tec DS-155 90 degrees bracket:

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec DS26 metallographic mount holder for Ø25mm / Ø1inch mounts, M4 EM-Tec DS26 metallographic mount holder for Ø25mm / Ø1inch mounts, M4
Product # Unit Price* Add to Quote / Order
29-030326 each €25,50
Qty:



EM-Tec DS32 metallographic mount holder for Ø30mm / Ø32mm / Ø1-1/4inch mounts, M4 EM-Tec DS32 metallographic mount holder for Ø30mm / Ø32mm / Ø1-1/4inch mounts, M4
Product # Unit Price* Add to Quote / Order
29-030332 each €25,50
Qty:



EM-Tec DS33 bulk sample holder for up to Ø32mm, aluminium, M4 EM-Tec DS33 bulk sample holder for up to Ø32mm, aluminium, M4
Product # Unit Price* Add to Quote / Order
29-030333 each €47,00
Qty:



EM-Tec DS16 bulk sample holder for up 16mm, aluminium, M4 EM-Tec DS16 bulk sample holder for up 16mm, aluminium, M4
Product # Unit Price* Add to Quote / Order
29-033316 each €33,50
Qty:



EM-Tec DS25 bulk sample holder for up 26mm, aluminium, M4 EM-Tec DS25 bulk sample holder for up 26mm, aluminium, M4
Product # Unit Price* Add to Quote / Order
29-030325 each €47,00
Qty:



EM-Tec DS38 bulk sample holder for up 38mm, aluminium, M4 EM-Tec DS38 bulk sample holder for up 38mm, aluminium, M4
Product # Unit Price* Add to Quote / Order
29-030327 each €57,00
Qty:



EM-Tec DS22 compact vise type sample holder for up to 22mm, M4 EM-Tec DS22 compact vise type sample holder for up to 22mm, M4
Product # Unit Price* Add to Quote / Order
29-030300 each €107,50
Qty:



EM-Tec DS24 gripping stub holder with clamping plate, 0-4mm, aluminium, M4 EM-Tec DS24 gripping stub holder with clamping plate, 0-4mm, aluminium, M4
Product # Unit Price* Add to Quote / Order
29-030334 each €27,50
Qty:



EM-Tec DS6 mini M4 cylinder stub vise clamp 0-6mm, Ø15x10mm, M4 EM-Tec DS6 mini M4 cylinder stub vise clamp 0-6mm, Ø15x10mm, M4
Product # Unit Price* Add to Quote / Order
29-030306 each €18,50
Qty:



EM-Tec DS15 M4 cylinder stub vise clamp 0-16mm, Ø25x10mm, M4 EM-Tec DS15 M4 cylinder stub vise clamp 0-16mm, Ø25x10mm, M4
Product # Unit Price* Add to Quote / Order
29-030315 each €24,50
Qty:



EM-Tec DS5 mini vise sample clamp, M4 EM-Tec DS5 mini vise sample clamp, M4
Product # Unit Price* Add to Quote / Order
29-033209 each €38,50
Qty:



EM-Tec DS1 universal thin section and slide holder, M4 EM-Tec DS1 universal thin section and slide holder, M4
Product # Unit Price* Add to Quote / Order
29-030360 each €175,00
Qty:



EM-Tec DS4 multi pin stub holder for 4 pin stubs, Ø31.5x10.5mm, M4 EM-Tec DS4 multi pin stub holder for 4 pin stubs, Ø31.5x10.5mm, M4
Product # Unit Price* Add to Quote / Order
29-030314 each €24,50
Qty:



Mounting stub Ø25x6mm, M4, aluminium Mounting stub Ø25x6mm, M4, aluminium
Product # Unit Price* Add to Quote / Order
29-034025-10 pkg/10 €14,75
Qty:



Mounting stub Ø32x6mm, M4, aluminium Mounting stub Ø32x6mm, M4, aluminium
Product # Unit Price* Add to Quote / Order
29-034032-10 pkg/10 €19,00
Qty:
