Micro-Tec stainless steel vacuum chambers for degassing
Ideal for degassing epoxy resins, silicones and extracting hydrocarbons

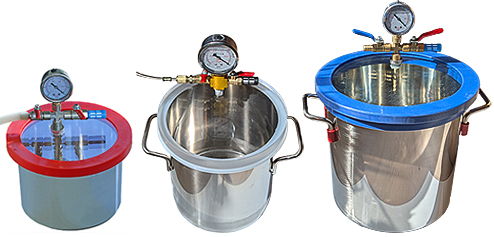

Micro-Tec stainless steel vacuum chamber for degassing
Micro-Tec stainless steel vacuum chambers for degassing
Introduction

The Micro-Tec VC series stainless steel vacuum chambers have been designed for degassing cold metallographic embeddings, epoxy resins, urethane compounds, silicone rubber and/or extracting hydrocarbons from SEM samples or samples prepared with double sided tape or tabs. They are ideal for metallography, microscopy, R&D labs and/or small production facilities. The Micro-Tec VC series stainless steel vacuum chambers are equally suited to store specimens or parts under vacuum since they are capable of holding vacuum for at least 3 months (depending on outgassing of the specimens). We advise to pump vacuum once a month to maintain a lower pressure.

The pumping and venting lines are integrated in the clear transparent lid together with an indicating vacuum gauge. Both the pumping and venting line include a ball valve for quick opening and closing. The venting line also includes a filter muffler for noise reduction and clean venting.

Cold embedding resins, epoxy resin or silicon rubber mixtures should be degassed to remove air bubbles from the material by pumping and venting. The transparent lid allows for easy observation of the degassing process – in case of too much frothing, the chamber should be vented.
The vacuum chambers can also be used to extract/reduce hydrocarbons in SEM samples. By placing the samples in the vacuum chamber and pumping vacuum, hydrocarbons can be partly removed before placing the samples in the SEM. This can reduce contamination on the sample surface. Useful for adhesives or filters with oil. Not suitable for solvents like acetone, MEK and other solvents not compatible with acrylic (PMMA) material.

Features of the Micro-Tec stainless steel vacuum chambers:

  • Made from robust stainless steel with transparent  lid
  • Integrated vacuum gauge indicator in lid
  • Pumping valve with hose connector
  • Venting valve with filter muffler
  • Sturdy soft silicone seal area on lid
  • Easy process control through clear lid

Specifications of the Micro-Tec stainless steel vacuum chambers:

Product #

13-004190

13-004192

13-004194

Volume

3  ltr

6 ltr

12 ltr

Chamber diameter

180 mm

195 mm

230 mm

Chamber height

125 mm

200 mm

250 mm

Lid diameter (incl. seal

220 mm

220 mm

285 mm

Total height

275 mm

335 mm

365 mm

Weight

1.5 kg

2.5 kg

3.9 kg

Hose connection to pump

Ø10 mm

Ø8 mm

Ø10 mm

Lid material

Acrylic

Acrylic

Hardened glass

Wall thickness / material

1.5mm stainless steel

Seal

Soft silicone rubber

Integrated vacuum gauge

0 to -1 Bar (0 to -30 inch Hg)

Service temperature

5 - 70 °C



The Micro-Tec stainless steel vacuum chambers are available as standalone unit or as a set with the Micro-Tec  MP950D dual stage oil-free diaphragm pump (Vacuum >50 mbar and pumping speed 60L min)


Ordering information for the Micro-Tec stainless steel vacuum chambers

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Micro-Tec VC190 stainless steel vacuum chamber, 3 ltr, with vacuum indicator gauge and pump/vent line with ball valves Micro-Tec VC190 stainless steel vacuum chamber, 3 ltr, with vacuum indicator gauge and pump/vent line with ball valves
Product # Unit Price* Add to Quote / Order
13-004190 each €145,00
Qty:



Micro-Tec VC200 stainless steel vacuum chamber, 6 ltr, with vacuum indicator gauge and pump/vent line with ball valves Micro-Tec VC200 stainless steel vacuum chamber, 6 ltr, with vacuum indicator gauge and pump/vent line with ball valves
Product # Unit Price* Add to Quote / Order
13-004192 each €175,00
Qty:



Micro-Tec VC250 stainless steel vacuum chamber, 12 ltr, with vacuum indicator gauge and pump/vent line with ball valves Micro-Tec VC250 stainless steel vacuum chamber, 12 ltr, with vacuum indicator gauge and pump/vent line with ball valves
Product # Unit Price* Add to Quote / Order
13-004194 each €225,00
Qty:



Ordering information for the Micro-Tec vacuum chambers complete with pumping system

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

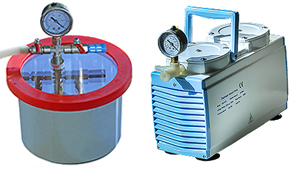

Micro-Tec VC190 stainless steel Vacuum chamber 3 ltr set, complete with Micro-Tec MP950D dual stage diaphragm pump and connection hose, 230V / 50Hz Micro-Tec VC190 stainless steel Vacuum chamber 3 ltr set, complete with Micro-Tec MP950D dual stage diaphragm pump and connection hose, 230V / 50Hz
Product # Unit Price* Add to Quote / Order
13-004195 each €765,00
Qty:

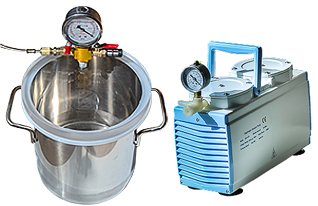

Micro-Tec VC200 stainless steel Vacuum chamber 6 ltr set, complete with Micro-Tec MP950D dual stage diaphragm pump and connection hose, 230V / 50Hz Micro-Tec VC200 stainless steel Vacuum chamber 6 ltr set, complete with Micro-Tec MP950D dual stage diaphragm pump and connection hose, 230V / 50Hz
Product # Unit Price* Add to Quote / Order
13-004197 each €810,00
Qty:

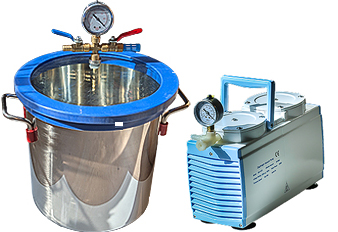

Micro-Tec VC250 stainless steel Vacuum chamber 12 ltr set, complete with Micro-Tec MP950D dual stage diaphragm pump and connection hose, 230V / 50Hz Micro-Tec VC250 stainless steel Vacuum chamber 12 ltr set, complete with Micro-Tec MP950D dual stage diaphragm pump and connection hose, 230V / 50Hz
Product # Unit Price* Add to Quote / Order
13-004199 each €850,00
Qty:



Ordering information for options for dual stage diaphragm vacuum pump

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Micro-Tec MP950D dual stage diaphragm vacuum pump, 230v/50Hz Micro-Tec MP950D dual stage diaphragm vacuum pump, 230v/50Hz
Product # Unit Price* Add to Quote / Order
60-003950 each €655,00
