speciale aanbieding symbol


Special Sale Items


The special sale items are offered at greatly reduced prices and offer considarable savings. The special sale products are new, not  previously used, and either discontinued items or overstocked products. Subject to availability of stock on hand. Sales for sale items are final.



Ordering Information for special Sale Items

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec single sided conductive copper SEM tapes
EM-Tec single sided conductive copper SEM tapes Single sided conductive copper tapes for SEM / FIB applications. Indispensable for making ground contacts between the sample surface and SEM stub or SEM sample holder.  The tape is made with soft copper foil which is easily molded to follow the shape of the sample. Highly electrically conductive tape with conductive pressure sensitive acrylic adhesive. Resistance through copper < 1 Ohm and this tape has a high initial tack to provide good adhesion. It is recommended to assert pressure on the tape to improve conductivity. Available in the practical widths of 3, 10,12, 20, 25 and 50 mm with a length of 30m. Conductive adhesive side covered with siliconised backing paper liner. Clean 76mm diameter plastic core.

Specifications:

Tape material  Copper, 99.98% purity
Adhesive  Conductive pressure sensitive acrylic adhesive
Copper tape thickness 0.035mm
Adhesive thickness  0.025mm
Total tape thickness 0.06mm
Backing paper thickness 0.09mm
Resistance < 1 Ohm (through copper)
Adhesive strength  14N / 25mm
Tape strength   45N / mm
Use temperature range  -10 to +120 °C

Length

Width

33m

Choice of 3, 10, 12, 20, 25 or 50mm
Core diameter  76mm (3”)
Product # Unit Price* Add to Quote / Order
15-000125 EM-Tec single sided conductive copper SEM tape 25mm x 30m
Qty:

each €20,00
15-000150 EM-Tec single sided conductive copper SEM tape 50mm x 30m
Qty:

each €40,00


EM-Tec FIB lift-out grids, Mo, 2 posts
EM-Tec FIB lift-out grids, Mo, 2 posts The molybdenum EM-Tec FIB lift-out grids with 2 posts are sturdier than the copper grids, they are also used where copper would interfere with investigation of the TEM lamella. The thickness of the standard Mo FIB lift-out grids is 45-55µm. Due to the material and the manufacturing process, the side walls of the Mo FIB lift-out grids are rougher than the those of the Cu FIB lift-out grids. Use of the FIB is therefore needed to make the sidewalls smoother. Unique indicators mark each individual post. Packaging size is vial/25.
Product # Unit Price* Add to Quote / Order
25-020200 EM-Tec FIB lift-out grids, Mo, 2 posts
Qty:

vial/25 €49,50


EM-Tec FIB lift-out grids, Mo, 3 posts
EM-Tec FIB lift-out grids, Mo, 3 posts The molybdenum EM-Tec FIB lift-out grids with 3 posts are sturdier than the copper grids, they are also used where copper would interfere with investigation of the TEM lamella. The thickness of the standard Mo FIB lift-out grids is 45-55µm. Due to the material and the manufacturing process, the side walls of the Mo FIB lift-out grids are rougher than the those of the Cu FIB lift-out grids. Use of the FIB is therefore needed to make the sidewalls smoother. Unique indicators mark each individual post. Packaging size is vial/25.
Product # Unit Price* Add to Quote / Order
25-020300 EM-Tec FIB lift-out grids, Mo, 3 posts
Qty:

vial/25 €49,50


EM-Tec FIB lift-out grids, Mo, 4 posts
EM-Tec FIB lift-out grids, Mo, 4 posts The molybdenum EM-Tec FIB lift-out grids with 4 posts are sturdier than the copper grids, they are also used where copper would interfere with investigation of the TEM lamella. The thickness of the standard Mo FIB lift-out grids is 45-55µm. Due to the material and the manufacturing process, the side walls of the Mo FIB lift-out grids are rougher than the those of the Cu FIB lift-out grids. Use of the FIB is therefore needed to make the sidewalls smoother. Unique indicators mark each individual post. Packaging size is vial/25.
Product # Unit Price* Add to Quote / Order
25-020400 EM-Tec FIB lift-out grids, Mo, 4 posts
Qty:

vial/25 €49,50


Hitachi Ø100x4.5mm M4 cylinder SEM sample stub with 12 extra M4 threaded holes, aluminium
Hitachi Ø100x4.5mm M4 cylinder SEM sample stub with 12 extra  M4 threaded holes, aluminium Hitachi Ø100x4.5mm M4 cylinder SEM sample stub with 12 extra M4 threaded holes, aluminium
Product # Unit Price* Add to Quote / Order
10-004100-1S Hitachi Ø100x4.5mm M4 cylinder SEM sample stub with 12 extra M4 threaded holes, aluminium
Qty:

pkg/1 €32,50

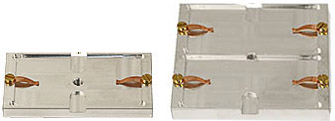

EM-Tec G1 geological thin section holders for petrographic slide up to 47x27mm
EM-Tec G1 geological thin section holders for petrographic slide up to 47x27mm De EM-Tec geological thin section holders are compatible with geological thin sections or petrographic slides up to 27x47mm:
• EM-Tec G1 for a single petrographic slide
• EM-Tec G2 for two petrographic slides
The geological thin sections are placed in pockets and held firmly with two S-Clips. Available standard 3.2mm pin or with M4 threaded hole (compatible with the EM-Tec stage adapters and Hitachi SEMs).
Holders for the larger 28x48mm petrographic slides can be found on this page: EM-Tec geological thin section for up to 28x48mm and larger.
Product # Unit Price* Add to Quote / Order
12-000261 EM-Tec G1 single geological thin section holder for one petrographic slide up to 47x27mm, pin
Qty:

each €37,50
12-000262 EM-Tec G2 twin geological thin sections holder for 2 petrographic slides up to 27x47mm, pin
Qty:

each €47,50
12-000361 EM-Tec G1 single geological thin section holder for one petrographic slide up to 47x27mm, M4
Qty:

each €35,00
12-000362 EM-Tec G2 twin geological thin sections holder for 2 petrographic slides up to 47x27mm, M4
Qty:

each €45,00


Hitachi Ø25x6mm M4 cylinder SEM sample stub, satin finish, aluminium
Hitachi Ø25x6mm M4 cylinder SEM sample stub, satin finish, aluminium Hitachi Ø25x6mm M4 cylinder SEM sample stub, satin finish, aluminium
Product # Unit Price* Add to Quote / Order
10-004025-100S Hitachi Ø25x6mm M4 cylinder SEM sample stub, satin finish, aluminium
Qty:

pkg/100 €102,50
10-004025-50S Hitachi Ø25x6mm M4 cylinder SEM sample stub, satin finish, aluminium
Qty:

pkg/50 €54,50


Ø57mm disc type high purity EM-Tec sputter targets for sputter coaters
Ø57mm disc type high purity EM-Tec sputter targets for sputter coaters Ø57mm disc type high purity EM-Tec sputter targets for sputter coaters: Agar Manual / Auto, Cressington 108 / 108auto / 108autoSE / 208HR, Emitech SC7620 / SC7610, ISI 5400, JEOL JFC 1200 / 1300 / 1400 / 1600 / 2300HR / JEC-3000FC, HoYeon HC21, Pelco SC4 / SC5 / SC6 /SC7, Polaron 5000 / 5200 / 5400 / 5800, Quorum Q150 / Q300 / SC7620 and SPI Module.
Product # Unit Price* Add to Quote / Order
70-CU5720S Copper Sputter Target, Ø57 x 0.50mm Disc, 99.95% Cu
Qty:

each €50,00
70-FE5705S Iron Sputter Target, Ø57 x 0.125mm, 99.5% Fe
Qty:

each €50,00
70-PB5705S Lead Target, Ø57 x 0.125mm Disc, 99.95% Pb
Qty:

each €50,00
70-SN5705S Tin Sputter Target, Ø57 x 0.125mm Disc, 99.95% Sn
Qty:

each €50,00


*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Value-Tec VP2 probe with bend tip, hexagonal handle, 410 stainless steel
Value-Tec VP2 probe with bend tip, hexagonal handle, 410 stainless steel
Value-Tec stainless steel probe with bend tip and hexagonal handle. Needle diameter is 1.4mm, handle is 6mm across with a length of 160mm. Made from hardened AISI 410 stainless steel.
Product # Unit Price* Add to Quote / Order
52-001071-S each €2,25
Qty:



Value-Tec VP4 probe with bend hook tip, hexagonal handle, 410 stainless steel
Value-Tec VP4 probe with bend hook tip, hexagonal handle, 410 stainless steel
Value-Tec stainless steel probe with bend hook tip and hexagonal handle. Needle diameter is 1.4mm, handle is 6mm across with a length of 160mm. Made from hardened AISI 410 stainless steel.
Product # Unit Price* Add to Quote / Order
52-001073-S each €2,25
Qty:



Tungsten E-Beam filaments Balzers BK203161 for Balzers EK-552 E-Beam source
Tungsten E-Beam filaments Balzers BK203161 for Balzers EK-552 E-Beam source
Tungsten filaments for the Balzers / Bal-Tec EK-552 E-Beam sources which are part of the MED-010/020 systems and the BA-300/301/360, BAF-400/060 freeze fracture systems. These are NOS (New Original Stock) items with Balzers product # BK 203161. Original packaging with 5 filaments/vial.
Product # Unit Price* Add to Quote / Order
72-203161-S pkg/5 €25,00
Qty:



Carbon rods, Ø3mm x50mm, BD484058-T /B 80100761 for Balzers EK-552 E-Beam source
Carbon rods, Ø3mm x50mm, BD484058-T /B 80100761 for Balzers EK-552 E-Beam source
E-Beam carbon rods, Ø3mm x50mm, for the Balzers / Bal-Tec EK-552 E-Beam sources, which are part of the MED-010/020 systems and the BA-300/301/360, BAF-400/060 freeze fracture systems. These are NOS (New Original Stock) items with Balzers product # BD 484058-T or B 801007061. Original packaging with 5 carbon rods/vial. These carbon rods are most probably made from amorphous carbon.
Product # Unit Price* Add to Quote / Order
70-CC0350-S pkg/5 €25,00
Qty:
