EM-Tec EDX-Checker for EDX Systems and BSE Detectors
quick and easy calibration & resolution check for EDX systems


#36-000408
EM-Tec EDX-Checker S-8 with C, PTFE, Mn, Al/Cu, Co, AISI316L and 400/1000
mesh Ni grids
#36-000410
EM-Tec EDX-Checker LE-10 with BN, C, PTFE, Mn, Al/Cu, Co,AISI 316L and
400mesh Ni grid



Introduction

The EM-Tec EDX-Checker has been developed as a cost-efficient tool for quick and easy checking of calibration, performance, and resolution of an EDX system on an SEM.  Regular use of the EDX-Checker ensures optimum performance of the EDX detector. The EM-Tec EDX-Checker consists of a standard aluminium SEM pin stub with Nickel TEM grids and the selection of reference materials Bn, C, PTFE, Mn, Co, Al/Cu and AISI 316L embedded in a vacuum compatible epoxy. The EDX-Checker stub with the reference materials is polished down to 0.5um and coated with carbon. The additional Boron Nitride is not carbon coated:

  • Quick and easy EDX calibration and performance check
  • Ideal for EDX Systems from EDAX, Thermo, Bruker, Oxford Instruments, IXRF, Phenom and JEOL
  • Polished surface – no topography artefacts with the reference materials
  • Available in two versions
  • Known and consistent take-off angle due to polished surface
  • Hexagonal white BN does not need conductive carbon coating
  • Low magnification image and X-ray mapping calibration
  • Compact and cost effective
  • Available as pin stub and with adapters for JEOL and Hitachi SEMs

The EM-Tec EDX-Checker is available in 3 versions:

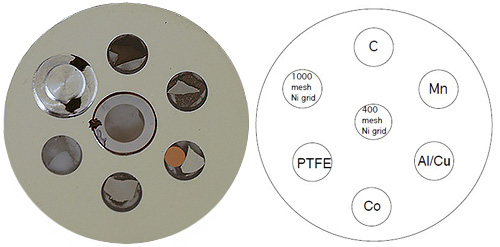

  • EDX-Checker S-7 with C, PTFE, Mn, Co and Al/Cu as reference materials and Ni grids with 400 plus 1000 mesh for quick magnification calibration and mapping check. Ideally suited for table top SEMs with EDS.

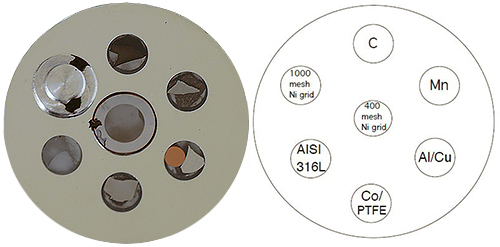

  • EDX-Checker S-8 with C, PTFE, Mn, Co and Al/Cu as reference materials, AISI 316L for quantitative analysis check and Ni grids with 400 plus 1000 mesh for quick magnification calibration and mapping check. Ideally suited for SEMs and table top SEMs with EDS.

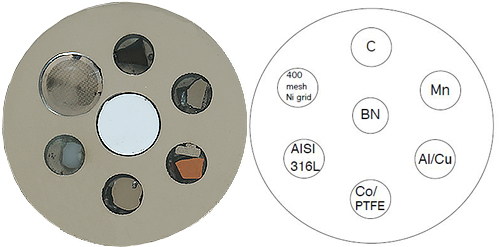

  • EDX-Checker LE-10 with BN, C, PTFE, Mn, Co and Al/Cu as reference materials, AISI 316L for quantitative analysis check and a 400mesh Nickel grid for quick magnification calibration and mapping check. Optimised for low element performance check.
EDX-Checker with pin stored in tube. EDX-Checker with JEOL Ø25mm adapter. EDX-Checker with Hitachi M4 adapter.

Purpose of the reference materials in the EM-Tec EDX-Checker:

Materials

Purpose of reference material

S-7

S-8

LE-10

C

Light element EDX -detector performance test for Carbon

X

X

X

BN

Light element EDX-Detector performance test for Boron and Nitrogen





X

PTFE

Light element test and resolution for Fluorine

X

X

X

Al/Cu

EDX system calibration with Aluminium and Copper peaks

X

X

X

Mn

EDX-detector resolution check for Mn Kα Peak

X

X

X

Co

EDX-detector resolution check and linearity

X

X

X

AISI 316L

Quantitative analysis check



X

X

400 mesh Ni

Quick magnification check / mapping

X

X

X

1000 mesh Ni

Quick magnification check / mapping

X

X

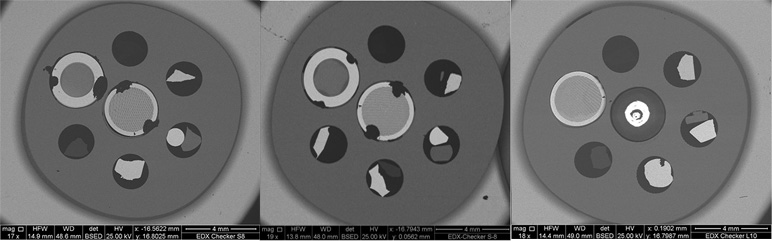

EM-Tec EDX-Checker S-7 EM-Tec EDX-Checker S-8, with 316L EM-Tec EDX-Checker LE-10, with light elements


Ordering information for the EM-Tec EDX-Checker S-7 with C, PTFE, Mn, Al/Cu, Co and 400/1000 mesh Ni grids

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec EDX-Checker S-7 with C, PTFE, Mn, Al/Cu, Co and 400/1000 mesh Ni grids
EM-Tec EDX-Checker S-7 with C, PTFE, Mn, Al/Cu, Co and 400/1000 mesh Ni grids EDX-Checker S-7 with C, PTFE, Mn, Co and Al/Cu as reference materials and Ni grids with 400 plus 1000 mesh for quick magnification calibration and mapping check.
Product # Unit Price* Add to Quote / Order
36-000407-P EM-Tec EDX-Checker S-7 on Ø12.7 mm standard aluminium pin stub
Qty:

each €500,00
36-000407-J EM-Tec EDX-Checker S-7 with Ø 25 x10mm JEOL adapter for standard aluminium pin stub
Qty:

each €515,00
36-000407-H EM-Tec EDX-Checker S-7 with Hitachi M4 adapter for standard aluminium pin stub
Qty:

each €515,00


Ordering information for the EM-Tec EDX-Checker S-8 with C, PTFE, Mn, Al/Cu, Co, AISI 316L and 400/1000 mesh Ni grids

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec EDX-Checker S-8 with C, PTFE, Mn, Al/Cu, Co, AISI 316L and 400/1000 mesh Ni grids
EM-Tec EDX-Checker S-8 with C, PTFE, Mn, Al/Cu, Co, AISI 316L and 400/1000 mesh Ni grids EDX-Checker S-8 with C, PTFE, Mn, Co and Al/Cu as reference materials, AISI 316L for quantitative analysis check and Ni grids with 400 plus 1000 mesh for quick magnification calibration and mapping check.
Product # Unit Price* Add to Quote / Order
36-000408-P EM-Tec EDX-Checker S-8 on Ø12.7 mm standard aluminium pin stub
Qty:

each €600,00
36-000408-J EM-Tec EDX-Checker S-8 with Ø 25 x10mm JEOL adapter for standard aluminium pin stub
Qty:

each €615,00
36-000408-H EM-Tec EDX-Checker S-8 with Hitachi M4 adapter for standard aluminium pin stub
Qty:

each €615,00


Ordering information for the EM-Tec EDX-Checker LE-10 with BN, C, PTFE, Mn, Al/Cu, Co, AISI 316L and 400mesh Ni grid

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec EDX-Checker LE-10 with BN, C, PTFE, Mn, Al/Cu, Co, AISI 316L and 400mesh Ni grid
EM-Tec EDX-Checker LE-10 with BN, C, PTFE, Mn, Al/Cu, Co, AISI 316L and 400mesh Ni grid EDX-Checker LE-10 with BN, C, PTFE, Mn, Co and Al/Cu as reference materials, AISI 316L for quantitative analysis check and a 400mesh Nickel grid for quick magnification calibration and mapping check.
Product # Unit Price* Add to Quote / Order
36-000410-P EM-Tec EDX-Checker LE-10, Ø12.7 mm standard aluminium pin stub
Qty:

each €710,00
36-000410-J EM-Tec EDX-Checker LE-10 with Ø 25 x10mm JEOL adapter for standard aluminium pin stub
Qty:

each €725,00
36-000410-H EM-Tec EDX-Checker LE-10 with Hitachi M4 adapter for standard aluminium pin stub
Qty:

each €725,00
