EM-Tec Save-Storr sample storage containers


The EM-Tec Save-Storr sample storage container has been designed to store sensitive samples under a dry and inert gas atmosphere

1- Dual locking clasps
2- Clear polycarbonate box
3- Foam seal
4- Gas distribution hose
5- Overpressure safety valve
6- Ball valves
7- Gas inlet connection
8- Gas outlet/pump connection



Introduction

The EM-Tec Save-Storr sample storage containers have been developed to store sensitive samples under a dry and inert gas atmosphere. The EM-Tec Save-Storr sample storage containers consist of a clear polycarbonate or black ABS hinged container with a seal, separate gas inlet and outlet valves and an over-pressure safety valve. The containers can be purged and filled with dry inert gas such as Nitrogen or Argon to protect moisture and oxygen sensitive samples. The construction allows vacuum pumping of the EM-Tec Save-Storr container first, before purging/filling it with inert gas. Using inert gas to protect samples is preferred for long term safe sample storage. The gas diffusion rate is lower than with vacuum storage containers due to the similar pressures in and outside the container. The EM-Tec Save Storr sample containers are available in five versions:

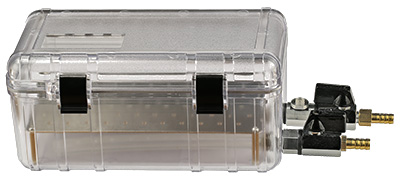

   EM-Tec Save-Storr with perforated shelf with 30mm height, aluminium
EM-Tec Save-Stor 4 with 4.4ltr storage capacity
  • EM-Tec Save-Storr 2 made from clear polycarbonate with a volume of 1.75ltr
  • EM-Tec Save-Storr 2B made from thick-walled black ABS with a volume of 1.75ltr
  • EM-Tec Save-Storr 4 made from thick-walled black ABS with a volume of 4.4 ltr
  • EM-Tec Save-Storr 7 made from thick-walled black ABS with a volume of 7.1 ltr
  • EM-Tec Save-Storr 10 made from thick-walled black ABS with a volume of 10.5 ltr

Features of the EM-Tec Save-Storr sample storage containers are:

  • Protects oxygen sensitive and/or moisture sensitive samples
  • Protects samples and calibration standards against contamination
  • Four sizes with 1.75, 4.4, 7.1 and 10.5 liters storage capacity
  • Easy sample location through the clear polycarbonate box of
    the Save-Storr 2
  • Light-sensitive sample sample protected in the black ABS box of the Save-Storr 2B, 4, 7 and 10
  • Sturdy, space-saving and stackable design
  • Ball valves for both gas inlet and gas outlet
  • Over-pressure safety valve made from silicone rubber
  • Barbed hose connections for 6mm (1/4”) gas hose
  • Optional EM-Tec 2 Save-Storr shelves for the EM-Tec Save-Storr 2 and 2B

It is not recommended to use the EM-Tec Save-Storr sample storage container for highly reactive materials or porous and outgassing samples. They would need a continuous gas lie in a glove box.

Specification of the EM-Tec Save-Storr sample storage container:

Parameters

EM-Tec Save-Storr 2 / 2B

EM-Tec Save-Storr 4

EM-Tec Save-Storr 7 EM-Tec Save-Storr 10

Product number

#13-001060 / #13-001061

#13-001070

#13-001075

#13-001080

Outside dimensions  LxBxH

212 x 118 x 101mm

258 x 228 x 118mm

325 x 263 x 117mm 325 x 263 x 169mm

Inside dimensions  LxBxH

200 x 99 x 89mm

238 x 184 x 103mm

303 x 229 x 103mm 303 x 229 x 151mm

Volume

1.75 ltr

4.4 ltr

7.1 ltr 10.5 ltr

Gas inlet / outlet valves

Mini ball valves

Mini ball valves

Mini ball valves Mini ball valves

Gas inlet / outlet connectors

6mm (1/4”) hose barb

6mm (1/4”) hose barb

6mm (1/4”) hose barb 6mm (1/4”) hose barb

Material

Polycarbonate / ABS

Thick-walled ABS

Thick-walled ABS Thick-walled ABS

Colour

Clear / Black

Black

Black Black

Compatible gasses

N2, Ar, CO2

N2, Ar, CO2

N2, Ar, CO2 N2, Ar, CO2

Maximum pressure

1.5 bar / 0.15Mpa / 150kPa

1.5 bar / 0.15Mpa / 150kPa

1.5 bar / 0.15Mpa / 150kPa 1.5 bar / 0.15Mpa / 150kPa


EM-Tec Save-Storr with perforated shelf with 30mm height, aluminium
EM-Tec Save-Stor 2 with the perforated shelf
EM-Tec Save-Stor perforated shelf

The optional EM-Tec Save-Storr shelves increase the storage area in the Save-Stor 2 container. Made from perforated aluminium sheets with dimensions of 187x89mm. The perforated sheets contain 57 holes which enable storage of 57 of the Ø12.7mm pin stubs with a standard Ø3.2mm (1/8”) pin. The gaps at the sides and the perforation ensure adequate gas flow throughout the EM-Tec Save-Storr 2 container.

TSB 13-001060 EM-Tec EM-Storr inert gas sample storage container
TSB EM-Tec Save-Storr Material Specifications Black ABS
TSB EM-Tec Save-Storr Material Specifications Clear Polycarbonate

Ordering information for EM-TEC Save-Storr sample storage containers

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec Save-Storr 2 sample storage container for inert gas, clear PC, 1.75ltr EM-Tec Save-Storr 2 sample storage container for inert gas, clear PC, 1.75ltr
Product # Unit Price* Add to Quote / Order
13-001060 EM-Tec Save-Storr 2 sample storage container for inert gas, clear PC, 1.75ltr
Qty:

each €239,00



EM-Tec Save-Storr 2B sample storage container for inert gas, black ABS, 1.75ltr EM-Tec Save-Storr 2B sample storage container for inert gas, black ABS, 1.75ltr
Product # Unit Price* Add to Quote / Order
13-001061 EM-Tec Save-Storr 2B sample storage container for inert gas, black ABS, 1.75ltr
Qty:

each €239,00



EM-Tec Save-Storr 4 sample storage container for inert gas, black ABS, 4.4 ltr EM-Tec Save-Storr 4 sample storage container for inert gas, black ABS, 4.4 ltr
Product # Unit Price* Add to Quote / Order
13-001070 EM-Tec Save-Storr 4 sample storage container for inert gas, black ABS, 4.4 ltr
Qty:

each €339,00



EM-Tec Save-Storr 7 sample storage container for inert gas, black ABS, 7.1 ltr EM-Tec Save-Storr 7 sample storage container for inert gas, black ABS, 7.1 ltr
Product # Unit Price* Add to Quote / Order
13-001075 EM-Tec Save-Storr 7 sample storage container for inert gas, black ABS, 7.1 ltr
Qty:

each €379,00



EM-Tec Save-Storr 10 sample storage container for inert gas, black ABS, 10.5 ltr EM-Tec Save-Storr 10 sample storage container for inert gas, black ABS, 10.5 ltr
Product # Unit Price* Add to Quote / Order
13-001080 EM-Tec Save-Storr 10 sample storage container for inert gas, black ABS, 10.5 ltr
Qty:

each €419,00



EM-Tec Save-Storr 2 single perforated shelf with 30mm height, aluminium EM-Tec Save-Storr 2 single perforated shelf with 30mm height, aluminium
Product # Unit Price* Add to Quote / Order
13-001062 EM-Tec Save-Storr 2 single perforated shelf with 30mm height, aluminium
Qty:

each €24,50



EM-Tec Save-Storr 2 dual perforated shelf with 2 x 25mm height, aluminium EM-Tec Save-Storr 2 dual perforated shelf with 2 x 25mm height, aluminium
Product # Unit Price* Add to Quote / Order
13-001063 EM-Tec Save-Storr 2 dual perforated shelf with 2 x 25mm height, aluminium
Qty:

each €49,00



Silicone hose Ø6 x Ø12mm, thick walled, clear, per m lenght Silicone hose Ø6 x Ø12mm, thick walled, clear, per m lenght
Product # Unit Price* Add to Quote / Order
61-010030-1 Silicone hose Ø6 x Ø12mm, thick walled, clear, 1 meter length
Qty:

1 mtr €9,20
61-010030-2 Silicone hose Ø6 x Ø12mm, thick walled, clear, 2 meter length
Qty:

2 mtr €17,30
61-010030-3 Silicone hose Ø6 x Ø12mm, thick walled, clear, 3 meter length
Qty:

3 mtr €24,00
61-010030-4 Silicone hose Ø6 x Ø12mm, thick walled, clear, 4 meter length
Qty:

4 mtr €31,00
61-010030-5 Silicone hose Ø6 x Ø12mm, thick walled, clear, 5 meter length
Qty:

5 mtr €37,50



Hose clamp for 12mm OD hose used on 6mm vacuum hose adapters, stainless steel Hose clamp for 12mm OD hose used on 6mm vacuum hose adapters, stainless steel
Product # Unit Price* Add to Quote / Order
61-010040 Hose clamp for 12mm OD hose used on 6mm vacuum hose adapters, stainless steel
Qty:

set/2 €3,00



Hose clamps for vacuum hoses and vacuum hose adapters, stainless steel Hose clamps for vacuum hoses and vacuum hose adapters, stainless steel
Product # Unit Price* Add to Quote / Order
61-110040-06 Hose clamp for 12mm OD hose used on 6mm vacuum hose adapters, stainless steel
Qty:

pkg/2 €3,50
61-110040-16 Hose clamp for 23mm OD hose used on 16mm vacuum hose adapters, stainless steel
Qty:

pkg/2 €4,00
61-110040-25 Hose clamp for 33mm OD hose used on 25mm vacuum hose adapters, stainless steel
Qty:

pkg/2 €5,00
