Introduction

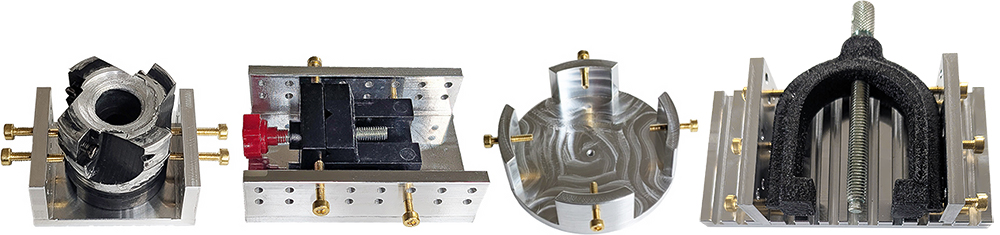

The EM-Tec large bulk SEM sample holders are designed to hold awkwardly shaped large bulk samples and parts. These large sample holders are either rectangular or round and have brackets with screws to securely hold the sample in place.  The large bulk sample holders are a cost-effective and practical way to hold large samples and parts for SEM imaging and analysis. They are all made from vacuum grade aluminium and are ideal for SEMs with large specimen stages used in application like failure analysis, quality control and product development. The screws are made from brass and provided with different lengths to cover different sample sizes. Available as rectangular, round and adjustable length sample holders. The EM-Tec large bulk SEM sample holders currently offered are:

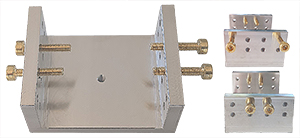

• EM-Tec LB48 – Rectangular type large bulk sample holder with two side brackets for short samples up to 52mm.
• EM-Tec LB96 – Rectangular type large bulk sample holder with two side bracket for longer samples width a maximum thickness of 52mm.
• EM-Tec RB77 – Round type bulk large sample holder with four brackets for sample diameter up to 77mm. The opening between the brackets allows for holding longer rod type sample up to 30mm diameter

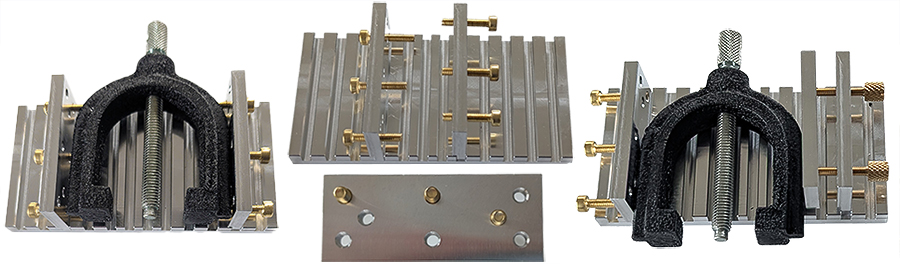

• EM-Tec AB100 – Rectangular type large bulk sample holder with two adjustable distance bracket plate for samples from 0.1 to 100mm. The bracket plates are held in grooves in the base plate so that the distance can be adjusted to fit the sample size.  One of the brackets includes a vise type plate. The vise plate can be removed when using screws is preferred.

The EM-Tec bulk sample holders are available with a pin stub, with an M4 threaded hole and with a Ø14mm JEOL stub for JEOL stage adapters with a Ø14mm hole.

EM-Tec AB10 details

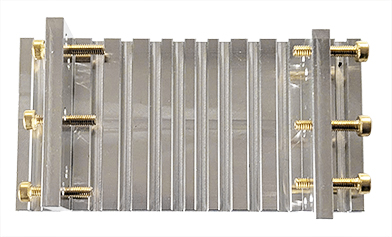

Sample secured with screws.	The base plate has 12 groves to adjust the distance between the 2 brackets. For securing the sample, each bracket plate has 8 x M4 threaded holes available to secure the sample.	The sample can also be secured with an adjustable vise plate connected to one of the brackets (as seen above).

Capacity and dimensions for the large EM-Tec bulk sample holders:

Product #	Name	Capacity	Dimensions w/o pin	Securing method	SEM stage compatibility
12-003281	EM-Tec LB48	52mm	64x48x30mm	Brass Screws	Standard 3.2mm pin
12-003381	EM-Tec LB48	52mm	64x48x30mm	Brass Screws	M4 thread
12-006281	EM-Tec LB48	52mm	64x48x30mm	Brass Screws	Ø14mm JEOL stub
12-003282	EM-Tec LB96	96x52mm	64x96x30mm	Brass Screws	Standard 3.2mm pin
12-003382	EM-Tec LB96	96x52mm	64x96x30mm	Brass Screws	M4 thread
12-006282	EM-Tec LB96	96x52mm	64x96x30mm	Brass Screws	Ø14mm JEOL stub
12-003283	EM-Tec RB77	Ø77mm	Ø89x30mm	Brass Screws	Standard 3.2mm pin
12-003383	EM-Tec RB77	Ø77mm	Ø89x30mm	Brass Screws	M4 thread
12-006283	EM-Tec RB77	Ø77mm	Ø89x30mm	Brass Screws	Ø14mm JEOL stub
12-003285	EM-Tec AB100	100mm	118x60x35mm	Vise/screw	Standard 3.2mm pin
12-003385	EM-Tec AB100	100mm	118x60x35mm	Vise/screw	M4 thread
12-006285	EM-Tec AB100	100mm	118x60x35mm	Vise/screw	Ø14mm JEOL stub

Ordering Information for EM-Tec bulk sample holders for SEMs using pin stubs: TFS, FEI, Philips, Tescan, AmRay, Cambridge Instruments, Leica and Zeiss SEMs

EM-Tec LB48 large bulk SEM sample holder for up to 52mm, pin Product # Unit Price* Add to Quote / Order 12-003281 each €99,00 Qty:

EM-Tec LB96 large bulk SEM sample holder for up to 96 x 52mm, pin Product # Unit Price* Add to Quote / Order 12-003282 each €129,00 Qty:

EM-Tec RB77 large round bulk SEM sample holder for up to Ø77mm, pin Product # Unit Price* Add to Quote / Order 12-003283 each €149,00 Qty:

EM-Tec AB100 large bulk SEM sample holder for up to 100mm, adjustable bracket interval, pin Product # Unit Price* Add to Quote / Order 12-003285 each €289,00 Qty:

Ordering Information for EM-Tec bulk sample holders for Hitachi SEMs and the versatile EM-Tec stage SEM stage adapters

EM-Tec LB48 large bulk SEM sample holder for up to 52mm, M4 Product # Unit Price* Add to Quote / Order 12-003381 each €99,00 Qty:

EM-Tec LB96 large bulk SEM sample holder for up to 96 x 52mm, M4 Product # Unit Price* Add to Quote / Order 12-003382 each €129,00 Qty:

EM-Tec RB77 large round bulk SEM sample holder for up to Ø77mm, M4 Product # Unit Price* Add to Quote / Order 12-003383 each €149,00 Qty:

EM-Tec AB100 large bulk SEM sample holder for up to 100mm, adjustable bracket interval, M4 Product # Unit Price* Add to Quote / Order 12-003385 each €289,00 Qty:

Ordering Information for EM-Tec bulk sample holders for JEOL SEM stage adapters with Ø14mm connection

EM-Tec LB48 large bulk SEM sample holder for up to 52mm, JEOL Ø14mm connection Product # Unit Price* Add to Quote / Order 12-006281 each €99,00 Qty:

EM-Tec LB96 large bulk SEM sample holder for up to 96 x 52mm, Ø14mm JEOL connection Product # Unit Price* Add to Quote / Order 12-006282 each €129,00 Qty:

EM-Tec RB77 large round bulk SEM sample holder for up to Ø77mm, Ø14mm JEOL connection Product # Unit Price* Add to Quote / Order 12-006283 each €149,00 Qty:

EM-Tec AB100 large bulk SEM sample holder for up to 100mm, adjustable bracket interval, Ø14mm JEOL connection Product # Unit Price* Add to Quote / Order 12-006285 each €289,00 Qty:
