EM-Tec stub storage boxes for 9.5mm and 12.2mm JEOL cylinder stubs


Introduction

EM-Tec Hitachi M4 stub storage box and single storage tube
   #13-095004 EM-Tec SJ4 clear styrene storage box


The EM-Tec JEOL stub storage boxes and are designed for storing SEM samples mounted on the 9.5mm and 12,2mm diameter JEOL cylinder stubs. They can be used for handling, long term storage, archiving and shipping SEM samples on smaller JEOL stubs and mounts. Currently available as storage boxes for 4 stubs and 12 stubs:

  • EM-Tec SJ4 clear styrene boxwith 4 storage positions for Ø9.5mm JEOL cylinder stubs. The stubs are held in the cavities of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Maximum sample height is 10 to 15 mm, depending on stub height.
  • EM-Tec SJ5 clear styrene box with 4 storage positions for Ø12.2mm JEOL cylinder stubs. The stubs are held in the cavities of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Maximum sample height is 4 to 9mm, depending on stub height.

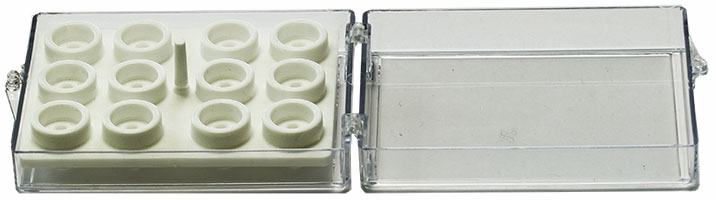

  • EM-Tec SC12 clear combi styrene box with 12 storage positions for either Ø9.5mm or Ø12.2mm JEOL cylinder stubs. The stubs are held in the cavities of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Maximum sample height is 13 to 18 mm, depending on stub height. Alternatively, the EM-Tec SC12 storage box can also be used for standard pin stubs.
  • EM-Tec SR12 really robust clear combi polystyrene box with 12 storage positions for either Ø9.5mm or Ø12.2mm JEOL cylinder stubs. These robust boxes are stackable. The stubs are held in the cavities of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Maximum sample height is 13 to 18 mm, depending on stub height. Alternatively, the EM-Tec SC12 storage box can also be used for standard pin stubs


Specifications of the EM-Tec JEOL cylinder stub storage boxes

Product #

Type

Material

JEOL stubs capacity

Inside dimensions

Outside dimensions

13-095004

SJ4

Polystyrene / LDPE

4 x Ø9.5mm

72x30x25mm           WxDxH

75x40x28mm

13-095005

SJ5

Polystyrene / LDPE

4 x Ø12.2mm

72x30x19mm           WxDxH

75x40x22mm

13-095012

SC12

Polystyrene / LDPE

12 x Ø9.5 or Ø12.2mm

89x65x34mm           WxDxH

100x69x38mm

13-095014

SR12

Polystyrene / LDPE

12 x Ø9.5 or Ø12.2mm

90x65x34mm           WxDxH

120x85x45mm



Ordering information

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec SC12 clear styrene storage box for 12x Ø9.5mm JEOL/Ø12.2mm JEOL or 12 pin stubs EM-Tec SC12 clear styrene storage box for 12x Ø9.5mm JEOL/Ø12.2mm JEOL or 12 pin stubs
Product # Unit Price* Add to Quote / Order
13-095012 each €6,45
Qty:



EM-Tec SR12 really robust stub storage box for 12x Ø9.5mm JEOL/Ø12.2mm JEOL or 12 pin stubs EM-Tec SR12 really robust stub storage box for 12x Ø9.5mm JEOL/Ø12.2mm JEOL or 12 pin stubs
Product # Unit Price* Add to Quote / Order
13-095014 each €7,90
Qty:



EM-Tec SJ4 clear styrene storage box for 4 x  Ø9.5mm JEOL cylinder stubs EM-Tec SJ4 clear styrene storage box for 4 x Ø9.5mm JEOL cylinder stubs
Product # Unit Price* Add to Quote / Order
13-095004 each €2,90
Quantity discount: 10 or more: €2,75 each
Qty:



EM-Tec SJ5 clear styrene storage box for 4 x  Ø12.2mm JEOL cylinder stubs EM-Tec SJ5 clear styrene storage box for 4 x Ø12.2mm JEOL cylinder stubs
Product # Unit Price* Add to Quote / Order
13-095005 each €2,90
Quantity discount: 0 or more: €2,75 each
Qty:
