EM-Tec multiple metallographic mount holders
available for 25, 30, 40 and 50mm mounts and 1”, 1-1/4”, 1-1/2” and 2” mounts

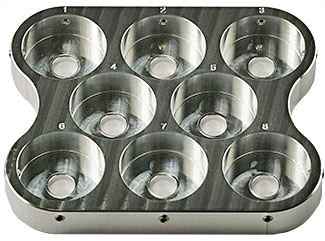

       EM-Tec multiple metallographic mount holder

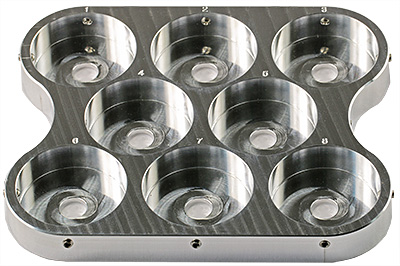

      EM-Tec multiple metallographic mount holder
Introduction

The EM-Tec multiple metallographic mount holders are designed to hold multiple metallographic, petrographic and ceramographic mounts or embeddings in a single holder. They are equally useful holding multiple round samples with a size similar to the mounts or for holding larger cylindrical specimen stubs. The EM-Tec multiple metallographic mount holders are available for standard metallurgical mounts with metric sizes of 25, 30, 40 and 50mm diameter and SAE sizes of 1”, 1-1/4”, 1-1/2” and 2” diameter. The samples are secured with an M4 set screw; an Allen key is included with the holder.
They are all made from vacuum grade aluminium and are available with:

  • standard pin to fit on SEM which use the standard pin; Thermo, FEI, Philips, Tescan,  AmRay, Cambridge Instruments, Leica and CamScan SEMs.
  • M4 threaded hole compatible with Hitachi SEMs, FESEMs and table top SEMs and with the EM-Tec versatile SEM stage adapters
  • Ø 14mm JEOL stub compatible with JEOL and EM-Tec stage adapters with a Ø 14mm connection hole

To make these large holders compatible with smaller stages, each of the holders include both centre and additional excentric stage adapting capabilities.

For SEMs with smaller chambers and smaller SEM sample stages, the smaller EM-Tec multiple mount holders would be more suitable. These holders for 4 or 3 metallographic mounts are available for 25, 30 and 40 mm diameter or SAE sizes of 1”, 1-1/4” and 1-1/2”.


Specifications of the larger EM-Tec multiple metallographic mount holders:

Product #

Type

Mounts

Dimensions

Securing

SEM stage comp.

12-003225

EM-Tec MM28

8 x 25mm / 1”

98 x 80 x 15mm

Set screws

Standard 3.2mm pin

12-003325

EM-Tec MM28

8 x 25mm / 1”

98 x 80 x 15mm

Set screws

M4 thread

12-006225

EM-Tec MM28

8 x 25mm / 1”

98 x 80 x 15mm

Set screws

JEOL Ø14mm stub

12-003231

EM-Tec MM38

8 x 30mm / 1-1/4”

119 x 99.5 x 15mm

Set screws

Standard 3.2mm pin

12-003331

EM-Tec MM38

8 x 30mm / 1-1/4”

119 x 99.5 x 15mm

Set screws

M4 thread

12-006231

EM-Tec MM38

8 x 30mm / 1-1/4”

119 x 99.5 x 15mm

Set screws

JEOL Ø14mm stub

12-003241

EM-Tec MM48

8 x 40mm / 1-1/2”

144 x 122 x 15mm

Set screws

Standard 3.2mm pin

12-003341

EM-Tec MM48

8 x 40mm / 1-1/2”

144 x 122 x 15mm

Set screws

M4 thread

12-006241

EM-Tec MM48

8 x 40mm / 1-1/2”

144 x 122 x 15mm

Set screws

JEOL Ø14mm stub

12-003251

EM-Tec MM54

4 x 50mm / 2”

115.5x115.5 x 15mm

Set screws

Standard 3.2mm pin

12-003351

EM-Tec MM54

4 x 50mm / 2”

115.5x115.5 x 15mm

Set screws

M4 hread

12-006251

EM-Tec MM54

4 x 50mm / 2”

115.5x115.5 x 15mm

Set screws

JEOL Ø14mm stub


Specifications of the smaller EM-Tec multiple metallographic mount holders:

Product #

Type

Mounts

Dimensions

Securing

SEM stage comp.

12-003272

EM-Tec MM24

4 x 25mm / 1”

62 x 62 x 10 mm

Set screws

Standard 3.2mm pin

12-003372

EM-Tec MM24

4 x 25mm / 1”

62 x 62 x 10 mm

Set screws

M4 thread

12-006272

EM-Tec MM24

4 x 25mm / 1”

62 x 62 x 10 mm

Set screws

JEOL Ø14mm stub

12-003275

EM-Tec MM33

3 x 30mm / 1-1/4”

75 x 70 x 10 mm

Set screws

Standard 3.2mm pin

12-003375

EM-Tec MM33

3 x 30mm / 1-1/4”

75 x 70 x 10 mm

Set screws

M4 thread

12-006275

EM-Tec MM33

3 x 30mm / 1-1/4”

75 x 70 x 10 mm

Set screws

JEOL Ø14mm stub

12-003276

EM-Tec MM43

3 x 40mm / 1-1/2”

91 x 84 x 10 mm

Set screws

Standard 3.2mm pin

12-003376

EM-Tec MM43

3 x 40mm / 1-1/2”

91 x 84 x 10 mm

Set screws

M4 thread

12-006276

EM-Tec MM43

3 x 40mm / 1-1/2”

91 x 84 x 10 mm

Set screws

JEOL Ø14mm stub



Ordering Information for EM-Tec multiple metallographic mount holders for SEMs using pin stubs; TFS, FEI, Philips, Zeiss, LEO Tescan, AmRay, Pemtron, Coxem, Aspex, RJLee, Cambridge Instruments, Leica, and CamScan

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec MM28 multi metallographic mount holder for 8x Ø25mm / Ø1inch mounts, pin EM-Tec MM28 multi metallographic mount holder for 8x Ø25mm / Ø1inch mounts, pin
Product # Unit Price* Add to Quote / Order
12-003225 each €337,50
Qty:



EM-Tec MM24 multi metallographic mount holder for 4x Ø25mm / Ø1inch mounts, pin EM-Tec MM24 multi metallographic mount holder for 4x Ø25mm / Ø1inch mounts, pin
Product # Unit Price* Add to Quote / Order
12-003272 each €147,00
Qty:



EM-Tec MM38 multi metallographic mount holder for 8x Ø30mm / Ø1-1/4 inch mounts, pin EM-Tec MM38 multi metallographic mount holder for 8x Ø30mm / Ø1-1/4 inch mounts, pin
Product # Unit Price* Add to Quote / Order
12-003231 each €378,50
Qty:



EM-Tec MM33 multi metallographic mount holder for 3x Ø30mm / Ø1-1/4 inch mounts, pin EM-Tec MM33 multi metallographic mount holder for 3x Ø30mm / Ø1-1/4 inch mounts, pin
Product # Unit Price* Add to Quote / Order
12-003275 each €147,00
Qty:



EM-Tec MM48 multi metallographic mount holder for 8x Ø40mm / Ø1-1/2 inch mounts, pin EM-Tec MM48 multi metallographic mount holder for 8x Ø40mm / Ø1-1/2 inch mounts, pin
Product # Unit Price* Add to Quote / Order
12-003241 each €478,50
Qty:



EM-Tec MM43 multi metallographic mount holder for 3x Ø40mm / Ø1-1/2 inch mounts, pin EM-Tec MM43 multi metallographic mount holder for 3x Ø40mm / Ø1-1/2 inch mounts, pin
Product # Unit Price* Add to Quote / Order
12-003276 each €157,00
Qty:



EM-Tec MM54 multi metallographic mount holder for 4x Ø50mm / Ø2inch mounts, pin EM-Tec MM54 multi metallographic mount holder for 4x Ø50mm / Ø2inch mounts, pin
Product # Unit Price* Add to Quote / Order
12-003251 each €327,50
Qty:



Ordering Information for EM-Tec multiple metallographic mount holders for Hitachi SEMs or the versatile EM-Tec stage SEM stage adapters

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec MM28 multi metallographic mount holder for 8x Ø25mm / Ø1inch mounts, M4 EM-Tec MM28 multi metallographic mount holder for 8x Ø25mm / Ø1inch mounts, M4
Product # Unit Price* Add to Quote / Order
12-003325 each €335,00
Qty:



EM-Tec MM24 multi metallographic mount holder for 4x Ø25mm / Ø1inch mounts, M4 EM-Tec MM24 multi metallographic mount holder for 4x Ø25mm / Ø1inch mounts, M4
Product # Unit Price* Add to Quote / Order
12-003372 each €145,00
Qty:



EM-Tec MM38 multi metallographic mount holder for 8x Ø30mm / Ø1-1/4 inch mounts, M4 EM-Tec MM38 multi metallographic mount holder for 8x Ø30mm / Ø1-1/4 inch mounts, M4
Product # Unit Price* Add to Quote / Order
12-003331 each €375,00
Qty:



EM-Tec MM33 multi metallographic mount holder for 3x Ø30mm / Ø1-1/4 inch mounts, M4 EM-Tec MM33 multi metallographic mount holder for 3x Ø30mm / Ø1-1/4 inch mounts, M4
Product # Unit Price* Add to Quote / Order
12-003375 each €145,00
Qty:



EM-Tec MM48 multi metallographic mount holder for 8x Ø40mm / Ø1-1/2 inch mounts, M4 EM-Tec MM48 multi metallographic mount holder for 8x Ø40mm / Ø1-1/2 inch mounts, M4
Product # Unit Price* Add to Quote / Order
12-003341 each €475,00
Qty:



EM-Tec MM43 multi metallographic mount holder for 3x Ø40mm / Ø1-1/2 inch mounts, M4 EM-Tec MM43 multi metallographic mount holder for 3x Ø40mm / Ø1-1/2 inch mounts, M4
Product # Unit Price* Add to Quote / Order
12-003376 each €155,00
Qty:



EM-Tec MM54 multi metallographic mount holder for 4x Ø50mm / Ø2inch mounts, M4 EM-Tec MM54 multi metallographic mount holder for 4x Ø50mm / Ø2inch mounts, M4
Product # Unit Price* Add to Quote / Order
12-003351 each €325,00
Qty:



Ordering information for EM-Tec multiple metallographic mount holders for JEOL SEM stage adapters with Ø14mm connection hole

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec MM28 multi metallographic mount holder for 8x Ø25mm / Ø1inch mounts, JEOL Ø14mm stub EM-Tec MM28 multi metallographic mount holder for 8x Ø25mm / Ø1inch mounts, JEOL Ø14mm stub
Product # Unit Price* Add to Quote / Order
12-006225 each €337,50
Qty:



EM-Tec MM38 multi metallographic mount holder for 8x Ø30mm / Ø1-1/4 inch mounts, Ø14mm JEOL stub EM-Tec MM38 multi metallographic mount holder for 8x Ø30mm / Ø1-1/4 inch mounts, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-006231 each €378,50
Qty:



EM-Tec MM24 multi metallographic mount holder for 4x Ø25mm / Ø1inch mounts, JEOL 14mm stub EM-Tec MM24 multi metallographic mount holder for 4x Ø25mm / Ø1inch mounts, JEOL 14mm stub
Product # Unit Price* Add to Quote / Order
12-006272 each €147,00
Qty:



EM-Tec MM33 multi metallographic mount holder for 3x Ø30mm / Ø1-1/4 inch mounts, JEOL 14mm stub EM-Tec MM33 multi metallographic mount holder for 3x Ø30mm / Ø1-1/4 inch mounts, JEOL 14mm stub
Product # Unit Price* Add to Quote / Order
12-006275 each €147,00
Qty:



EM-Tec MM48 multi metallographic mount holder for 8x Ø40mm / Ø1-1/2 inch mounts, Ø14mm JEOL stub EM-Tec MM48 multi metallographic mount holder for 8x Ø40mm / Ø1-1/2 inch mounts, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-006241 each €478,50
Qty:



EM-Tec MM43 multi metallographic mount holder for 3x Ø40mm / Ø1-1/2 inch mounts, JEOL 14mm stub EM-Tec MM43 multi metallographic mount holder for 3x Ø40mm / Ø1-1/2 inch mounts, JEOL 14mm stub
Product # Unit Price* Add to Quote / Order
12-006276 each €157,00
Qty:



EM-Tec MM54 multi metallographic mount holder for 4x Ø50mm / Ø2inch mounts, Ø14mm JEOL stub EM-Tec MM54 multi metallographic mount holder for 4x Ø50mm / Ø2inch mounts, Ø14mm JEOL stub
Product # Unit Price* Add to Quote / Order
12-006251 each €327,50
Qty:
