EM-Tec ISO vacuum flange connection parts
Introduction

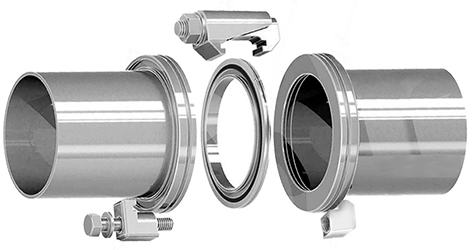

The EM-Tec ISO vacuum flange connection parts are compatible with all ISO-K (flange with groove for clamp fasteners) and ISO-F (flanges with threaded holes for bolts and nuts) hardware components. They are all standardized parts The ISO flanges are larger than the KF flanges and start with ISO63. The most popular sizes are ISO 63 thru ISO250. The numbers are derived from the nominal ID of the vacuum lines in mm. The standard sizes offered are the sizes used on turbo pumps and vacuum components on electron microscopes and preparation equipment:
Ordering information for EM-Tec ISO vacuum flange connection parts
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
| EM-Tec ISO centering seal, AISI 304 with Viton O-ring, no outer ring |
 |
EM-Tec ISO-K centering seals with AISI 304 stainless steel centering ring and Viton O-ring. Often used to connect turbo pumps to vacuum systems. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 61-210010-63 |
ISO63 centering seal, AISI 304 with Viton O-ring, no outer ring |
|
| each |
€14,00
|
| 61-210010-100 |
ISO100 centering seal, AISI 304 with Viton O-ring, no outer ring |
|
| each |
€14,00
|
|
| EM-Tec ISO centering seal, AISI 304 with Viton O-ring and Aluminium outer ring |
 |
EM-Tec ISO centering seals with AISI 304 stainless steel centering ring, Viton O-ring and aluminium outer ring. Compatible with ISO-F and ISO-K. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 61-210012-63S |
ISO63 centering seal, AISI 304 with Viton O-ring and Aluminium outer ring |
|
| each |
€15,00
|
| 61-210012-100S |
ISO100 centering seal, AISI 304 with Viton O-ring and Aluminium outer ring |
|
| each |
€16,75
|
|
| EM-Tec ISO-K single aluminium clamp with AISI 304 stainless steel bolt |
 |
EM-Tec ISO-K single aluminium clamp with AISI 304 stainless steel bolt.
An EM-Tec ISO-K single claw clamp to mount a turbo pump to an instrument. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 61-210020-8 |
ISO-K M8 single aluminium claw clamp with stainless steel bolt M8 |
|
| each |
€7,00
|
| 61-210020-10 |
ISO-K M10 single aluminium claw clamp with stainless steel bolt M10 |
|
| each |
€8,00
|
|
| EM-Tec ISO-K double claw clamp, AISI 304 stainless steel clamps and bolt |
 |
EM-Tec ISO-K double claw clamp, AISI 304 stainless steel clamps and bolt, to connect two ISO-K flanges |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 61-210022-8 |
ISO-K M8 double claw clamp claw, AISI 304 stainless steel, M8 |
|
| each |
€10,00
|
| 61-210022-10 |
ISO-K M10 double claw clamp claw, AISI 304 stainless steel, M10 |
|
| each |
€11,00
|
|
