Metal and glass polish compounds
High quality polishing compounds for EM labs


       Metal and glass polish compounds
Introduction

The current selection of metal and glass polish compounds consists of:

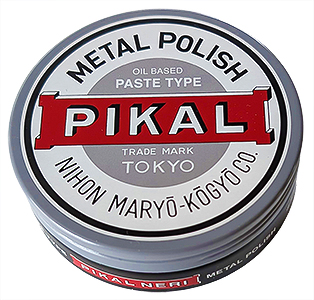

PIKAL professional metal polishing paste, Care & Liquid

PIKAL metal polishing paste is a superior polishing paste with excellent cleaning and polishing qualities. It has been formulated as a thick paste, containing finely graded abrasives and a carrier/extender based on mineral oils. PIKAL polishing paste does not contain silicone. With its high concentration of solids, it is most effective on harder materials and can be used on stainless steel, steel, alloys, titanium, chromium, nickel, copper, alumium, enamels, ceramics, but not on plastics. Very effective in removing hard stains and restoring full luster to polished metal surfaces. PIKAL professional polishing paste has found many applications in cleaning and polishing. It is a tried and tested products with a great track record for over 100 years.
Typical lab applications for PIKAL professional metal polishing paste are:

  • Cleaning of EM parts such as Wehnelt, anode, liner tubes and aperture holders
  • Cleaning and polishing of vacuum coating equipment
  • Precision polishing of parts
  • Polishing of UHV parts and chambers
  • Polishing of stainless steel parts

Due to its consistency PIKAL is easy to use on swabs, wipes and buffing wheels. For standard vacuum and UHV applications we recommend to clean the polished surface with a mixture or 50/50 acetone/isopropanol. Supplied in a long lasting 250 gram tin.

PIKAL Care metal polishing paste has been formulated as a thinner paste. It is especially effective for stainless steel surfaces and other metals and ceramics. It is supplied in a tube to enable direct application on surfaces. It has a more gentle action than the thicker polishing paste. It is recommended to use soft textile wipes for polishing.

PIKAL Liquid metal polish comes in the form of a polishing emulsion and provides even more gentler polishing action. Suited for final polishing and light cleaning operations. It is supplied in a metal can and can be applied directly on the surface or via a soft textile polishing wipe


Wenol metal cleaner and polish

Wenol metal polish has been favored by many microscopists for cleaning and polishing parts for electron microscopes and used to be a mainstay in EM labs. Now available again for the best cleaning results for SEM, TEM, FIB and vacuum coating systems. Ideal for cleaning Wehnelt cylinders, anodes, aperture holders, sample holders, vacuum coating shielding parts and internal vacuum chamber parts.
Wenol is petroleum based with fine graded aluminium oxide particles as polishing compound. The carrier fluid assists in removing hydrocarbons and is easily removed. It does not contain silicone. The consistency is paste like, which makes it easy to use on swabs, applicator sticks, cotton balls or polishing cloths. Other applications include cleaning of tarnished metal surfaces, final polish for fine mechanical parts and polishing vacuum feedthrough rods. Originally developed for polishing metals such as stainless steel, it works just as good on copper, brass, bronze, chrome or nickel plated metals etc. Can be used on soft metals such as aluminium when proper care is exercised.
Wenol is similar to metal polishing compounds such as POL or Unipol which came later to the market as replacements. For final cleaning we recommend a rinse in isopropanol/acetone mixture. Available in a 100mml tube.


EM-Tec Bell Jar Polish for glass bell jars

The EM-Tec Bell Jar Polish is a soft dry polishing compound. It is specially developed as non-scratching polish for glass and similar surfaces. Ideal for using on glass bell jars and windows used on vacuum systems such as sputter coaters, carbon coaters and metal evaporation systems.  Compatible with glass vacuum chambers made from Schott, Corning or Pyrex glass.
EM-Tec Bell Jar Polish main polishing ingredient is select grade calcium carbonate and does not contain dyes, chlorine or phosphor. It is best used with water and a polishing cloths or textile wipes for optimum results. Equally suitable for cleaning metal surfaces such as stainless steel and other hard metals. When used on soft metals, like aluminium, micro scratching can occur.
After polishing, clean residue with moist wipes and a final rinse with isopropanol/acetone. Available in 200 gram container.

Warning: polishing compounds containing aluminium oxide or silicon carbide (like Scotchbrite) pads) must be avoided for cleaning glass. They leave scratches in the glass surface, resulting in difficult to clean surfaces and reduced vacuum pumping performance

Micro-Tec stainless steel woven wire mesh
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

53-000250-Pikal-Metal-Polish.jpg PIKAL professional metal polishing paste, 250g tin
PIKAL professional metal polishing paste, 250g tin
Product # Unit Price* Add to Quote / Order
53-000250 each €26,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 53-000250 :   SDS pdf download



53-000260.jpg PIKAL Care metal polishing paste, 150g tube
PIKAL Care metal polishing paste, 150g tube
Product # Unit Price* Add to Quote / Order
53-000260 each €14,40
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 53-000260 :   SDS pdf download



53-000270.jpg PIKAL Liquid metal polish, 180g can
PIKAL Liquid metal polish, 180g can
Product # Unit Price* Add to Quote / Order
53-000270 each €11,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 53-000270 :   SDS pdf download



53-000100-Wenol metal cleaner and polish.jpg WENOL metal cleaner and polish, 100ml tube
WENOL metal cleaner and polish, 100ml tube
Product # Unit Price* Add to Quote / Order
53-000100 each €11,95
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 53-000100 :   SDS pdf download



53-000200-EM-Tec Bell Jar Polish.jpg EM-Tec Bell Jar Polish for glass chambers, pkg/200g
EM-Tec Bell Jar Polish for glass chambers, pkg/200g
Product # Unit Price* Add to Quote / Order
53-000200 each €8,95
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 53-000200 :   SDS pdf download
