EM-Tec compact and universal vise sample holders


Examples:
#12-000200 (with pin) or #12-000300 (M4 thread).

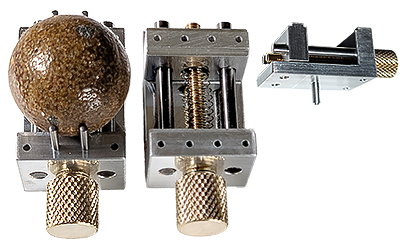

EM-Tec V22 compact vise type sample holder for up to 22mm, pin
#12-002400 (with pin) #12-003400 (with M4)
EM-Tec 3V22 triple compact vise sample holder for 3x up to 22mm samples, pin
#12-000201 (with pin) #12-000301 (with M4)

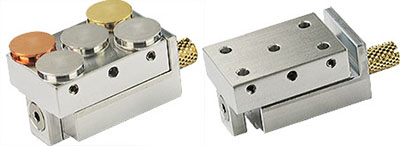

EM-Tec MV22 combined compact vise (0-22mm) plus multi pin stub holder, pin


Introduction

Vise type sample holders are quick and easy to use. They hold the sample by clamping it between the moving jaws, this enables quick sample loading and reduces down time.  They especially useful when similar samples or series of the same sample need to be examined. Using a vise sample holder is easier, quicker and cleaner than using conductive adhesives or glue. A vise clamps the sample and provides the rigidity needed for high resolution imaging. The compact and/or springloaded EM-Tec SEM sample holders currently available are:

  • EM-Tec V22 compact vise sample holder for sample sizes up from 0-22mm. One fixed jaw and a spindle driven moving jaw. Cost-effective compact vise which can be used in both standard SEMs and table top SEMs. Made from vacuum grade aluminium, brass spindle and stainless steel screws.
  • EM-Tec MV22 combined compact vise holder (0-22mm) plus multi pin stub holder for up to 5 standard 12.7mm pin stubs. This cost-effective multi holder has been designed for table top SEMs and SEMs with smaller specimen stages. One fixed jaw and spindle drive to move other jaw. Made from vacuum grade aluminium, brass spindle and stainless steel screws.
  • EM-Tec 3V22 triple compact vise holder includes three separately adjustable EM-Tec V22 compact vises on a single base plate. Enables holding and investigating three different samples to save on SEM venting and pumping time. Made from vacuum grade aluminium, brass spindles and stainless steel screws.
  • EM-Tec VS8 mini single action spring-loaded vise for samples with a maximum clamping size of 8mm. The vise is opened by pulling the moving vise jaw. Ideal for quickly loading thin cross-sections. The vise base dimensions are Ø25 x 12.5mm height. Made from vacuum grade aluminium with stainless steel rods and springs.
  • EM-Tec VS12 is a compact single action spring-loaded vise for samples with a maximum clamping size of 12mm. The vise is opened by pushing the moving vise jaw with a push rod. The push rod can be removed when the holder is loaded in the SEM. Dowel pins can be inserted in the fixed and moving jaws to increase the opening to a sample size up to 18mm diameter or to hold awkwardly shaped samples; 4 dowel pins are included. Made from vacuum grade aluminium with stainless steel rods and springs.
  • EM-Tec VS26 is a compact double action spring-loaded vise for samples with a maximum clamping size of 26mm. Due to the double sided spring, this vise acts as a centering vise. The vise jaws are opened by push rods which can be removed when the sample holder is loaded in the SEM. Dowel pins can be inserted in the jaws to increase the opening to a sample size up to 34mm diameter or to hold irregular shaped samples; 4 dowel pin are included. Made from vacuum grade aluminium with stainless steel rods and springs.
  • EM-Tec VS43 universal double sided spring-loaded larger vise for samples with a maximum vise opening of 42mm. Different type of jaws can be mounted on the EM-Tec universal spring-loaded vise. Opens by pulling the jaws. Dowel pin pins be inserted in the brass slider to extend the opening size and to hold awkwardly shaped samples. With the dowel pins a disc of up 50mm diameter can be held; 4 dowel pins are included. Includes triple grooved/smooth vise jaws. Additional optionally available vise jaws are:
  • Made from vacuum grade aluminium, brass sliders and stainless steel rods and springs.

The EM-Tec vise sample holders are available with pin and with an M4 threaded hole. For use on JEOL SEMs, we suggest to use an EM-Tec SEM stub adapter.

Specifications of the EM-Tec compact and universal vise clamp holders:

Product #

Type

Dimensions

Max. sample size

Clamping method

Stage compatible

12-000200

EM-Tec V22

39x25x22mm

22mm

Spindle driven

3.2mm Pin stub

12-000300

EM-Tec V22

39x25x22mm

22mm

Spindle driven

M4 thread

12-000201

EM-Tec MV22

39x25x22mm

22mm

Spindle driven

3.2mm Pin stub

12-000301

EM-Tec MV22

39x25x22mm

22mm

Spindle driven

M4 thread

12-002400

EM-Tec 3V22

39x76x27mm

22mm (3x)

Spindle driven (3x)

3.2mm Pin stub

12-003400

EM-Tec 3V22

39x76x27mm

22mm (3x)

Spindle driven (3x)

M4 thread

12-002228

EM-Tec VS8

25x30x12.5mm

8mm

Spring-loaded

3.2mm Pin stub

12-003228

EM-Tec VS8

25x30x12.5mm

8mm

Spring-loaded

M4 thread

12-000221

EM-Tec VS12

30x25x12mm

12mm / Ø18mm

Spring-loaded

3.2mm Pin stub

12-000321

EM-Tec VS12

30x25x12mm

12mm / Ø18mm

Spring-loaded

M4 thread

12-000222

EM-Tec VS26

50x25x12mm

26mm / Ø34mm

Spring-loaded

3.2mm Pin stub

12-000322

EM-Tec VS26

50x25x12mm

26mm / Ø34mm

Spring-loaded

M4 thread

12-000220

EM-Tec VS42

76x51x26mm

42mm / Ø50mm

Spring-loaded

3.2mm Pin stub

12-000320

EM-Tec VS42

76x51x26mm

42mm / Ø50mm

Spring-loaded

M4 thread


Technical Support Bulletin: EM-Tec VS8 mini spring-loaded SEM sample vise
Technical Support Bulletin: EM-Tec V22 compact vise type sample holder
Technical Support Bulletin:EM-Tec MV22 combined compact vise plus multi pin stub holder
Technical Support Bulletin: EM-Tec 3V22 triple compact vise sample holder
Technical Support Bulletin: EM-Tec VS12 compact single action spring-loaded vise
Technical Support Bulletin: EM-Tec VS26 compact dual action spring-loaded SEM sample vise
Technical Support Bulletin: EM-Tec VS42 universal spring-loaded vise



Ordering Information for EM-Tec compact and universal vise clamp holders for SEMs using pin stubs; TFS, FEI, Philips, Zeiss, LEO, Tescan, Aspex, RJLee, AmRay, Cambridge Instruments, Leica and CamScan SEMs.

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec VS8 mini spring-loaded vise holder for up to 8mm, pin
EM-Tec VS8 mini spring-loaded vise holder for up to 8mm, pin EM-Tec VS8 is a mini single action spring-loaded vise for samples with a maximum clamping size of 8mm. The vise is opened by pulling the moving vise jaw. Ideal for quickly loading thin cross-sections. The vise base dimensions are Ø25 x 12.5mm height. Made from vacuum grade aluminium with stainless steel rods and springs.
Product # Unit Price* Add to Quote / Order
12-002228 each €59,50
Qty:



EM-Tec V22 compact vise type sample holder for up to 22mm, pin
EM-Tec V22 compact vise type sample holder for up to 22mm, pin EM-Tec V22 compact vise sample holder for sample sizes up from 0-22mm with a pin. One fixed jaw and a spindle driven moving jaw. Jaw height is 10mm, clamping width is 25mm. Cost-effective compact vise which can be used in both standard SEMs and table top SEMs. Made from vacuum grade aluminium, brass spindle and stainless steel screws. More info
Product # Unit Price* Add to Quote / Order
12-000200 each €110,00
Qty:



EM-Tec MV22 combined compact vise (0-22mm) plus multi pin stub holder, pin
EM-Tec MV22 combined compact vise (0-22mm) plus multi pin stub holder, pin EM-Tec MV22 combined compact vise holder (0-22mm) plus multi pin stub holder for up to 5 standard 12.7mm pin stubs. This cost-effective multi holder has been designed for table top SEMs and SEMs with smaller specimen stages. One fixed jaw and spindle drive to move other jaw. Made from vacuum grade aluminium, brass spindle and stainless steel screws.
Product # Unit Price* Add to Quote / Order
12-000201 each €130,00
Qty:



EM-Tec 3V22 triple compact vise sample holder for 3x up to 22mm samples, pin
EM-Tec 3V22 triple compact vise sample holder for 3x up to 22mm samples, pin EM-Tec 3V22 triple compact vise holder includes three separately adjustable EM-Tec V22 compact vises on a single base plate. Enables holding and investigating three different samples to save on SEM venting and pumping time. Made from vacuum grade aluminium, brass spindles and stainless steel screws.
Product # Unit Price* Add to Quote / Order
12-002400 each €506,00
Qty:



EM-Tec VS12 compact single action spring-loaded vise holder for up to 12mm, pin
EM-Tec VS12 compact single action spring-loaded vise holder for up to 12mm, pin EM-Tec VS12 is a compact single action spring-loaded vise for samples with a maximum clamping size of 12mm. The vise is opened by pushing the moving vise jaw with a push rod. The push rod can be removed when the holder is loaded in the SEM. Dowel pins can be inserted in the fixed and moving jaws to increase the opening to a sample size up to 18mm diameter or to hold awkwardly shaped samples; 4 dowel pins are included. Made from vacuum grade aluminium with stainless steel rods and springs. More info
Product # Unit Price* Add to Quote / Order
12-000221 each €149,50
Qty:



EM-Tec VS26 compact double action spring-loaded vise holder for up to 26mm, pin
EM-Tec VS26 compact double action spring-loaded vise holder for up to 26mm, pin EM-Tec VS26 is a compact double action spring-loaded vise for sample with a maximum clamping size of 26mm with pin. Due to the double sided spring, this vise acts as a centering vise. The vise jaws are opened by push rods which can be remove when the sample holder is loaded in the SEM. Dowel pins can be inserted in the jaws to increase sample size up to 34mm diameter or to hold irregular shaped samples; 4 dowel pin are included. Made from vacuum grade aluminium and stainless steel rods and springs. More info
Product # Unit Price* Add to Quote / Order
12-000222 each €222,50
Qty:



EM-Tec VS42 universal spring-loaded large vise holder for up to 42mm, pin
EM-Tec VS42 universal spring-loaded large vise holder for up to 42mm, pin EM-Tec VS42 universal double sided spring-loaded larger vise for samples with a maximum vise opening of 42mm. Different type of jaws can be mounted on the EM-Tec universal spring-loaded vise. Opens by pulling the jaws. Dowel pin pins be inserted in the brass slider to extend the opening size and to hold awkwardly shaped samples. With the dowel pins a disc of up 50mm diameter can be held; 4 dowel pins are included. Includes triple grooved/smooth reversible vise jaws. Additional optionally available vise jaws are:
Vise jaw with a single 120° large groove for round samples Standard reversible vise jaws with triple grooved/smooth side; vise jaws can be stacked to increase the jaw height from 12 to 24mm. Made from vacuum grade aluminium, brass sliders and stainless steel rods and springs. More info
Product # Unit Price* Add to Quote / Order
12-000220 each €179,00
Qty:



Ordering Information for EM-Tec compact and universal vise clamp holders for Hitachi SEMs and the versatile EM-Tec stage SEM stage adapters

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec VS8 mini spring-loaded vise holder for up to 8mm, M4
EM-Tec VS8 mini spring-loaded vise holder for up to 8mm, M4 EM-Tec VS8 is a mini single action spring-loaded vise for samples with a maximum clamping size of 8mm. The vise is opened by pulling the moving vise jaw. Ideal for quickly loading thin cross-sections. The vase base dimensions are Ø25 x 12.5mm height. Made from vacuum grade aluminium with stainless steel rods and springs.
Product # Unit Price* Add to Quote / Order
12-003228 each €58,50
Qty:



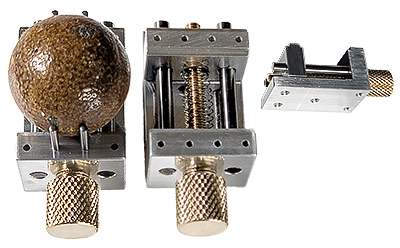

EM-Tec V22 compact vise type sample holder for up to 22mm, M4
EM-Tec V22 compact vise type sample holder for up to 22mm, M4 EM-Tec V22 compact vise sample holder for sample sizes up from 0-22mm with M4 thread. One fixed jaw and a spindle driven moving jaw. Jaw height is 10mm, clamping width is 25mm. Cost-effective compact vise which can be used in both standard SEMs and table top SEMs. Made from vacuum grade aluminium, brass spindle and stainless steel screws. More info
Product # Unit Price* Add to Quote / Order
12-000300 each €107,50
Qty:



EM-Tec MV22 combined compact vise (0-22mm) plus multi pin stub holder, M4
EM-Tec MV22 combined compact vise (0-22mm) plus multi pin stub holder, M4 EM-Tec MV22 combined compact vise holder (0-22mm) plus multi pin stub holder for up to 5 standard 12.7mm pin stubs. This cost-effective multi holder has been designed for table top SEMs and SEMs with smaller specimen stages. One fixed jaw and spindle drive to move other jaw. Made from vacuum grade aluminium, brass spindle and stainless steel screws.
Product # Unit Price* Add to Quote / Order
12-000301 each €127,50
Qty:



EM-Tec 3V22 triple compact vise sample holder for 3x up to 22mm samples, M4
EM-Tec 3V22 triple compact vise sample holder for 3x up to 22mm samples, M4 EM-Tec 3V22 triple compact vise holder includes three separately adjustable EM-Tec V22 compact vises on a single base plate. Enables holding and investigating three different samples to save on SEM venting and pumping time. Made from vacuum grade aluminium, brass spindles and stainless steel screws.
Product # Unit Price* Add to Quote / Order
12-003400 each €500,00
Qty:



EM-Tec VS12 compact single action spring-loaded vise holder for up to 12mm, M4
EM-Tec VS12 compact single action spring-loaded vise holder for up to 12mm, M4 EM-Tec VS12 is a compact single action spring-loaded vise for samples with a maximum clamping size of 12mm. The vise is opened by pushing the moving vise jaw with a push rod. The push rod can be removed when the holder is loaded in the SEM. Dowel pins can be inserted in the fixed and moving jaws to increase the opening to a sample size up to 18mm diameter or to hold awkwardly shaped samples; 4 dowel pins are included. Made from vacuum grade aluminium with stainless steel rods and springs. More info
Product # Unit Price* Add to Quote / Order
12-000321 each €145,50
Qty:



EM-Tec VS26 compact double action spring-loaded vise holder for up to 26mm, M4
EM-Tec VS26 compact double action spring-loaded vise holder for up to 26mm, M4 EM-Tec VS26 is a compact double action spring-loaded vise for sample with a maximum clamping size of 26mm with M4 thread. Due to the double sided spring, this vise acts as a centering vise. The vise jaws are opened by push rods which can be remove when the sample holder is loaded in the SEM. Dowel pins can be inserted in the jaws to increase sample size up to 34mm diameter or to hold irregular shaped samples; 4 dowel pin are included. Made from vacuum grade aluminium and stainless steel rods and springs. More info
Product # Unit Price* Add to Quote / Order
12-000322 each €215,00
Qty:



EM-Tec VS42 universal spring-loaded large vise holder for up to 42mm, M4
EM-Tec VS42 universal spring-loaded large vise holder for up to 42mm, M4 EM-Tec VS43 universal double sided spring-loaded larger vise for samples with a maximum vise opening of 42mm. Different type of jaws can be mounted on the EM-Tec universal spring-loaded vise. Opens by pulling the jaws. Dowel pin pins be inserted in the brass slider to extend the opening size and to hold awkwardly shaped samples. With the dowel pins a disc of up 50mm diameter can be held; 4 dowel pins are included. Includes triple grooved/smooth reversible vise jaws. Additional optionally available vise jaws are:
Vise jaw with a single 120° large groove for round samples Standard reversible vise jaws with triple grooved/smooth side; vise jaws can be stacked to increase the jaw heigth from 12 to 24mm. Made from vacuum grade aluminium, brass sliders and stainless steel rods and springs. More info
Product # Unit Price* Add to Quote / Order
12-000320 each €175,00
Qty:



Ordering information for the additional vise clamp plates for the EM-Tec VS42 universal double sided spring-loaded large visen

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec CVC1 standard triple grooved/smooth jaw, 12x40x6mm
EM-Tec CVC1 standard triple grooved/smooth jaw, 12x40x6mm EM-Tec CVC1 standard triple grooved/smooth vise jaws include one side with triple shallow 90° grooves to improve clamping of smaller and/or round samples. The vise jaw can be mounted with the smooth side to avoid markings on the samples. The vise jaws can be mounted op top of each other to increase the double the height of the vise jaws to 24mm. Size of the EM-Tec CVC1 standard vise jaw is 12x40x6mm.
Product # Unit Price* Add to Quote / Order
12-003204 each €38,50
Qty:



EM-Tec CVC2 single large 120 degrees groove vise jaw, 12x40x6mm
EM-Tec CVC2 single large 120 degrees groove vise jaw, 12x40x6mm Em-Tec CVC2 optional single large 120° groove vise jaw to clamp larger round objects. Can be used instead of the standard jaw vise. If needed, two can be mounted op top of each other to increase the vise jaw height to 24mm. Size of the EM-Tec CVC2 single large 120° groove vise jaw is 12x40x6mm.
Product # Unit Price* Add to Quote / Order
12-003205 each €39,50
Qty:
