EM-Tec temporary mounting waxes
ideal for holding delicate samples and making cross sections



EM-Tec TempStick 135C temporary mounting wax, single bar of Ø22 x 175 mm
15-005101
EM-Tec TempStick 135C temporary mounting wax, tray with 20 bars 10 x 10 x 88 mm
15-005120

EM-Tec TempStick 135C, clear sticks

EM-Tec TempStick 135C is a clear temporary mounting wax adhesive which can be readily removed with acetone. It is widely used for temporary mounting of semiconductor wafers for dicing and grinding. It is also used for mounting ceramics, optical materials, ferrites, gemstones and small parts or samples for grinding, cutting, lapping and polishing. EM-Tec TempStick 135C is a tough, polymer based wax adhesive which exhibits high strength, high hardness and full visibility of the mounted object when cold. Excellent cutting properties providing a strong hold and edge sharpness during various abrasive operations at room temperature. It is resistant to most solvents, including water. The most effective solvent for EM-Tec TempStick 135C is acetone. Alternative solvent are methylene chloride and dibasic ester. Ultrasonic cleaning improves removal of the adhesive. It is equivalent to Quickstick 135.
EM-Tec TempStick 135C wax starts to soften at around 72°C, melting points is around 135°C. Attach the work piece when the mounting wax is molten. It sets after a few minutes at room temperature. After setting, machining can start. .

  • single stick of Ø22 x 175 mm with a weight of 90 gram
  • tray with 5 bars of 27 x 12 x 175 mm with a total weight of 450 gram
  • tray with 20 small bars of 10 x 10 x 88 mm length with a total weight of 300 gram

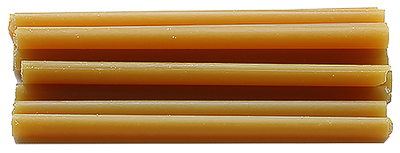

EM-Tec Sticky Wax 70C, yellow sticks

EM-Tec Sticky Wax 70C is a yellow coloured, low temperature temporary mounting wax. Widely used for holding semiconductors, crystals, optical materials, ceramics, gemstones, glass and other samples for cutting, slicing, lapping and polishing operations. It has a moderate hardness and moderate strength with a melting point of 70°C. EM-Tec Sticky Wax 70C is more suitable for heat sensitive materials. It readily hardens at room temperature; at temperatures above 40-50°C the work piece can be re-positioned. Equivalent to Corning rubber 155 sticky wax. Chemically resistant. Available as a box with 48 sticks of Ø6 x 105 mm with a weight of approx. 145 gram.



Ordering information for the EM-Tec TempStick 135C temporary mounting wax

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec TempStick 135C temporary mounting wax, single bar of Ø22 x 175 mm EM-Tec TempStick 135C temporary mounting wax, single bar of Ø22 x 175 mm
Product # Unit Price* Add to Quote / Order
15-005101 each €20,00
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-005101 :   SDS pdf download



EM-Tec TempStick 135C temporary mounting wax, tray with 5 bars of 27x12x175 mm EM-Tec TempStick 135C temporary mounting wax, tray with 5 bars of 27x12x175 mm
Product # Unit Price* Add to Quote / Order
15-005105 pkg/5 €65,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-005105 :   SDS pdf download



EM-Tec TempStick 135C temporary mounting wax, tray with 20 bars 10 x 10 x 88 mm EM-Tec TempStick 135C temporary mounting wax, tray with 20 bars 10 x 10 x 88 mm
Product # Unit Price* Add to Quote / Order
15-005120 pkg/20 €64,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-005120 :   SDS pdf download



Ordering information for the EM-Tec Sticky wax 70C temporary mounting wax
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

15-005148.jpg EM-Tec Sticky Wax 70C temporary mounting wax, 48 sticks of Ø6 x 105 mm
EM-Tec Sticky Wax 70C temporary mounting wax, 48 sticks of Ø6 x 105 mm
Product # Unit Price* Add to Quote / Order
15-005148 pkg/48 €46,50
Qty:

Hazardous Symbol Explanation

hazard fee symbol = Hazard Shipping Fee
Cg = Suspected Carcinogen
F = Flammable
I = Irritant
S = Sensitizer
T = Toxic
Extra info 15-005148 :   SDS pdf download
