EM-Tec preparation pods, SEM stub stands and dust covers


Introduction
ound EM-Tec PrepPod horizontal stand for 11 standard pin stubs

The EM-Tec Preparation pods and SEM stub stands are designed for secure handling of SEM stubs and  to avoid confusion when preparing multiple SEM stubs. For the pin stubs a preparation pod is a necessity to hold the pin stub in the correct position.  For the JEOL and Hitachi cylinder stubs the EM-Tec SEM stub stands probvide a way to handle and transport multiple stubs. The EM-Tec SEM stub stands are also excellent for storing SEM stubs and or SEM holders in a desiccator or other storage location.

There are two type of EM-Tec preparation pods available. They are made from hard anodised aluminum:

EM-Tec PS22 Preparation stand for pin stubs and Hitachi Ø 15 mm stubs with dust cover
EM-Tec multi stub preparation stand for 23 pin stubs

The EM-Tec SEM stub stands available for all types of SEM stubs. Made from clean aluminium:



Ordering Information for EM-Tec preparation pods

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec PS10 Preparation stand horizonal pin stubs up to 100mm diameter
EM-Tec PS10 Preparation stand horizonal pin stubs up to 100mm diameter Solid, round and stabile preparation station for all types and sizes of SEM pin stubs. Holds the pin stubs flat in numbered locations to avoid confusion when preparing multiple stubs. Make the EM-Tec PrepPod your designated preparation location. Holds up to 11 standard Ø12.7mm pin stubs. The centre hole is ideal for the large pins stubs (larger than 32mm) or for larger pin stub type SEM holders. Made from clean room compatible solid, hard anodised aluminum with three feet.
Overall size, including feet, is Ø90 x 30mm.
Product # Unit Price* Add to Quote / Order
15-007510 each €55,00
Qty:



EM-Tec PS12/45 multi-angle EM-Tec preparation stand for horizontal, 45° and 90° pin stubs
EM-Tec PS12/45 multi-angle EM-Tec preparation stand for horizontal, 45° and 90° pin stubs Solid preparation base for all sizes and types of SEM stubs. Ideal for flat, 45° and 90° pin stubs. The tilt angles on the EM-Tec multi-angle PrepPod allows for mounting and/or attaching the sample with conductive paste in a horizontal position on angled pin stubs. Holds up to 13 standard Ø12.7mm pin stubs. Made from clean room compatible solid, hard anodised aluminium with 4 feet.
Overall size, including feet is 88x64x50mm
Product # Unit Price* Add to Quote / Order
15-007512 each €69,50
Qty:

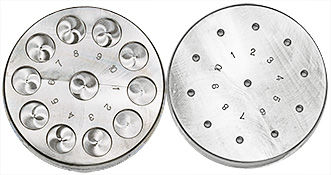

EM-Tec PS22 Preparation stand for pin stubs and Hitachi Ø 15 mm stubs
EM-Tec PS22 Preparation stand for pin stubs and Hitachi Ø 15 mm stubs Solid, round and stabile EM-Tec PS22 preparation station for all types and sizes of SEM pin stubs and Hitachi 15mm cylinder stubs. Holds the stubs flat in numbered locations to avoid confusion when preparing multiple stubs. Make the EM-Tec PS22 your designated preparation location. Holds up to 11 standard Ø12.7mm pin stubs or 11 Hitachi Ø 15mm stubs. The centre hole is ideal for the large pins stubs (larger than 25mm) or for larger pin stub type SEM holders. Made from clean room compatible solid aluminium.
Overall size is Ø80 x 20mm.
Product # Unit Price* Add to Quote / Order
15-007514 each €49,50
Qty:

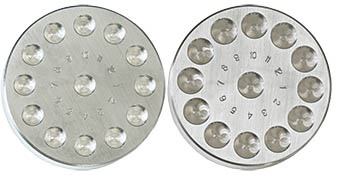

EM-Tec PS26 Preparation stand for JEOL Ø 9.5 and Ø 12.2 mm SEM stubs
EM-Tec PS26 Preparation stand for JEOL Ø 9.5 and Ø 12.2 mm SEM stubs EM-Tec PS26 is a solid, round and stabile preparation station for the JEOL Ø 9.5 and Ø 12.2 mm cylinders tubs. Holds the stubs flat in numbered locations to avoid confusion when preparing multiple stubs. Make the EM-Tec PS26 your designated preparation location. Holds up to 12 of the JEOL Ø 9.5 or Ø 12.2 mm cylinders tubs. Made from clean room compatible solid aluminum.
Overall size is Ø80 x 20mm.
Product # Unit Price* Add to Quote / Order
15-007516 each €49,50
Qty:



EM-Tec PS22 Preparation stand for pin stubs and Hitachi Ø 15 mm stubs with dust cover
EM-Tec PS22 Preparation stand for pin stubs and Hitachi Ø 15 mm stubs with dust cover Dust cover with the solid, round and stabile EM-Tec PS22 preparation station for all types and sizes of SEM pin stubs and Hitachi 15mm cylinder stubs. Holds up to 11 standard Ø12.7mm pin stubs or 11 Hitachi Ø 15mm stubs. The centre hole is ideal for the large pins stubs (larger than 25mm) or for larger pin stub type SEM holders. Made from clean room compatible solid aluminium, polystyrene and ABS.
Overall size is Ø105 x 75mm.
Product # Unit Price* Add to Quote / Order
15-007515 each €56,50
Qty:



EM-Tec PS26 Preparation stand for JEOL Ø 9.5 and Ø 12.2 mm SEM stubs with dust cover
EM-Tec PS26 Preparation stand for JEOL Ø 9.5 and Ø 12.2 mm SEM stubs with dust cover Dust cover with the solid, round and stabile EM-Tec PS26 preparation station for the JEOL Ø 9.5 and Ø 12.2 mm cylinder stubs. Holds up to 12 of the JEOL Ø 9.5 or Ø 12.2 mm cylinders tubs. Made from clean room compatible solid aluminum, polystyrene and ABS.
Overall size, including dust cover, is Ø105 x 75mm.
Product # Unit Price* Add to Quote / Order
15-007517 each €56,50
Qty:



EM-Tec DC82 dust cover with tray, Ø 82 mm ID x 40mm H, blue
EM-Tec DC82 dust cover with tray, Ø 82 mm ID x 40mm H, blue Dust cover with tray made from clear polystyrene and blue ABS. Effective protection against dust for SEM samples, parts and sample holders. Internal diameter is 82mm with an usable height of 40mm. Overall size is Ø 105 x 75 mm.
Product # Unit Price* Add to Quote / Order
15-007519 each €8,95
Qty:



Ordering Information for EM-Tec SEM stub stands

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec small multi stub preparation stand for 23 pin stubs
EM-Tec small multi stub preparation stand for 23 pin stubs Compact preparation stand for 23 of the standard Ø12.7mm pin stubs. Can be used for all sizes of the SEM pin stubs. Compatible with the standard 9.5mm pin length and the shorter 6mm Zeiss pins tubs. Ideal for preparation, handling and storing of pin stubs. Reference notch in one corner to define the positions of the stubs. Made from clean room compatible aluminum sheet with a thickness of 1.25mm.
Overall size is 85x85x15mm.
Product # Unit Price* Add to Quote / Order
15-007523 each €19,50
Qty:



EM-Tec extra large multi-stub preparation stand for 57 pin stubs
EM-Tec extra large multi-stub preparation stand for 57 pin stubs EM-Tec extra large preparation stand for 57 SEM pin stubs Extra large preparation stand for 57 of the standard Ø12.7mm pin stubs or 18 of the Ø25.4mm pin stubs. Can be used for all sizes of the SEM pin stubs. Compatible with the standard 9.5mm pin length and the shorter 6mm Zeiss pins tubs. Ideal for preparation, handling and storing of many small pin stubs or multiple larger diameter pin stubs. Reference notch in one corner to define the positions of the stubs. Made from clean room compatible aluminum sheet with 4 nickel plated brass feet. Overall size is 187x89x12mm
Product # Unit Price* Add to Quote / Order
15-007557 each €24,50
Qty:



EM-Tec medium multi stub preparation stand for 38 pin stubs
EM-Tec medium multi stub preparation stand for 38 pin stubs Larger preparation stand for 38 of the standard Ø12.7mm pin stubs. Can be used for all sizes of the SEM pin stubs. Compatible with the standard 9.5mm pin length and the shorter 6mm Zeiss pins tubs. Ideal for preparation, handling and storing of many small pin stubs or multiple larger diameter pin stubs. Reference notch in one corner to define the positions of the stubs. Made from clean room compatible aluminum sheet.
Overall size is 130x85x15mm.
Product # Unit Price* Add to Quote / Order
15-007538 each €22,50
Qty:



EM-Tec multi stub preparation stand for 28 JEOL 9.5mm stubs
EM-Tec multi stub preparation stand for 28 JEOL 9.5mm stubs Preparation stand for 28 of the smaller JEOL Ø9.5mm stubs. This EM-Tec preparation stand has a base plate which can be placed in either an upper or lower position and is secured with 4 small screws. The upper position accomodates all heights of the Ø9.5mm JEOL stubs. The lower postion is designed to give the taller 9.5mm high cylinder stubs more stability. Reference notch in one corner to define the positions of the stubs. Made from clean room compatible aluminum sheet with a thickness of 1.25mm.
Overall size is 130x85x15mm.
Product # Unit Price* Add to Quote / Order
15-007527 each €23,50
Qty:



EM-Tec multi stub preparation stand for 28 JEOL 12.2mm stubs
EM-Tec multi stub preparation stand for 28 JEOL 12.2mm stubs Preparation stand for 28 of the JEOL Ø12.2mm stubs. This EM-Tec preparation stand has a base plate which can be placed in two positions and is held with 4 small screws. The upper position is for all heights of the Ø12.2mm JEOL stubs. The lower postion gives the taller Ø12.2mm high cylinder stubs more stability. Reference notch in one corner to define the positions of the stubs. Made from clean room compatible aluminum sheet with a thickness of 1.25mm.
Overall size is 130x85x15mm.
Product # Unit Price* Add to Quote / Order
15-007528 each €23,50
Qty:



EM-Tec multi stub preparation stand for 28 Hitachi Ø15mm stubs
EM-Tec multi stub preparation stand for 28 Hitachi Ø15mm stubs Preparation stand for 28 of the Hitachi Ø15mm stubs. This EM-Tec preparation stand has a base plate which can be placed in two positions and is held with 4 small screws. The drop-in and lift-out stand is easier to use than preparation or storage stands with M4 thread. The upper position is for both heights of the Ø15mm Hitachi stubs. The lower postion gives the10mm high cylinder stubs more stability. Reference notch in one corner to define the positions of the stubs. Made from clean room compatible aluminum sheet with a thickness of 1.25mm.
Overall size is 130x85x15mm.
Product # Unit Price* Add to Quote / Order
15-007529 each €23,50
Qty:
