Micro-Tec glass microscope slides
75 x 25mm and 75 x 50mm slides


                                        Example
Micro-Tec glass microscope slides
Introduction

Premier quality Micro-Tec glass microscope slides are made from optically clear and corrosion resistant select quality soda lime glass. All slides comprise precision ground edges are pre-cleaned. This low iron soda lime glass has no notable interference from UV light in the 250-350nm range. Currently available slides are:

  • standard plain slides, 75 x 25mm, with precision ground edges.

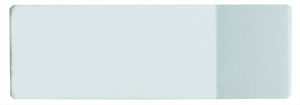

  • standard slides with frosted edge, 75 x 25mm, with precision ground edges.
  • large plain slides, 76 x 51mm, with precision ground edges.
  • large slide with frosted edge, 76 x 51mm, with precision ground edges.
  • concavity slides ,76 x 25mm, with optically clear single well or double wells. Ideal for liquid samples and tissue cultures. Well size is 15mm diameter and 0.5-0.55mm deep.

Specifications of the Micro-Tec glass microscope slides
Product #

Type

Edge

Slide material

Dimensions

Precleaned

Packaging

51-001201

Plain, standard

ground

Soda lime glass

76 x 25 x1.1mm

yes

Box/12

51-001206

Plain, standard

ground

Soda lime glass

75 x 25 x 1mm

yes

Box/72

51-001207

Plain, frosted edge

ground

Soda lime glass

75 x 25 x 1mm

yes

Box/72

51-001211

Plain, single well

ground

Soda lime glass

76 x 25 x1.1mm

yes

Box/12

51-001212

Plain, double well

ground

Soda lime glass

76 x 25 x1.1mm

yes

Box/12

51-001232

Large plain

ground

Soda lime glass

76 x 51 x1.1mm

yes

Box/72

51-001235

Large, frosted edge

ground

Soda lime glass

76 x 51 x1.1mm

yes

Box/72


Typical chemical composition of soda lime glass microscope slides          Typical physical properties of soda lime glass microscope slides
Compound

Wt%

SiO2

72.2

Na2O

14.3

CaO

6.4

MgO

4.3

Al2O3

1.2

K2O

1.2

SO3

0.03

Fe2O3

0.03

TiO2

0.01

Parameter

Value/unit

Light transmission, total solar

91.5%

Refractive index

1.517 at 546.07nm

Density

2.48 g/cm3

Hardness

6 Mohs scale

Coefficient of expansion

90.6 x 10-7 °C

Poission's ratio

0.2

Strain Point

494°C

Annealing temperature

545°C

Softening temperature

720°C

Melting temperature

1675°C



Ordering Information for Micro-Tec glass microscope slides

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Micro-Tec standard plain glass microscope slides, precleaned, 76x25x1.1mm Micro-Tec standard plain glass microscope slides, precleaned, 76x25x1.1mm
Product # Unit Price* Add to Quote / Order
51-001201 box/12 €0,85
Quantity discount: 10 or more: €0,80 box/12
Qty:



Micro-Tec standard plain glass microscope slides, precleaned, 75x25x1mm Micro-Tec standard plain glass microscope slides, precleaned, 75x25x1mm
Product # Unit Price* Add to Quote / Order
51-001206 box/72 €4,50
Quantity discount: 20 or more: €3,38 box/72
Qty:



Micro-Tec standard plain glass microscope slides with frosted edge, precleaned, 75x25x1mm Micro-Tec standard plain glass microscope slides with frosted edge, precleaned, 75x25x1mm
Product # Unit Price* Add to Quote / Order
51-001207 box/72 €5,95
Quantity discount: 20 or more: €4,46 box/72
Qty:



Micro-Tec single well concavity glass microscope slides, precleaned, 76x25x1.1mm Micro-Tec single well concavity glass microscope slides, precleaned, 76x25x1.1mm
Product # Unit Price* Add to Quote / Order
51-001211 box/12 €5,30
Quantity discount: 10 or more: €5,05 box/12
Qty:



Micro-Tec double well concavity glass microscope slides, precleaned, 76x25x1.1mm Micro-Tec double well concavity glass microscope slides, precleaned, 76x25x1.1mm
Product # Unit Price* Add to Quote / Order
51-001212 box/12 €6,25
Quantity discount: 10 or more: €5,95 box/12
Qty:



Micro-Tec large plain glass microscope slides, precleaned, 76x51x1.1mm<br><span class='red'>currently not available</span> Micro-Tec large plain glass microscope slides, precleaned, 76x51x1.1mm
currently not available
Product # Unit Price* Add to Quote / Order
51-001232 box/72 €10,25
Quantity discount: 10 or more: €9,75 box/72
Qty:



Micro-Tec large plain glass microscope slides with frosted edge, precleaned, 76x51x1.1mm Micro-Tec large plain glass microscope slides with frosted edge, precleaned, 76x51x1.1mm
Product # Unit Price* Add to Quote / Order
51-001235 box/72 €14,60
Quantity discount: 10 or more: €13,90 box/72
Qty:
