EM-Tec Multiple pin stub holders

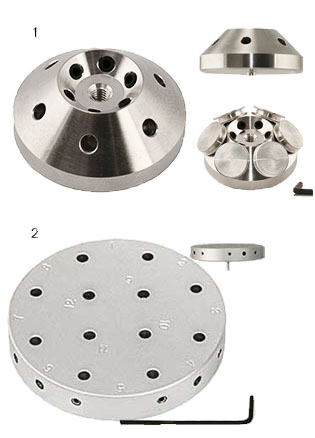

        EM-Tec multiple pin stub holders link to EM-Tec P6/45 multi pin stub holder link to EM-Tec multi pin stub holder for 12 pin stubs, Ø62x10.5mm with pin

        1: #12-000346 EM-Tec P6/45 multi pin stub holder

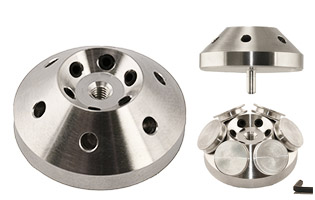

                Ø45° for 6 pin stubs, Ø35x14mm with M4 thread.
        2: #12-000219 EM-Tec P12 multi pin stub holder for 12 pin stubs,
                Ø62x10.5mm with pin
.


<Introduction

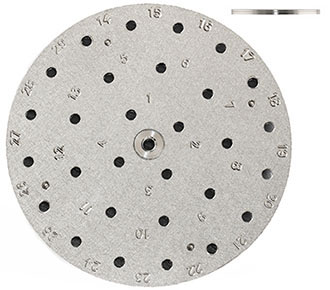

The Em-Tec multiple pin stub holders are an efficient and cost-effective way to load multiple pin stubs with specimens in the SEM.  Saves time, allows multi sample processing or quickly comparing samples against each other. Intended for holding the standard 12.7mm (1/2”) pin stubs, although the larger 25.4mm (1”)pin stubs can be used on the holders for 6 pin stubs or more.  All the positions on the EM-Tec multiple pin stub holders for 6 pin stubs or more are numbered for easy identification and. Pin stubs are securely  held with small M3 stainless steel set screws for the multi pin stub holders up to 12 pin stubs; an allen key is included. On the 29 and 49 multi pin stub holders, the pin stubs are held with an integrated stainless steel spring.  The 6 and 8 multi pin holders comprise engraved crossed lines to assist with directional navigation. They are all made from vacuum grade aluminium and have undergone a final cleaning step which results in a satin surface finish. Available with:

  • standard pin to fit on SEMs which use the standard pin; FEI, Philips, Tescan, Phenom, Aspex, RJLee,      AmRay, Cambridge Instruments, Leica, CamScan, Aspex, ETEC and Novascan SEMs
  • M4 threaded hole; compatible with Hitachi SEMs, FESEMs and table top SEMs and with the EM-Tec versatile SEM stage adapters
  • 32mm JEOL SEM stub format, compatible with 32mm stub holders on JEOL SEMs

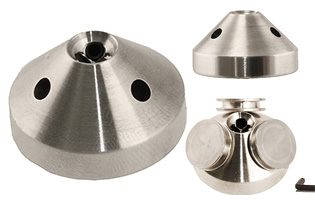

Additionally there are two 45 degrees pre-tilt multi-pin holders available:

  • 3 x 45° pin stub holders
  • 6 x 45° pin stub holders

Both with pin and M4 threaded hole.

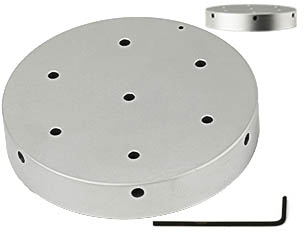

Special version for 7 x 25.4mm pin stubs is available as well: EM-Tec P7

Capacity, size and compatibility of the EM-Tec multi pin stub holders:

Product numbers

Name

Pin stubs

Dimensions w/o pin

Pin securing method

SEM stage compatibility

12-000214

EM-Tec P4

4

Ø31.5x10.5mm

Set screw

Standard 3.2mm pin

12-000314

EM-Tec P4

4

Ø31.5x10.5mm

Set screw

M4 thread

12-000517

EM-Tec P4

4

Ø31.5x10.5mm

Set screw

JEOL 32mm SEM stub

12-000216

EM-Tec P6

6

Ø43x10.5mm

Set screw

Standard 3.2mm pin

12-000316

EM-Tec P6

6

Ø43x10.5mm

Set screw

M4 thread

12-000218

EM-Tec P8

8

Ø50x10.5mm

Set screw

Standard 3.2mm pin

12-000318

EM-Tec P8

8

Ø50x10.5mm

Set screw

M4 thread

12-000219

EM-Tec P12

12

Ø62x10.5mm

Set screw

Standard 3.2mm pin

12-000319

EM-Tec P12

12

Ø62x10.5mm

Set screw

M4 thread

12-000229

EM-Tec P29

29

Ø90x7mm

Internal spring

Standard 3.2mm pin

12-000329

EM-Tec P29

29

Ø90x5mm

Internal spring

M4 thread

12-000249*

EM-Tec P49

49

Ø117x7mm

Internal spring

Standard 3.2mm pin

12-000349*

EM-Tec P49

49

Ø117x5mm

Internal spring

M4 thread

12-000243

EM-Tec P3/45

3 x 45°

Ø25x14mm

Set screw

Standard 3.2mm pin

12-000343

EM-Tec P3/45

3 x 45°

Ø25x14mm

Set screw

M4 thread

12-000246

EM-Tec P6/45

6 x 45°

Ø35x14mm

Set screw

Standard 3.2mm pin

12-000346

EM-Tec P6/45

6 x 45°

Ø35x14mm

Set Screw

M4 thread

12-000237

EM-Tec P7

7x25.4

Ø78x15mm

Set Screw

Standard 3.2mm pin

12-000337

EM-Tec P7

7x25.4

Ø78x15mm

Set Screw

M4 thread



Ordering Information for EM-Tec multiple pin stub holders for SEMs using pin stubs; TFS, FEI, Philips, Zeiss, LEO Tescan, AmRay, Pemtron, Coxem, Aspex, RJLee, Cambridge Instruments, Leica, and CamScan

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec P4 multi pin stub holder for 4 pin stubs, Ø31.5x10.5mm, pin EM-Tec P4 multi pin stub holder for 4 pin stubs, Ø31.5x10.5mm, pin
Product # Unit Price* Add to Quote / Order
12-000214 each €26,50
Qty:



EM-Tec P6 multi pin stub holder for 6 pin stubs, Ø43x10.5mm, pin EM-Tec P6 multi pin stub holder for 6 pin stubs, Ø43x10.5mm, pin
Product # Unit Price* Add to Quote / Order
12-000216 each €59,50
Qty:



EM-Tec P8 multi pin stub holder for 8 pin stubs, Ø50x10.5mm, pin EM-Tec P8 multi pin stub holder for 8 pin stubs, Ø50x10.5mm, pin
Product # Unit Price* Add to Quote / Order
12-000218 each €76,60
Qty:



EM-Tec P12 multi pin stub holder for 12 pin stubs, Ø62x10.5mm, pin EM-Tec P12 multi pin stub holder for 12 pin stubs, Ø62x10.5mm, pin
Product # Unit Price* Add to Quote / Order
12-000219 each €98,50
Qty:

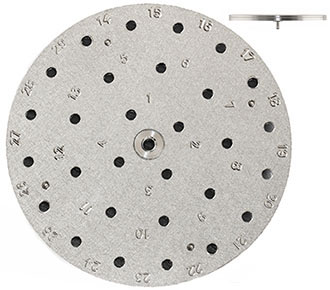

EM-Tec P29 multi pin stub holder for 29 pin stubs, Ø90x7mm, pin EM-Tec P29 multi pin stub holder for 29 pin stubs, Ø90x7mm, pin
Product # Unit Price* Add to Quote / Order
12-000229 each €186,50
Qty:

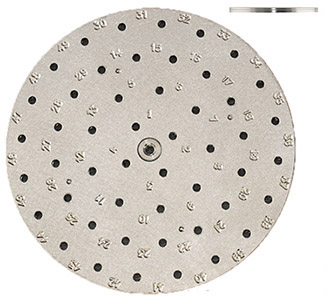

EM-Tec P49 multi pin stub holder for 49 pin stubs, Ø117x7mm, pin EM-Tec P49 multi pin stub holder for 49 pin stubs, Ø117x7mm, pin
Product # Unit Price* Add to Quote / Order
12-000249 each €249,50
Qty:

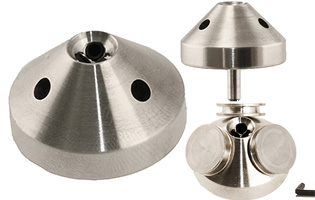

EM-Tec P3/45 multi pin stub holder 45° for 3 pin stubs, Ø25x14mm, pin EM-Tec P3/45 multi pin stub holder 45° for 3 pin stubs, Ø25x14mm, pin
Product # Unit Price* Add to Quote / Order
12-000243 each €69,50
Qty:



EM-Tec P6/45 multi pin stub holder 45° for 6 pin stubs, Ø35x14mm, pin EM-Tec P6/45 multi pin stub holder 45° for 6 pin stubs, Ø35x14mm, pin
Product # Unit Price* Add to Quote / Order
12-000246 each €95,00
Qty:

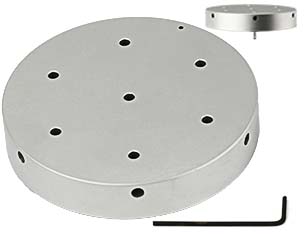

EM-Tec P7 multi pin stub holder for 7 x Ø25.4mm pin stubs, Ø78x15mm, pin EM-Tec P7 multi pin stub holder for 7 x Ø25.4mm pin stubs, Ø78x15mm, pin
Product # Unit Price* Add to Quote / Order
12-000237 each €98,50
Qty:



Ordering Information for EM-Tec multiple pin stub holders for Hitachi SEMs or the versatile EM-Tec stage SEM stage adapters.

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec P4 multi pin stub holder for 4 pin stubs, Ø31.5x10.5mm, M4 EM-Tec P4 multi pin stub holder for 4 pin stubs, Ø31.5x10.5mm, M4
Product # Unit Price* Add to Quote / Order
12-000314 each €24,50
Qty:



EM-Tec P6 multi pin stub holder for 6 pin stubs, Ø43x10.5mm, M4 EM-Tec P6 multi pin stub holder for 6 pin stubs, Ø43x10.5mm, M4
Product # Unit Price* Add to Quote / Order
12-000316 each €57,50
Qty:



EM-Tec P8 multi pin stub holder for 8 pin stubs, Ø50x10.5mm, M4 EM-Tec P8 multi pin stub holder for 8 pin stubs, Ø50x10.5mm, M4
Product # Unit Price* Add to Quote / Order
12-000318 each €74,60
Qty:



EM-Tec P12 multi pin stub holder for 12 pin stubs, Ø62x10.5mm, M4 EM-Tec P12 multi pin stub holder for 12 pin stubs, Ø62x10.5mm, M4
Product # Unit Price* Add to Quote / Order
12-000319 each €96,50
Qty:



EM-Tec P29 multi pin stub holder for 29 pin stubs, Ø90x7mm, M4 EM-Tec P29 multi pin stub holder for 29 pin stubs, Ø90x7mm, M4
Product # Unit Price* Add to Quote / Order
12-000329 each €184,50
Qty:



EM-Tec P49 multi pin stub holder for 49 pin stubs, Ø117x7mm, M4 EM-Tec P49 multi pin stub holder for 49 pin stubs, Ø117x7mm, M4
Product # Unit Price* Add to Quote / Order
12-000349 each €247,50
Qty:



EM-Tec P3/45 multi pin stub holder 45° for 3 pin stubs, Ø25x14mm, M4 EM-Tec P3/45 multi pin stub holder 45° for 3 pin stubs, Ø25x14mm, M4
Product # Unit Price* Add to Quote / Order
12-000343 each €67,00
Qty:

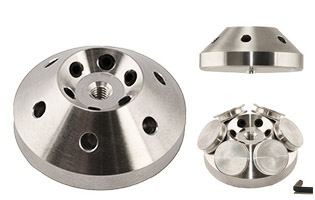

EM-Tec P6/45 multi pin stub holder 45° for 6 pin stubs, Ø35x14mm, M4 EM-Tec P6/45 multi pin stub holder 45° for 6 pin stubs, Ø35x14mm, M4
Product # Unit Price* Add to Quote / Order
12-000346 each €92,50
Qty:



EM-Tec P7 multi pin stub holder for 7 x Ø25.4mm pin stubs, Ø78x15mm, M4 EM-Tec P7 multi pin stub holder for 7 x Ø25.4mm pin stubs, Ø78x15mm, M4
Product # Unit Price* Add to Quote / Order
12-000337 each €94,50
Qty:



Ordering Information for EM-Tec multiple pin stub holders for JEOL SEMs

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec P4 multi pin stub holder for 4 pin stubs, Ø31.5x10.5mm, JEOL 32mm EM-Tec P4 multi pin stub holder for 4 pin stubs, Ø31.5x10.5mm, JEOL 32mm
Product # Unit Price* Add to Quote / Order
12-000517 each €24,50
Qty:
