EM-Tec and Gilder TEM grid storage boxes


                                              A few examples
EM-Tec and Gilder TEM grid storage boxes #28-001014 EM-Tec CGB-6 premium cryo grid box #28-001030 EM-Tec GB-30 TEM grid storage box for 30 TEM grids #28-001004 EM-Tec CGB-4 cryo grid box #28-001099 Gilder SB100 TEM grid storage box for 100 TEM grid #28-001050 Gilder SB50 TEM grid storage box for 50 TEM grids #28-002100 EM-Tec FSB100S FIB lift-out grid storage box

1- #28-001014 EM-Tec CGB-6 premium cryo grid box
2- #28-001004 EM-Tec CGB-4 cryo grid box
3- #28-001030 EM-Tec GB-30 TEM grid storage box for 30 TEM grids
4- #28-001099 Gilder SB100 TEM grid storage box for 100 TEM grid
5- #28-001050 Gilder SB50 TEM grid storage box for 50 TEM grids
6- #28-002100 EM-Tec FSB100S FIB lift-out grid storage box
Introduction

Wide choice of practical TEM grid boxes for short term storage handling, shipping and long term storage of TEM grids and FIB lift-out grids. All offered TEM grid boxes include a clear plastic lid for easy grid location. The individual storage positions are either numbered or indexed for easy retrieval of the TEM grids. The complete choice of TEM boxes range from economy storage boxes to fully anti-static Gilder grid boxes include:

  • EM-Tec practical, cost-efficient TEM grid boxes with 100 and 50 TEM grid capacity
  • EM-Tec C1 full aluminium grid box for a single TEM grid or calibration TEM grid
  • EM-Tec GB-30 has the same size of a 76x25mm (3”x1”) microscope slide with 30 “three” shaped cavities
  • EM-Tec Cryo Grid boxes with a choice standard, pin type lid, premium and full aluminium grid boxes for 4 cryo grids
  • EM-Tec lift out grid boxes for 100 FIB lift out grids with single or double clip
  • EM-Tec aluminium FA-4 FIB lift-out grid box for 4 lift-out grids
  • Gilder TEM grid boxes with 100, 50 and 25 TEM grid capacity







Specifications and storage capacity of the TEM grid storage boxes

Product #

Name

Capacity

Size

Materials base + lid

28-001001

EM-Tec CG-1

1 TEM grid

Ø14 x 11mm

Aluminium + Aluminium

28-001100

EM-Tec GB-100

100 TEM grids

75 x 65 x 6.5mm

Reduced static ABS + PMMA

28-001127

EM-Tec TGB-100

100 TEM grids

92 x 55 x 7mm

Anti-static ABS + PMMA

28-001125

EM-Tec TGB-50

50 TEM grids

74 x 38 x 7mm

Anti-static ABS + PMMA

28-001030

EM-Tec GB-30

30 TEM grids

76 x 25 x 6.5mm

Reduced static ABS + PMMA

28-001004

EM-Tec CGB-4

4 Cryo grids

Ø14 x 7.3mm

Reduced static ABS + PMMA

28-001014

EM-Tec CGB-6

4 Cryo grids

Ø14 x 9mm

Anti-static polymer blend

28-001007

EM-Tec CGB-7

4 Cryo grids

Ø14 x 14mm

Reduced static ABS

28-001009

EM-Tec CGB-4A

4 Cryo grids

Ø14 x 7.3mm

Aluminium + Aluminium

28-002004

EM-Tec FA-4

4 FIB grids

Ø14 x 11mm

Aluminium + Aluminium

28-002100

EM-Tec FSB-100S

100 FIB grids

51 x 55 x 11mm

Conductive PP + PS / PE clip

28-002200

EM-Tec FSB-100D

100 FIB grids

51 x 55 x 11mm

Conductive PP + PS / PE clips

28-001099

Gilder SB100

100 TEM grids

85 x 60 x 7mm

Anti-static ABS + antistatic CAB

28-001050

Gilder SB50

50 TEM grids

75 x 65 x 7mm

Anti-Static ABS + antistatic CAB

28-001025

Gilder SB25

25 TEM grids

53 X 36 X 6mm

Anti-Static ABS + Polycarbonate



Ordering Information for EM-Tec TEM grid storage boxes

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

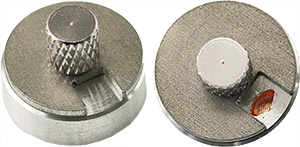

EM-Tec CG-1 aluminium grid box for single TEM grid or calibration grid
EM-Tec CG-1 aluminium grid box for single TEM grid or calibration grid The EM-Tec CG-1 aluminium grid box has been designed to store a calibration grid or a single TEM grid. All components are made from durable and anti-static aluminium. The robust aluminium body and lid can be easily cleaned and prevent contamination caused by hydrocarbons originating from plastics. The aluminium thumb screw allows for easy opening and secure closing of the lid. Can be easily stored in a clean vacuum chamber. Dimensions are Ø14 x 11mm.
Product # Unit Price* Add to Quote / Order
28-001001 EM-Tec CG-1 aluminium grid box for single TEM grid or calibration grid
Qty:

each €22,50

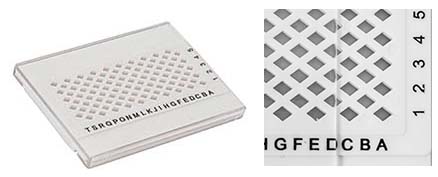

EM-Tec GB-100 TEM grid storage box for 100 TEM grids
EM-Tec GB-100 TEM grid storage box for 100 TEM grids The compact GB-100 TEM grid boxes have a capacity of 100 standard 3.05mm TEM grids and are ideal for storing, shipping and routine handling. The EM-Tec GB-100 TEM grid box consists of two parts. The body with the storage cavities made from low reduced ABS. A clear oderless acrylic lid which slides over the body to close the cavities.
Safe storage is provide in the diamond shaped cavities. Only the rim of the TEM grid will touch the sides of the cavity. Each position is referenced with letters and numbers printed on the grid storage box. A TEM grid storage card is provided which each box to record in which positions the samples are stored. Dimensions of the EM-Tec GB-100 TEM grid box are: 75 x 55 x 6.5mm.
Product # Unit Price* Add to Quote / Order
28-001100 EM-Tec GB-100 TEM grid storage box for 100 TEM grids
Qty:

each €7,25
Quantity discount: 10 or more: €6,95 each

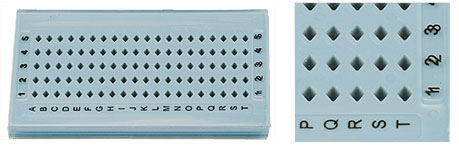

EM-Tec TGB-100 economy TEM grid storage box for 100 TEM grids
EM-Tec TGB-100 economy TEM grid storage box for 100 TEM grids Well-designed economy TEM grid box with a capacity of 100 the standard 3.05mm TEM grids. Ideal for long term storage. Body with the 100 storage cavities is made of blue anti-static ABS with a clear acrylic sliding lid. Positions are referenced with numbers and letters, clearly printed on the body. The sliding lid has also 5 positions printed on the inside to enable easy location. Wider spacing of the cavities prevent confusion when loading and make retrieval easier. Dimensions of the EM-Tec TGB-100 TEM grid box are: 92 x 55 x 7mm.
Product # Unit Price* Add to Quote / Order
28-001127-1 EM-Tec TGB-100 economy TEM grid storage box for 100 TEM grids
Qty:

each €5,95
28-001127-12 EM-Tec TGB-100 economy TEM grid storage box for 100 TEM grids
Qty:

box/12 €69,50

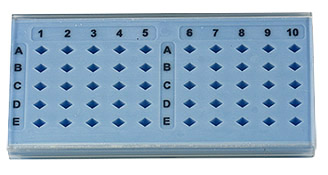

EM-Tec TGB-50 economy TEM grid storage box for 50 TEM grids
EM-Tec TGB-50 economy TEM grid storage box for 50 TEM grids Well-designed compact economy TEM grid box with a capacity of 50 the standard 3.05mm TEM grids. Ideal for transport and storage. Body with the 50 storage cavities is made of blue anti-static ABS with a clear acrylic sliding lid. Positions are referenced with numbers and letters, clearly printed on the body. Wider spacing of the cavities prevent confusion when loading and make retrieval easier. Dimensions of the EM-Tec TGB-50 TEM grid box are: 75 x 36 x 7mm.
Product # Unit Price* Add to Quote / Order
28-001125-1 EM-Tec TGB-50 economy TEM grid storage box for 50 TEM grids
Qty:

each €5,20
28-001125-12 EM-Tec TGB-50 economy TEM grid storage box for 50 TEM grids
Qty:

box/12 €59,90

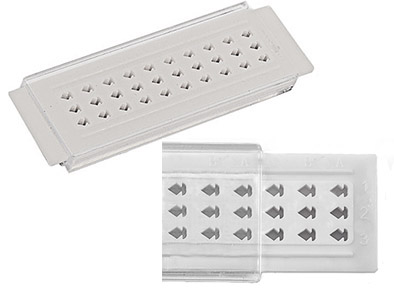

EM-Tec GB-30 TEM grid storage box for 30 TEM grids
EM-Tec GB-30 TEM grid storage box for 30 TEM grids The novel EM-Tec GB-30 TEM grid boxes exhibit a capacity of 30 standard 3.05 TEM grids and have the same dimensions as standard glass microscopes to enable easy storage. The EM-Tec GB-30 TEM grid box consists of a body with 30 uniquely “tree” shaped compartments made from reduced static ABS and a clear odorless acrylic lid.
Each position is referenced by numbers and letters molded on the grid storage box. The unique tree shaped cavity provides extra protection for samples on the TEM grid; when the TEM grid is picked up at the base of the tree shaped cavity, the tweezers tips only touch the rim of the TEM grid.
The EM-Tec GB-30 TEM grid box dimensions are the same as those of a glass microscope slide and can be stored in microscope slide boxes. Due to the thickness, the EM-Tec GB-30 takes two slots in a microscope slide box. Dimensions are 76 x 25 x 6.5mm
Product # Unit Price* Add to Quote / Order
28-001030 EM-Tec GB-30 TEM grid storage box for 30 TEM grids
Qty:

each €9,45
Quantity discount: 10 or more: €8,95 each


Ordering Information for EM-Tec cryo grid storage boxes

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

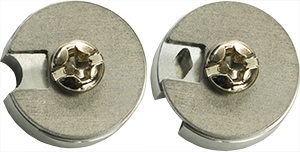

EM-Tec CGB-4A aluminum, fully cryo compatible cryo grid box for 4 TEM grids
EM-Tec CGB-4A aluminum, fully cryo compatible cryo grid box for 4 TEM grids The EM-Tec CGB-4A aluminium cryo grid box is used with cryo vitrification systems. It is a round aluminium grid box with 4 diamond shaped positions, an index notch and an aluminium lid. The lid is held in place with a stainless steel Phillips pan head screw. The robust aluminum construction is fully cryo compatible and easy to clean with solvents or low power plasma. The EM-Tec CGB-4A is compatible with the TFS / FEI Vitrobot, Gatan CP3 / 3500 / 626 and Leica EM GP cryo systems. Dimensions of the EM-Tec CGB-8 are Ø14 x 7.3 mm. Screw size is M3x5mm. For handling the cryo grid box in LN2 we offer the EM-Tec 553.AM cryo grid box tweezers.
Product # Unit Price* Add to Quote / Order
28-001009 EM-Tec CGB-4A aluminum, fully cryo compatible cryo grid box for 4 TEM grids
Qty:

each €22,50


EM-Tec CGB-4 Cryo grid box for 4 TEM grids
EM-Tec CGB-4 Cryo grid box for 4 TEM grids The EM-Tec GB-4 cryo grid box is used with cryo vitrification systems. It is a round grid box with 4 diamond shaped positions, an index notch and a clear lid. The clear lid has a slot which can be rotated to access the cavities. It is held in place with a stainless steel #1 phillips pan head screw.
The EM-Tec GB-4 cryo grid box is compatible with the FEI Vitrobot, Gatan CP3, Gatan 3500, Gatan 626 and Leica EM GP cryo systems. Dimensions of the EM-Tec GB-4 are Ø14 x 5.2mm. Screw size is M3x5mm. For handling the cryo grid box in LN2 we offer the EM-Tec 553.AM cryo grid box tweezers.
Product # Unit Price* Add to Quote / Order
28-001004-1 EM-Tec GB-4 cryo grid box for 4 TEM grids
Qty:

each €9,95
28-001004-10 EM-Tec CGB-4 cryo grid box for 4 TEM grids
Qty:

pkg/10 €94,50
28-001004-100 EM-Tec CGB-4 cryo grid box for 4 TEM grids
Qty:

pkg/100 €895,00


EM-Tec GB-4L clear lid for EM-Tec CGB-4 cryo grid box
EM-Tec GB-4L clear lid for EM-Tec CGB-4 cryo grid box EM-Tec GB-4L clear lid for EM-Tec CGB-4 cryo grid box, used with cryo vitrification systems.
Product # Unit Price* Add to Quote / Order
28-001005-10 EM-Tec GB-4L clear lid for EM-Tec CGB-4 cryo grid box
Qty:

pkg/10 €30,00

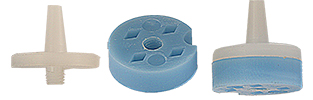

EM-Tec CGB-7 Cryo grid box for 4 TEM grids with pin type lid
EM-Tec CGB-7 Cryo grid box for 4 TEM grids with pin type lid The EM-Tec CGB-7 cryo grid box is used with cryo vitrification systems. It is a round grid box with 4 diamond shaped positions and a pin type lid. The EM-Tec CGB-7 cryo grid box is compatible with the FEI Vitrobot, Gatan CP3, Gatan 3500, Gatan 626 and Leica EM GP cryo systems.Dimensions of the EM-Tec CGB-7 are Ø14 x 5.2mm, M3 thread. EM-Tec CGT1 gripper tool for cryo grid box with pin type lid.
Product # Unit Price* Add to Quote / Order
28-001007-1 EM-Tec CGB-7 cryo grid box for 4 TEM grids with pin type lid
Qty:

each €18,50
28-001007-10 EM-Tec CGB-7 cryo grid box for 4 TEM grids with pin type lid
Qty:

pkg/10 €176,00


EM-Tec GB-7L pin type lid for EM-Tec cryo grid box
EM-Tec GB-7L pin type lid for EM-Tec cryo grid box EM-Tec GB-7L pin type lid for EM-Tec GB-7 cryo grid box, used with cryo vitrification systems.
Product # Unit Price* Add to Quote / Order
28-001008-1 EM-Tec GB-7L pin type lid for EM-Tec cryo grid box
Qty:

each €10,95
28-001008-10 EM-Tec GB-7L pin type lid for EM-Tec cryo grid box
Qty:

pkg/10 €104,00


EM-Tec CGB-6 premium Cryo grid box for 4 TEM grids with click-stop lid and unique numbering
EM-Tec CGB-6 premium Cryo grid box for 4 TEM grids with click-stop lid and unique numbering The EM-Tec CGB-6 premium cryo grid box has been developed in close collaboration with Jan Löwe at the MRC Laboratory of Molecular Biology in Cambridge, UK. Its primary use is for storing cryo vitrification samples on TEM grids. This practical cryo grid box incorporates a number of improvements like a click-stop rotating lid, a vertical ridge on the lid for easy rotation, marked cavities and a unique number for each individual cryo grid box. The base is a round grid box with 4 diamond shaped positions, marking of each position and an index notch. The lid can be rotated with standard laboratory tweezers and the click-stop mechanism keeps the lid on the base and in place when a cavity is selected. The unique numbering makes it easy to archive the samples, to retrieve from storage and to avoid archiving mistakes or mix-up of samples. The EM-Tec CGB-6 cryo grid box is compatible with the FEI Vitrobot, Gatan CP3, Gatan 3500, Gatan 626 and Leica EM GP cryo systems. Dimensions of the EM-Tec CGB-6 are Ø14 x 9mm. Made from an anti-static polymer blend.
Product # Unit Price* Add to Quote / Order
28-001014-1 EM-Tec CGB-6 premium Cryo grid box for 4 TEM grids with click-stop lid and unique numbering
Qty:

each €9,95
28-001014-10 EM-Tec CGB-6 premium Cryo grid box for 4 TEM grids with click-stop lid and unique numbering
Qty:

pkg/10 €94,50
28-001014-100 EM-Tec CGB-6 premium Cryo grid box for 4 TEM grids with click-stop lid and unique numbering
Qty:

pkg/100 €895,00


Ordering Information for EM-Tec FIB lift-out grid storage boxes

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

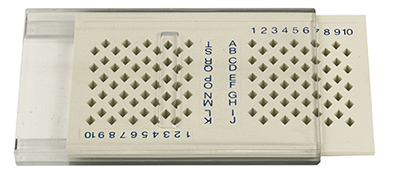

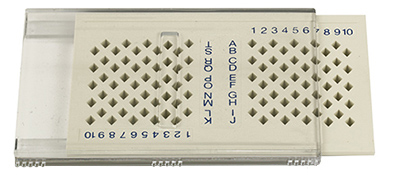

Gilder SB100 TEM grid storage box for 100 TEM grids
Gilder SB100 TEM grid storage box for 100 TEM grids The Gilder SB100 TEM grid storage box has a storage capacity for up to 100 standard 3.05mm TEM grids. This grid box has diamond shaped storage compartments and a clear plastic sliding lid with a window in the middle. The window in the lid reduces the amount of exposed grids. To improve grid handling the plastic boxes are made from anti-static materials; anti-static ABS for the box and anti-static CAB polymer for the lid. The ridges on the front and back further reduce static and provide a better grip of the lid at the back. Each storage position is referenced by printed letters and numbers printed on the SB100 grid box. Dimensions of the Gilder SB100 TEM grid box are: 85 x 60 x 7mm.
Product # Unit Price* Add to Quote / Order
28-001099 Gilder SB100 TEM grid storage box for 100 TEM grids
Qty:

each €12,95
Quantity discount: 10 or more: €12,45 each

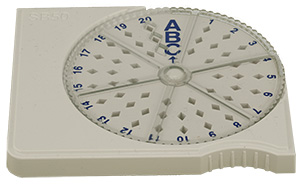

Gilder SB50 TEM grid storage box for 50 TEM grids
Gilder SB50 TEM grid storage box for 50 TEM grids The unique feature of the Gilder SB50 TEM grid storage box is the circular design with the clear plastic rotating lid. The opening in the lid expose only two or three grids at the time, depending on the position. This safety feature makes this grid box ideal for safe handling of sensitive TEM grids. Storage capacity in the diamond shaped compartments is up to 50 TEM grids. To improve grid handling the plastic boxes are made from anti-static ABS.for the box and anti-static CAB polymer for the lid. Each storage position is referenced by letters and numbers printed on the grid box. Ridges and grooves make these boxes stackable. Dimensions of the Gilder SB50 TEM grid box are: 75 x 65 x 7mm.
Product # Unit Price* Add to Quote / Order
28-001050 Gilder SB50 TEM grid storage box for 50 TEM grids
Qty:

each €11,95
Quantity discount: 10 or more: €11,45 each


Gilder SB25 compakt TEM grid storage box for 25 TEM grids
Gilder SB25 compakt TEM grid storage box for 25 TEM grids The compact Gilder SB25 TEM grid storage box has a stroage capapcity for up to 25 standard 3.05mm grid TEM grids. This grid box diamond shaped storage compartments and a clear plastic sliding lid. The SB25 box contains two side strips for easier handling during specimen removal and for annotation. Each storage position is referenced by letters and numbers molded on the SB25 grid box. Dimensions of the Gilder SB25 TEM grid box are: 57 x 36 x 6mm.
Product # Unit Price* Add to Quote / Order
28-001025 Gilder SB25 compakt TEM grid storage box for 25 TEM grids
Qty:

each €4,95
Quantity discount: 10 or more: €4,75 each


Ordering Information for Gilder TEM grid storage boxes

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec FA-4 FIB lift-out grid box for 4 grids with coloured thumb screw
EM-Tec FA-4 FIB lift-out grid box for 4 grids with coloured thumb screw The EM-Tec FA-4 aluminium FIB lift-out grid box has been especially designed for storing and transporting valuable FIB lift-out grids. The diamond shaped cavity is only 1.8mm deep to accommodate the valuable FIB lift out grids or half grids. The robust aluminium body and lid can be easily cleaned and prevent contamination caused by hydrocarbons originating from plastics. The aluminium thumb screw allows for easy opening and secure closing of the lid. Available with 4 different colours thumb screw to identify different samples. Dimensions are Ø14 x 11mm.
Product # Unit Price* Add to Quote / Order
28-002004-M EM-Tec FA-4 FIB lift-out grid box for 4 grids with blue coloured thumb screw
Qty:

each €15,75
28-002004-R EM-Tec FA-4 FIB lift-out grid box for 4 grids with red coloured thumb screw
Qty:

each €15,75
28-002004-S EM-Tec FA-4 FIB lift-out grid box for 4 grids with black coloured thumb screw
Qty:

each €15,75
28-002004-Y EM-Tec FA-4 FIB lift-out grid box for 4 grids with gold coloured thumb screw
Qty:

each €15,75


EM-Tec FSB100S FIB lift-out grid storage box with single clip
EM-Tec FSB100S FIB lift-out grid storage box with single clip The EM-Tec FSB-100S FIB lift-out grid storage boxes consist of an anti-static tray to hold up to 100 FIB lift-out grids or 100 standard 3.05mm TEM grids. The grids are to be stored flat in the tray. The tray is made from anti-static black conductive polypropylene. Complete with a clear polystyrene cover to enable easy location of the grids.
The grids are stored in a 10x10 individual storage compartments array with a flat on one corner as a reference. The tray and cover are held together with a single piece slide-on PE clip which holds the cover on two sides. Dimensions are 51 x 55 x 11mm; stackable design with ridges and grooves.
Product # Unit Price* Add to Quote / Order
28-002100 EM-Tec FSB100S FIB lift-out grid storage box with single clip
Qty:

each €7,50
Quantity discount: 10 or more: €7,10 each


EM-Tec FSB100D FIB lift-out grid storage box with pair of band clips
EM-Tec FSB100D FIB lift-out grid storage box with pair of band clips The EM-Tec FSB-100D FIB lift-out grid storage boxes consist of an anti-static tray to hold up to 100 FIB lift-out grids or 100 standard 3.05mm TEM grids. The grids are to be stored flat in the tray. The tray is made from anti-static black conductive polypropylene. Complete with a clear polystyrene cover to enable easy location of the grids.
The grids are stored in a 10x10 individual storage compartments array with a flat on one corner as a reference. The tray and cover are held together with a pair of PE band clips which assets more pressure in the centre of the cover to reduce the possibility of a gap. Preferred for transport and shipping. Dimensions are 51 x 55 x 11mm.
Product # Unit Price* Add to Quote / Order
28-002200 EM-Tec FSB100D FIB lift-out grid storage box with pair of band clips
Qty:

each €7,75
Quantity discount: 10 or more: €7,30 each
