EM-Tec gripping stub and stub based vise holders


Introduction

The EM-Tec gripping stub and stub based vise holders are useful to grip and hold SEM samples without much need for sample preparation. Ideal for cross-section and edge-on imaging. The comprehensive selection of this type of cost-effective gripping and vise type holders is compatible with  SEMs using pin stubs (FEI, Zeiss, Tescan, Phenom, Aspex), SEMs using M4 thread (Hitachi and EM-Tec SEM stage adapters) and JEOL SEMs.


Overview of the EM-Tec gripping stub and stub based vise holders



EM-Tec pin stub compatible gripping stub and stub based vise holders:



EM-Tec gripping stub and stub based vise holders with M4 thread:



EM-Tec JEOL stub based vise holders:



Capacity and dimensions of the EM-Tec gripping stub and stub based vise holders

Product #

Type

Capacity

Dimensions w/o pin

Securing methode

SEM stage compatibility

12-000234

EM-Tec GS24

24x7x4mm

24x13x12mm

Screw + plate

Standard 3.2mm pin

10-002240

EM-Tec PS4

0-4mm

Ø12.7x7.2mm

Set screw

Standard 3.2mm pin

10-002244

EM-Tec PS44

4 x 0-4mm

Ø25.4x7.2mm

4 x Set screw

Standard 3.2mm pin

12-002209

EM-Tec PV5

0-5mm

Ø12.2x17mm

Vise jaws

Standard 3.2mm pin

10-002218

EM-Tec PS6

0-6mm

Ø12.7x7.2mm

Mini vise jaws

Standard 3.2mm pin

12-000230

EM-Tec PS9

0-8mm

Ø15x10mm

Mini vise jaws

Standard 3.2mm pin

10-002242

EM-Tec PS7

2x1mm

Ø15x6mm

Set screw

Standard 3.2mm pin

12-000112

EM-Tec PS12

0-12mm

Ø25x7.2mm

Set screw

Standard 3.2mm pin

10-002223

EM-Tec PS23

2 x 2.5mm

Ø25x7.2mm

Set screw

Standard 3.2mm pin

10-002227

EM-Tec PS27

2 x 7mm

Ø25x7.2mm

Set screw

Standard 3.2mm pin

12-000334

EM-Tec GS24

24x7x4mm

24x13x12mm

Screw + plate

M4 thread

12-003209

EM-Tec HV5

0-5mm

Ø12.2x17mm

Vise jaws

M4 thread

12-000306

EM-Tec HS6

0-6mm

Ø15x10mm

Set screw

M4 thread

12-000330

EM-Tec HS9

0-8mm

Ø15x10mm

Mini vise jaws

M4 thread

12-000315

EM-Tec HS15

0-16mm

Ø25x10mm

Set screw

M4 thread

12-000328

EM-Tec HS7

2x1mm

Ø15x6mm

Set screw

M4 thread

12-000504

EM-Tec JS4

0-4mm

Ø12.2x10mm

Set screw

JEOL 12.2mm

12-000509

EM-Tec JV5

0-5mm

Ø12.2x17mm

Vise jaws

JEOL 12.2mm

12-000512

EM-Tec JS12

0-12mm

Ø25x10mm

Set screw

JEOL 25mm



Ordering Information for EM-Tec gripping stub and stub based vise holders for SEMs using pin stubs; TFS, FEI, Philips, Zeiss, LEO Tescan, AmRay, Pemtron, Coxem, Aspex, RJLee, Cambridge Instruments, Leica, and CamScan

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

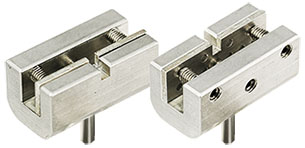

EM-Tec GS24 gripping stub holder with clamping plate, 0-4mm, aluminium, pin EM-Tec GS24 gripping stub holder with clamping plate, 0-4mm, aluminium, pin
Product # Unit Price* Add to Quote / Order
12-000234 each €29,50
Qty:



EM-Tec PS4 mini pin stub vise clamp 0-4mm, Ø12.7x7.2mm, pin EM-Tec PS4 mini pin stub vise clamp 0-4mm, Ø12.7x7.2mm, pin
Product # Unit Price* Add to Quote / Order
10-002240 each €7,50
Qty:

10-002240-10 pkg/10 €71,25
Qty:



EM-Tec PV5 mini vise sample clamp, pin EM-Tec PV5 mini vise sample clamp, pin
Product # Unit Price* Add to Quote / Order
12-002209 each €39,50
Qty:



EM-Tec PS6 mini split pin stub vise clamp 0-6mm, Ø12.7x7.2mm, pin EM-Tec PS6 mini split pin stub vise clamp 0-6mm, Ø12.7x7.2mm, pin
Product # Unit Price* Add to Quote / Order
10-002218 each €24,50
Qty:

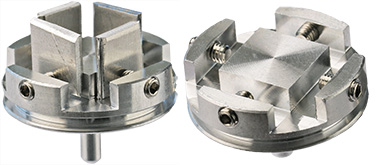

EM-Tec PS44 quad vise stub holder for 4 samples from 0-4mm, pin EM-Tec PS44 quad vise stub holder for 4 samples from 0-4mm, pin
Product # Unit Price* Add to Quote / Order
10-002244 each €29,50
Qty:



EM-Tec PS7 mini pin stub dual slot vise clamp, 2x1mm, Ø15x6mm, pin EM-Tec PS7 mini pin stub dual slot vise clamp, 2x1mm, Ø15x6mm, pin
Product # Unit Price* Add to Quote / Order
10-002242 each €19,50
Qty:



EM-Tec PS12 pin stub vise clamp 0-12mm, Ø25x7.2mm, pin EM-Tec PS12 pin stub vise clamp 0-12mm, Ø25x7.2mm, pin
Product # Unit Price* Add to Quote / Order
12-000112 each €24,50
Qty:



EM-Tec PS9 mini split mount vise 0 - 8mm, pin EM-Tec PS9 mini split mount vise 0 - 8mm, pin
Product # Unit Price* Add to Quote / Order
12-000230 each €26,50
Qty:



EM-Tec PS23 pin stub dual slot vise clamp, 2x2.5mm on Ø25x7.2mm pin stub EM-Tec PS23 pin stub dual slot vise clamp, 2x2.5mm on Ø25x7.2mm pin stub
Product # Unit Price* Add to Quote / Order
10-002223 each €24,50
Qty:



EM-Tec PS27 pin stub dual slot vise clamp, 2x7mm on Ø25x7.2mm pin stub EM-Tec PS27 pin stub dual slot vise clamp, 2x7mm on Ø25x7.2mm pin stub
Product # Unit Price* Add to Quote / Order
10-002227 each €24,50
Qty:



Ordering information for the EM-Tec gripping stub and stub based vise holders compatible with Hitachi SEMs and the versatile EM-Tec stage SEM stage adapters

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

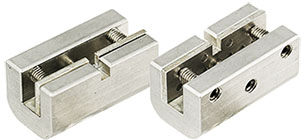

EM-Tec GS24 gripping stub holder with clamping plate, 0-4mm, aluminium, M4 EM-Tec GS24 gripping stub holder with clamping plate, 0-4mm, aluminium, M4
Product # Unit Price* Add to Quote / Order
12-000334 each €27,50
Qty:



EM-Tec HS6 mini M4 cylinder stub vise clamp 0-6mm, Ø15x10mm, M4 EM-Tec HS6 mini M4 cylinder stub vise clamp 0-6mm, Ø15x10mm, M4
Product # Unit Price* Add to Quote / Order
12-000306 each €18,50
Qty:



EM-Tec HS15 M4 cylinder stub vise clamp 0-16mm, Ø25x10mm, M4 EM-Tec HS15 M4 cylinder stub vise clamp 0-16mm, Ø25x10mm, M4
Product # Unit Price* Add to Quote / Order
12-000315 each €24,50
Qty:



EM-Tec HV5 mini vise sample clamp, M4 EM-Tec HV5 mini vise sample clamp, M4
Product # Unit Price* Add to Quote / Order
12-003209 each €38,50
Qty:



EM-Tec HS7 mini M4 cylinder stub dual slot vise clamp, 2x1mm, Ø15x6mm, M4 EM-Tec HS7 mini M4 cylinder stub dual slot vise clamp, 2x1mm, Ø15x6mm, M4
Product # Unit Price* Add to Quote / Order
12-000328 each €19,50
Qty:



EM-Tec HS9 mini split mount vise 0 - 8mm, M4 EM-Tec HS9 mini split mount vise 0 - 8mm, M4
Product # Unit Price* Add to Quote / Order
12-000330 each €25,50
Qty:



Ordering Information for the EM-Tec JEOL vise stubs

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec JS4 mini cylinder stub vise clamp 0-4mm, JEOL  Ø12.2x10mm EM-Tec JS4 mini cylinder stub vise clamp 0-4mm, JEOL Ø12.2x10mm
Product # Unit Price* Add to Quote / Order
12-000504 each €18,50
Qty:



EM-Tec JS12 cylinder stub vise clamp 0-12mm, JEOL  Ø25x10mm EM-Tec JS12 cylinder stub vise clamp 0-12mm, JEOL Ø25x10mm
Product # Unit Price* Add to Quote / Order
12-000512 each €24,50
Qty:



EM-Tec JV5 mini vise sample clamp, JEOL Ø12.2mm stub base EM-Tec JV5 mini vise sample clamp, JEOL Ø12.2mm stub base
Product # Unit Price* Add to Quote / Order
12-000509 each €39,50
Qty:
