EM-Tec variable tilt and pre-tilt angle holders

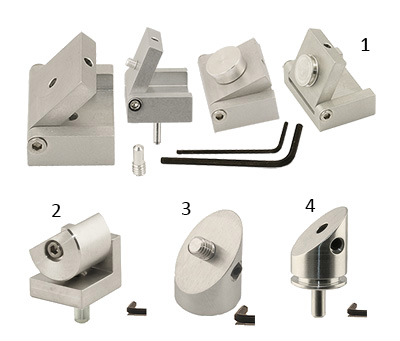

                                            A few examples
EM-Tec variable tilt and pre-tilt angle holders from Micro to Nano

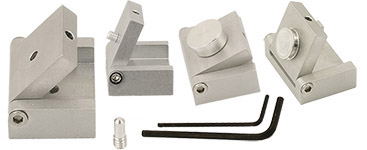

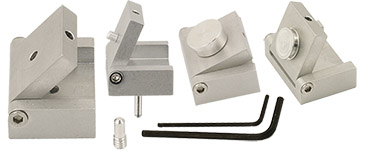

1- EM-Tec TV25 larger variable tilt holder allows 0-90° angle for
sample stubs or sample holders up Ø38mm.  Larger stubs can
be mounted, but tilting can be limited, depending on the SEM used.
Compatible with both pin or Hitachi M4 threaded stubs or holders.
Available with pin stub (#12-000248) or M4 thread (#12-000348)

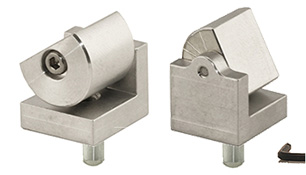

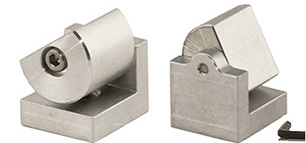

2- EM-Tec TV12 mini variable tilt mount allows 0-90° angle
in a small sample mount; available with pin stub (#12-000241)
or M4 thread (#12-000347). The sample need to be mounted
on the tilting platform of this compact holder. Side engravings
on the tilting platform assist in setting the desired tilt angle

3- EM-Tec H45 fixed 45° pre-tilt holder for Hitachi M4 stubs/holders,
Ø12.7x17mm, M4 (#12-000341)

4- EM-Tec P38 fixed 36°pre-tilt holder for FEI FIB systems,
Ø12.7x17mm, pin (#12-002238)




Introduction

The EM-Tec variable tilt and pre-tilt holders are useful for imaging samples under a pre-tilt angle without having to tilt the SEM stage. With these holders you can image previously mounted samples on standard pin stubs or Hitachi stubs at pre-set angles or any chosen angle. The tilt holders are particularly useful for table top SEMs without sample tilting facilities or for standard SEMs where high tilt would interfere with the polepiece or with detectors in the chamber. Sometimes, the pre-tilt holders are used to get full tilting from the SEM stage; with a pre-tilt 45°  holder, the SEM stage only needs to be tilted another 45° to get a full 90°  sample tilt.
The available EM-Tec tilt holders are:

  • EM-Tec TV12 mini variable tilt mount allows 0-90° angle in a small sample mount; available with pin stub (#12-000241) or M4 thread (#12-000347) . The sample need to be mounted on the tilting platform of this compact holder. Side engravings on the tilting platform assist in setting the desired tilt angle. Side engravings at 0, 30, 45, 70 and 90 degrees.
  • EM-Tec TV25 larger variable tilt holder allows 0-90° angle for sample stubs or sample holders up Ø38mm.  Larger stubs can be mounted, but tilting can be limited, depending on the SEM used. Compatible with both pin or Hitachi M4 threaded stubs or holders. Available with pin stub (#12-000248) or M4 thread
    (#12-000348)

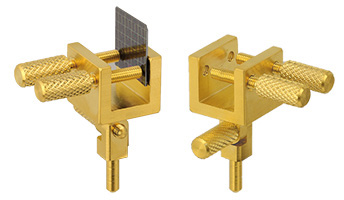

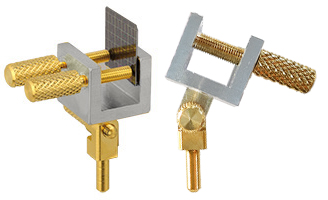

  • EM-Tec GS10(#12-000110) – A swivel vise which covers a full 180 angle and can also be rotated with the stub. This is the ultimate holder for imaging cross sections at any desired angle.  The swivel head size without clamping screws is only 16x16x14mm. The sample is clamped with the two clamping screws; the swivel head can be locked in place with the tilt clamping screw. Made from gold plated brass.
  • EM-Tec PS15(#12-000211) swivel pin stub mount. The head of the mount is attached to the pin via a swivel hinge which allows for 90 degrees tilting each way. Excellent mount for SEMs without tilting facilities or when random tilt angled are needed. When the desired tilt angle is set, the top is secured with a socket cap screw. Top diameter is 15mm and height above pin is 15mm.
  • EM-Tec P36 (#10-002236) fixed angle 36° tilt holder for Zeiss pin stubs. Used to pre-tilt samples 36° for Zeiss CrossBeam  FIB systems.
  • EM-Tec P38 (#10-002238) fixed 38° tilt holder for FEI pin stubs. Used to pre-tilt samples 38° for FEI Dual Beam FIB systems.
  • EM-Tec P45 (#10-002245) most popular  45° pre-tilt holder with pin for standard and Zeiss pin stubs.
  • EM-Tec P45M (#10-002246) popular 45° tilt holder with pin for Hitachi M4 stubs or M4 threaded holders.
  • EM-Tec H45P (#12-000345) popular 45° tilt holder with M4 for standard and Zeiss pin stubs.
  • EM-Tec H45 (#12-000346) popular 45° tilt holder with M4 for Hitachi M4 stubs or M4 threaded holders.
  • EM-Tec P70 (#10-002270) fixed 70° EBSD tilt holder with pin for pin stubs and pin stub type sample holders.
  • EM-Tec P70M (#10-002274) fixed 70° EBSD tilt holder with pin for Hitachi M4 stubs and M4 threaded holders.
  • EM-Tec H70P (#12-000370) fixed 70° EBSD tilt holder with M4 for pin stubs and pin stub type sample holders.
  • EM-Tec H70 fixed 70° (#12-000371)EBSD tilt holder with M4 for Hitachi M4 stubs and M4 threaded holders.
  • EM-Tec 45° multiple pin stub holders can be found on: EM-Tec multiple pin stub holders
  • EM-Tec 45° multiple M4 stub holder can be found on:EM-Tec multiple Hitachi M4 stub holders

All the holders are precision machined from vacuum grade aluminium and include set screws and allen key.
For using the pre-tilt and variable tilt holders on JEOL SEMs, you can find the JEOL pin stub and JEOL M4 on the EM-Tec SEM stub adapters page .


Capacity, size and compatibility of the EM-Tec pre-tilt and variable tilt holders:

Product #

Style

Tilt angle

Dimensions w/o pin

Stub compatibility

Stage compatibility

12-000241

TV12

0-90°

14x14x14/20mm

n.a.

3.2mm pin stub

12-000347

TV12

0-90°

14x14x14/20mm

n.a.

M4 Thread

12-000248

TV25

0-90°

35x25x10.5/29.5mm

Pin stub / Hitachi M4

3.2mm pin stub

12-000348

TV25

0-90°

35x25x10.5/29.5mm

Hitachi M4 / pin stub

M4 Thread

12-000110

GS10

-90°-0-90°

28x16x27mm

n.a. Clamp sample

3.2mm pin stub

12-000211

PS15

-90°-0-90°

Ø15x15mm

n.a. Mount Sample

3.2mm pin stub

10-002236

P36

36° (Zeiss FIB)

Ø12.7x17mm

3.2mm pin stub

3.2mm pin stub

10-002238

P38

38° (FEI FIB)

Ø12.7x17mm

3.2mm pin stub

3.2mm pin stub

10-002245

P45

45°

Ø12.7x17mm

3.2mm pin stub

3.2mm pin stub

10-002246

P45M

45°

Ø12.7x17mm

Hitachi M4 thread

3.2mm pin stub

12-000345

H45P

45°

Ø12.7x17mm

3.2mm pin stub

M4 thread

12-000341

H45

45°

Ø12.7x17mm

Hitachi M4 thread

M4 thread

10-002270

P70

70° EBSD

Ø12.7x20mm

3.2mm pin stub

3.2mm pin stub

10-002274

P70M

70° EBSD

Ø12.7x20mm

Hitachi M4 thread

3.2mm pin stub

12-000370

H70P

70° EBSD

Ø12.7x20mm

3.2mm pin stub

M4 thread

12-000371

H70

70° EBSD

Ø12.7x20mm

Hitachi M4 thread

M4 thread



Ordering Information for EM-Tec variable tilt and pre-tilt holders for SEMs using pin stubs; TFS, FEI, Philips, Tescan, Phenom, Aspex, RJLee, AmRay, Cambridge Instruments, Leica and CamScan SEMs

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec PS15 Pin stub swivel mount, Ø15x15mm, pin EM-Tec PS15 Pin stub swivel mount, Ø15x15mm, pin
Product # Unit Price* Add to Quote / Order
12-000211 each €38,50
Qty:



EM-Tec TV12 mini variable 0-90° angle tilt sample holder 11x12mm, angle indicators at 0, 30, 45, 70 and 90 degrees, pin EM-Tec TV12 mini variable 0-90° angle tilt sample holder 11x12mm, angle indicators at 0, 30, 45, 70 and 90 degrees, pin
Product # Unit Price* Add to Quote / Order
12-000241 each €59,50
Qty:



EM-Tec TV25 variable 0-90° angle tilt holder for stubs up Ø38mm, pin EM-Tec TV25 variable 0-90° angle tilt holder for stubs up Ø38mm, pin
Product # Unit Price* Add to Quote / Order
12-000248 each €157,50
Qty:



EM-Tec P36 fixed 36°pre-tilt holder for Zeiss FIB systems, Ø12.7x17mm, pin EM-Tec P36 fixed 36°pre-tilt holder for Zeiss FIB systems, Ø12.7x17mm, pin
Product # Unit Price* Add to Quote / Order
10-002236 each €39,50
Qty:



EM-Tec P38 fixed 38°pre-tilt holder for TFS / FEI FIB systems, Ø12.7x17mm, pin EM-Tec P38 fixed 38°pre-tilt holder for TFS / FEI FIB systems, Ø12.7x17mm, pin
Product # Unit Price* Add to Quote / Order
10-002238 each €39,50
Qty:



EM-Tec P45 fixed 45° pre-tilt holder for pin stubs/holders, Ø12.7x17mm, pin EM-Tec P45 fixed 45° pre-tilt holder for pin stubs/holders, Ø12.7x17mm, pin
Product # Unit Price* Add to Quote / Order
10-002245 each €39,50
Qty:



EM-Tec P45M fixed 45° pre-tilt holder for Hitachi M4 stubs/holders, Ø12.7x17mm, pin EM-Tec P45M fixed 45° pre-tilt holder for Hitachi M4 stubs/holders, Ø12.7x17mm, pin
Product # Unit Price* Add to Quote / Order
10-002246 each €39,50
Qty:



EM-Tec GS10 swivel head sample holder for up to 10mm, gold plated brass, pin EM-Tec GS10 swivel head sample holder for up to 10mm, gold plated brass, pin
Product # Unit Price* Add to Quote / Order
12-000110 each €95,00
Qty:



EM-Tec P70 EBSD 70° / 20° pre-tilt holder for pin stubs/holders, 12.5x12.5x20mm, pin EM-Tec P70 EBSD 70° / 20° pre-tilt holder for pin stubs/holders, 12.5x12.5x20mm, pin
Product # Unit Price* Add to Quote / Order
10-002270 each €44,50
Qty:



EM-Tec P70M EBSD 70° pre-tilt holder for Hitachi M4 stubs/holders, Ø12.7x20mm, pin EM-Tec P70M EBSD 70° pre-tilt holder for Hitachi M4 stubs/holders, Ø12.7x20mm, pin
Product # Unit Price* Add to Quote / Order
10-002274 each €44,50
Qty:



Ordering Information for EM-Tec variable tilt and pre-tilt holders for Hitachi SEMs and the versatile EM-Tec SEM stage adapters

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec TV12 mini variable 0-90° angle tilt sample holder 11x12mm, angle indicators at 0, 30, 45, 70 and 90 degrees, M4 EM-Tec TV12 mini variable 0-90° angle tilt sample holder 11x12mm, angle indicators at 0, 30, 45, 70 and 90 degrees, M4
Product # Unit Price* Add to Quote / Order
12-000347 each €57,00
Qty:



EM-Tec TV25 variable 0-90° angle tilt holder for stubs up Ø38mm, M4 EM-Tec TV25 variable 0-90° angle tilt holder for stubs up Ø38mm, M4
Product # Unit Price* Add to Quote / Order
12-000348 each €155,00
Qty:



EM-Tec H45P fixed 45° pre-tilt holder for pin stubs/holders, Ø12.7x17mm, M4 EM-Tec H45P fixed 45° pre-tilt holder for pin stubs/holders, Ø12.7x17mm, M4
Product # Unit Price* Add to Quote / Order
12-000345 each €39,50
Qty:



EM-Tec H45 fixed 45° pre-tilt holder for Hitachi M4 stubs/holders, Ø12.7x17mm, M4 EM-Tec H45 fixed 45° pre-tilt holder for Hitachi M4 stubs/holders, Ø12.7x17mm, M4
Product # Unit Price* Add to Quote / Order
12-000341 each €39,50
Qty:



EM-Tec H70P EBSD 70° / 20° pre-tilt holder for pin stubs/holders, 12.5x12.5x20mm, M4 EM-Tec H70P EBSD 70° / 20° pre-tilt holder for pin stubs/holders, 12.5x12.5x20mm, M4
Product # Unit Price* Add to Quote / Order
12-000370 each €44,50
Qty:



EM-Tec H70 EBSD 70° / 20° pre-tilt holder for Hitachi M4 stubs/holders, 12.5x12.5x20mm, M4 EM-Tec H70 EBSD 70° / 20° pre-tilt holder for Hitachi M4 stubs/holders, 12.5x12.5x20mm, M4
Product # Unit Price* Add to Quote / Order
12-000371 each €44,50
Qty:
