EM-Tec G0, G1, G2 &G4 geological thin section and slide holders with S-clips

EM-Tec G0, G1, G2 &G4 geological thin section and slide holders with S-clips

Products
12-000260 EM-Tec G0 universal thin section slide holder for up to 75x50mm slides, pin
12-000360 EM-Tec G0 universal thin section slide holder for up to 75x50mm slides, M4
12-000261 EM-Tec G1 single geological thin section holder for up to 47x27mm, pin
12-000361 EM-Tec G1 single geological thin section holder for up to 47x27mm, M4
12-000262 EM-Tec G2 twin geological thin sections holder for up to 47x27mm, pin
12-000362 EM-Tec G2 twin geological thin sections holder for up to 47x27mm, M4
12-000264 EM-Tec G4 four geological thin sections holder for up to 47x27mm, pin
12-000364 EM-Tec G4 four geological thin sections holder for up to 47x27mm, M4

Description

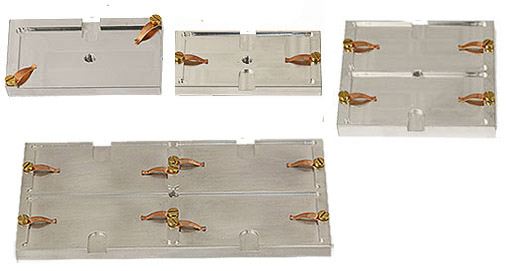

The EM-Tec G0, G1, G2 and G4 geological thin section holders are designed to hold geological thin sections or petrographic slides. The EM-Tec G0 holders have two open sides and can hold slides up 75 x 50mm. The EM-Tec G1, G2 and G4 holders all include pockets which are designed to hold slides up to 47 x 27mm. The slides are held with two S-Clips to push the slide down on the holder plate; thin slide are secured in the pockets. Loading and unloading is made easy with side grooves to facilitate tweezers tips.

Operation
Consider wearing gloves and using tweezers to avoid contamination. Before loading a petrographic slide, turn the S-Clips away from the sample area and let them rest on the side. Load the petrographic slide and check that it fits into the pocket. Position the S-clips back over the slide to push down the slide. To make rotating the S-Clips easier, it might be needed to unscrew the brass screw halve a turn. The S-Clips can be lifted at the tips with tweezers. Only position the S-Clips over an unused area of the slide. To ensure conductivity, position the clips on a coated area.

Specifications

Geological slide capacity G0: 1 up to 75 x 50mm
Geological slide capacity G1: 1 up to 47 x 27mm
Geological slide capacity G2: 2 up to 47 x 27mm
Geological slide capacity G4: 4 up to 47 x 27mm
Dimensions G0: 52 x 32 x 7mm
Dimensions G1: 56 x 30 x 7mm
Dimensions G2: 58 x 56 x 7mm
Dimensions G4: 107 x 58 x 7mm
SEM stage compatibility   - standard pin:  #12-000260,12-000261, 12-000262 & 12-000264
                                              - EM-Tec stage adapters M4
#12-000360,12-000361, 12-000362 & 12-000364
                                              - Hitachi M4  #12-000360,12-000361, 12-000362 & 12-000364
Material for holder plate: Vacuum grade aluminium
Material for S-Clips:

Beryllium copper

Material for srews:   Brass


Maintenance
The EM-Tec RG2 and RG4 geological thin sections top reference holders are maintenance free. Occasional adjustment of the springs might be needed. Do not use oil or grease on spring; this will cause contamination in the SEM.



TSB 12-000260 EM-Tec geological thin section and slide holders with S-clips, Revision 1
